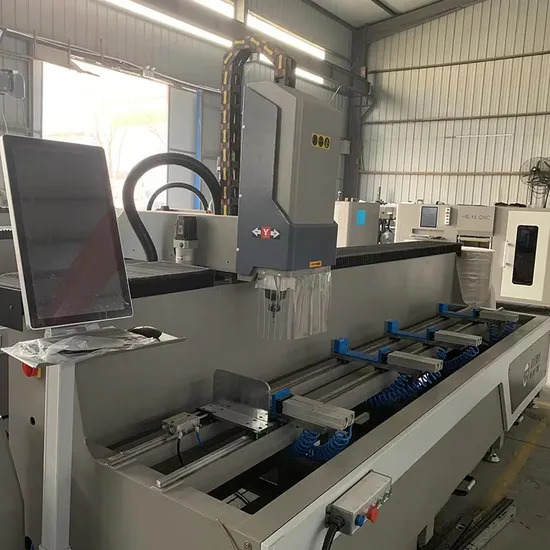

CNC Double Head Drilling Milling Machine for Window and Door

Product Description

Key attributes
Equipment attributes

Equipment name	Double Head CNC Drilling Milling Machine
Model	WSZ2-CNC-3000

Technical Parameter

Power supply	380V/50Hz
Total Power	11KW
Electric spindle power	4.5KW*1;3.5KW*1
Max rotary speed	18000r/min
X-axis stroke	3000mm
Y-axis stroke	400mm
Z-axis stroke	300mm
X-axis speed	60m/min
Y-axis and Z-axis speed	40m/min
Working pressure	0.5~0.8MPa
Processing range(W*H)	100*130mm
Dimensions	4270*1800*2300mm
Warranty	1 year

Lead time

Quantity(sets)	1-1	>1
Lead time(days)	20	To be negotiated

Customization

Customized logo	Min. order: 1 set
Customized packaging Graphic customization	Min. order: 1 set Min. order: 1 set
For more customization details,message supplier

Certifications
WEIKE CNC Aluminum Profile Drilling Milling Machine is suitable for processing industrial aluminum alloy profiles, including circular holes, slot holes, lock holes, irregular holes, milling, chamfering, and other processes for door and window aluminum alloy profiles, as well as curtain wall aluminum alloy profiles. The worktable can be flipped from -90° to +90°, allowing three-sided processing with a single clamping of the profile, enhances processing efficiency and drilling quality. * The system adopts CNC numerical control, equipped with a professional graphics library and profile library, supporting barcode processing and CAD graphic import processing. It is easy to operate and highly efficient.
* The X-axis, Y-axis, and Z-axis utilize rack and pinion drive, ensuring smooth transmission and high precision.
* The worktable can be flipped from -90° to +90°, allowing three-sided processing with a single clamping of the profile, enhances processing efficiency and drilling quality.
* The machine employs two electric spindle, characterized by high precision, high power, excellent safety, and high reliability.
* 3-axis full-servo motors, truly achieving three-axis linkage, ensuring efficient and stable processing.

Specification

Model	WSZ2-CNC-3000
Power supply	380V/50Hz
Total Power	11KW
Electric spindle power	4.5KW*1;3.5KW*1
Max rotary speed	18000r/min
X-axis stroke	3000mm
Y-axis stroke	400mm
Z-axis stroke	300mm
X-axis speed	60m/min
Y-axis and Z-axis speed	40m/min
Working pressure	0.5~0.8MPa
Processing range(W*H)	100*130mm
Dimensions	4270*1800*2300mm
Control System	CNC

Wide range of processing types
Suitable for processing industrial aluminum alloy profiles, including circular holes, slot holes, lock holes, irregular holes, milling, chamfering, and other processes for door and window aluminum alloy profiles, as well as curtain wall aluminum alloy profiles.
3-sided flipping workbench
The worktable can be flipped from -90° to +90°, allowing three-sided processing with a single clamping of the profile, enhances processing efficiency and drilling quality.
CNC control system
Equipped with a professional graphics library and profile library, supporting barcode processing and CAD graphic import processing. It is easy to operate and highly efficient
3-axis full-servo motors
Truly achieving three-axis linkage, ensuring efficient and stable processing.
Certifications

Factory Introduction

Shandong Weike CNC Machinery Co.,Ltd.is a well-known manufacturer specializing in the research, development, production and sales of aluminum doors, windows and curtain wall equipment in China. It's the most large-scale and industrialized production enterprise in the industry.
We have large production workshop and strong mechanical processing supporting capabilities, high-quality scientific research team and high-tech production team. We have strong research and development strength, perfect product system, and insists on independent innovation, improve products scientific and practical continuously. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales and service.

Packing & Delivery

Packaging Details 1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port

FAQ

Q:How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q:How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q:What customized services you provided?
A: WEIKE CNC is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
Q:Are WEIKE CNC machines user-friendly?
A:Yes, our machines are designed with user-friendliness in mind. They come with intuitive software interfaces that are easy to learn and operate. We also provide comprehensive training and technical support to ensure our customers can make the most out of their machines
