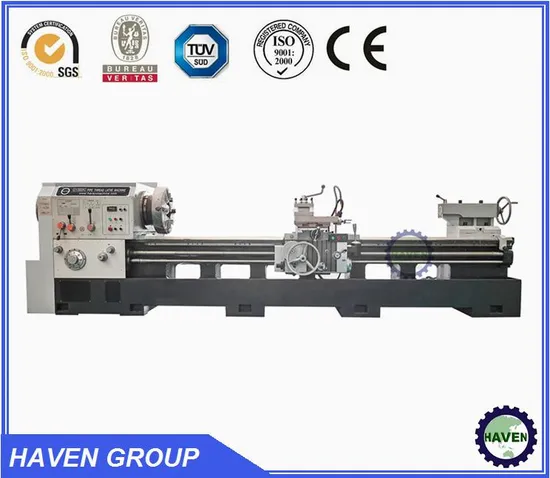

Pipe Threading Machine Q1313/1500
| US$1.00-99,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Q1313/1500
Tool Holder
manual type
Power Source
Electric
Controlling Mode
manual type
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max dia Swing Over Bed
630mm
Max dia swing over cross slide
340mm
Spindle Bore Dia
130mm
Max length of workpiece
1500mm
Transport Package
Plastic Covering
Specification
Q1313/1500
Trademark
HAVEN
Origin
China
HS Code
8464
Production Capacity
100units/Year
Product Description
Pipe Threading Machine Q1313/1500Main features:
Oil Pipe Threading Lathe is a horizontal lathe designed for turning large-diameter pipe fittings. It has all the functions of ordinary lathes, and is professionally used for the processing of large-diameter pipes and rods. It is widely used in machinery manufacturing, petroleum, chemical industry, Coal, geological exploration, urban water supply and drainage and other industries of mechanical processing operations; The lathe is equipped with large spindle through-hole, double chucks taper turning device. This machine can process a variety of internal and external threads, including metric, imperial, taper threads, etc., can also be used for the machining of cylindrical, inner holes and end faces of shaft and disc parts.
Main specification:
| Type | Unit | Q1313 | Q1322 | Q1327 | Q1332 |
| Max. dia. swing over bed | mm | 630/800 | 630/800 | 1000 | 1000 |
| Max. dia. swing over croos slide | mm | 340/550 | 350 | 610 | 610 |
| Spindle bore | mm | 200 | 225 | 280 | 330 |
| Range of machining pipe thread | mm | 50-190 | 50-220 | 130-270 | 190-320 |
| Max. length of work piece | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
| Max. tapper of work piece | 1:4 | 1:4 | 1:4 | 1:4 | |
| Max. traverse of tapper device | mm | 750 | 750 | 1000 | 1000 |
| Width of bed | mm | 490/550 | 550 | 755 | 755 |
| Power of spindle motor | Kw | 7.5 | 11 | 22 | 22 |
| Number and Range of crosswise feeds | r/min | 22kinds/0.02-0.45 | 32kinds/0.04-0.65 | 40kinds/0.05-1.5 | 32kinds/0.05-0.75 |
| Number and range of spindle speed | r/min | 12steps/24-300 | 12steps/20-460 | 12steps/16-380 | 9steps/7.5-280 |
| Number and range of Lengthways feeds | mm | 26kinds/0.07-1.33 | 32kinds/0.1-1.46 | 40kinds/0.1-3 | 32kinds/0.1-1.5 |
| Number and range of metric thread | mm | 24kinds/1-14 | 21kinds/1-15 | 30kinds/1-30 | 23kinds/1-15 |
| Number and range of inch thread | teeth/inch | 40kinds/2-28 | 26kinds/1-14 | 27kinds/1-28 | 22kinds/2-28 |
| Screw pitch | inch | 1/2 | 1/2 | 1/2 | 1/2 |
| Saddle rapid traverse | mm/min | 4000 | 2500 | 3740 | 3740 |
| Cross slide rapid traverse | mm/min | 2300 | 2000 | 1870 | 1870 |
| Max. traverse of saddle | mm | 1310,2810 | 1110 | 1500 | 1500 |
| Max. traverse of cross slide | mm | 390,490 | 360 | 520 | 520 |
| Max. traverse of turret | mm | 200 | 200 | 300 | 300 |
| Size of tool section | mm | 30x30 | 30x30 | 45x45 | 45x45 |
| Max. rotation angle | ° | +/-60° | +/-60° | +/-90° | +/-90° |
| Amount of movement on cross slide dial | mm/scale | 0.05 | 0.05 | 0.05 | 0.05 |
| Amount of movement on turret | mm/scale | 0.05 | 0.05 | 0.05 | 0.05 |
| Dia. And type of tailstock quill | mm/mores | 100/m5# | 100/m5# | 140/m6# | 140/m6# |
| Traverse of tailstock quill | mm | 205 | 250 | 300 | 300 |
| Cross amount of movement of tailstock | mm | +/-15 | +/-15 | +/-25 | +/-25 |
| Overall dimensions (LxWxH) | cm | 365,515x144x139 | 330x145x150 | 460x220x152 | 500x210x160 |
| Net weight | kg | 4440,5290 | 4500 | 10000 | 11500 |
| Chuck | 4-jaw 520 | 4-jaw 520 | 4-jaw 800 | 4-jaw 800 |
