Good Factory Price CZ Channel Steel Metal Cold Roll Forming Machine

Product Description

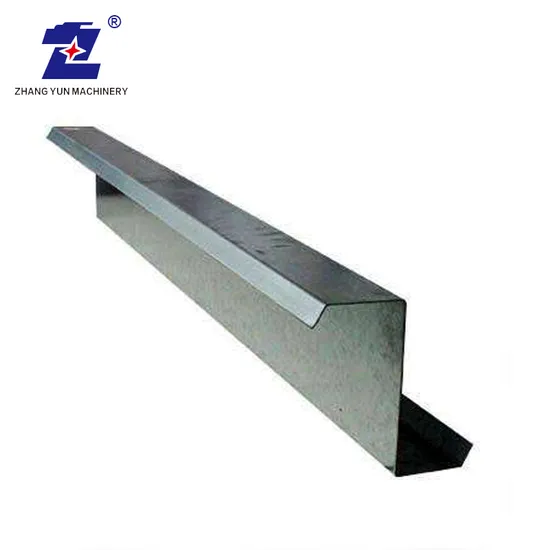

CZ Channel Steel Metal Cold Roll Forming Machine
Technical Specifications:
1. Equipment feeding direction: left into the right out.
2. Voltage parameters 380,50Hz, 3 phase.
3. Gas source: flow rate of 0.5m3 / min; pressure of 0.7MPa.
4. Hydraulic oil: 46 # hydraulic oil.

Technical Paremeters:

Un-coiler	Max Capacity	5T
	Inner diameter of coil	≤508mm
	Type	Manual or Automatic
Main Forming System	Thickness of sheet	2mm
	Material of sheet	GI sheet coil or Colored sheet coil
	Motor Power	11Kw
	Roller material	Cr12
	Surface of Roller	Heat treatment HRC58-60
	Diameter of main shaft	75mm #45 steel, heat treat modulation
	Forming station	12 stations
	Transmission	by chain or gear box
	Measuring accuracy	+/- 0.5 mm/M
	Output	8-10 Tons per shift (8 hrs.)
	Speed	10~20m/min
Hydraulic Cutting Device	Cutting way	Tracking (Flying)
	Oil pump station	1set
	Motor power of Oil pump station	7.5kw with cooling system
	Cutting mould	1 sets
	Material of blade	CR12 with heat treatment HRC60-62
Electrical System		PLC Control
Machine Size		5800x1000x800mm

FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
