API 5dp Drill Pipe for Petroleum Equipments
| US$1,500.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
GPE-D
Certification
API
Power Source
None
Operation Pressure
0
Applicable Medium
Mud, Water, Natural Gas, Crude Oil
Structure
Pipe
Material
S135
Advantage
High Performance
Outer Diameter
2-3/8" ~ 6-5/8"
Usage
Oil & Gas Drilling
Length
R1~R3
Transport Package
Tarpaulin Packaging
Trademark
GPE
Origin
China
HS Code
8431
Production Capacity
150000
Packaging & Delivery
Package Size
900.00cm * 100.00cm * 100.00cm
Package Gross Weight
50.000kg
Product Description

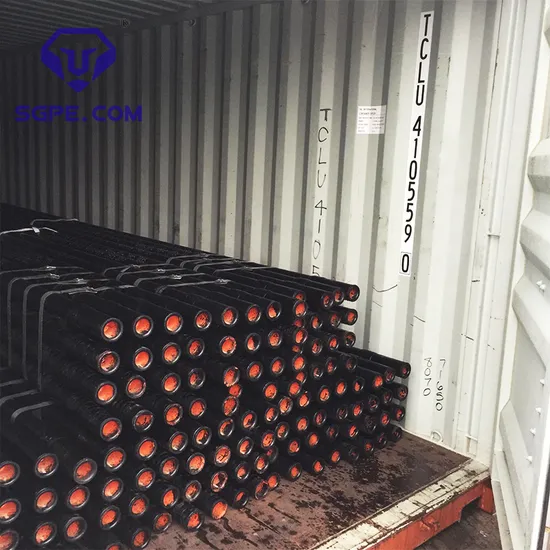

API 5DP drill pipe seamless /drilling pipeAPI 5DP drill pipe seamless /drilling pipe
drill pipe comply with the provisions under the Standards API SPEC 5DP and API SPEC7. The grade of steel for the drill pipe will be determined according to the requirements of Group 1 and Group 3 of API SPEC 5DP.
(i.e.: Group 1--Grade E; Group 3--Grade X-95, Grade -G-105 and Grade -S-135)
As per requirements of customers, drill pipe joints at the same level will be provided, and manufactured drill pipe joints will comply with the provisions under the Standard API SPEC 7.
Welcome to consult, we will provide the most comprehensive technical support!
Detailed information on API 5DP drill pipe seamless /drilling pipe
| Size (in) | Nominal Weight (1b/ft) | OD of Pipe Body | Wall Thickness of Pipe Body | Conn. Type | OD of Pin and Box | ID of Pin | ||||
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | |||
| 2 3/8 | 6.65 | 2 3/8 | 60.32 | 0.28 | 7.11 | NC26 (2 3/8 IF) | 3 3/8 | 85.7 | 1 3/4 | 44.45 |
| 2 7/8 | 10.4 | 2 7/8 | 73.02 | 0.36 | 9.19 | NC31 (2 7/8 IF) | 4 1/8 | 104.8 | 2 | 50.8 |
| 3 1/2 | 13.3 | 3 1/2 | 88.9 | 0.37 | 9.35 | NC38 (3 1/2 IF) | 5 | 127 | 2 7/16 | 61.91 |
| 3 1/2 | 15.5 | 3 1/2 | 88.9 | 0.45 | 11.4 | NC38 (3 1/2 IF) | 5 | 127 | 2 1/8 | 53.98 |
| 4 | 14 | 4 | 101.6 | 0.33 | 8.38 | NC46 (4 IF) | 6 | 154.2 | 3 1/4 | 82.55 |
| 4 1/2 | 16.6 | 4 1/2 | 114.3 | 0.34 | 8.56 | NC40 (4 IF) | 6 1/4 | 158.8 | 3 | 76.2 |
| 5 | 19.5 | 5 | 127 | 0.36 | 9.19 | NC50 (4 1/2 IF) | 6 5/8 | 168.3 | 3 1/4 | 82.55 |
| 5 | 25.6 | 5 | 127 | 0.5 | 12.7 | 5 1/2 FH | 7 1/4 | 184.2 | 3 1/4 | 82.55 |
| 5 1/2 | 21.9 | 5 1/2 | 139.7 | 0.36 | 9.17 | 5 1/2 FH | 7 1/4 | 184.2 | 3 1/2 | 88.9 |
| 5 1/2 | 24.7 | 5 1/2 | 139.7 | 0.42 | 10.54 | 5 1/2 FH | 7 1/4 | 184.2 | 3 1/2 | 88.9 |
| 6 5/8 | 25.2 | 6 5/8 | 168.28 | 0.33 | 8.38 | 6 5/8 FH | 8 1/4 | 209.6 | 4 3/4 | 120.7 |
| 6 5/8 | 27.7 | 6 5/8 | 168.28 | 0.36 | 9.19 | 6 5/8 FH | 8 1/4 | 209.6 | 4 3/4 | 120.7 |
