Hvt-350az Hualian Linear Type Tray Vacuum Packaging Machine for Lunch Food/Vegetable/Meat

Product Description

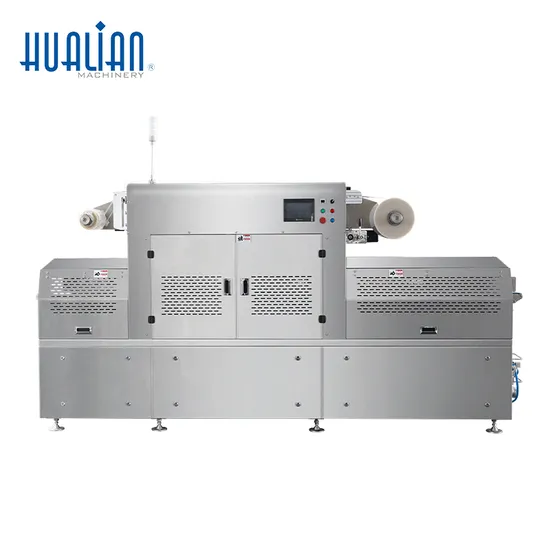

HVT-350AZ Hualian Linear Type Tray Vacuum Packaging Machine
Product Description

Description:
HVT series Automatic Tray Vacuum Gas-flushing Packaging Machine, is a new type of widely-used l packaging machine.
This machine can automatically perform processes of vacuum, gas-flushing, sealing, printing (optional) & film-cutting, featuring high efficiency, good sealing, nice packing appearance & easy operation

Features:

Adopt electricity, gas & mechanism control. The user interface is realized with the touch screen against programmable logic controller (PLC), featuring adjustable process parameters, easy & reliable control and low error rate. With real-time display function for process states & errors, user can follow up the process states to ensure normal operation. Being designed with emergency stop switch, the running machine can be stopped urgently for the human & machine security when abnormal situation occurs. HVT series Semiautomatic Tray Vacuum Gas-flushing Packaging Machine for tray in special size can be customized. Application:
HVT series Automatic Tray Vacuum Gas-flushing Packaging Machine, apply to automatic film-sealing of the tray made of PP, PE material.
The vacuum gas-flushing packed tray (the products height must not exceed the tray height) can prolong the products shelf life while keeping the products to be fresh and preventing the products from moisture & mold, like the variety of fresh products, fast-food & students lunch food in the supermarkets. Suitable tray material & film material
Tray material: PP, PE, PET Film material: PET/CPP, PET/PE, OPP/CPP, EVOH, aluminum foil & other applicable compound film. Parameters:

Model	HVT-350AZ
Voltage (V/Hz)	380/50 3P
Power (W)	9 (exclude vacuum pump)
Working Pressure (MPa)	0.6-0.8(Clean, dry, continuous air source)
Gas Replacement Ratio (%)	Over 99.5
Tray Size (mm) (L×W)	Max. 280X170 (4 trays/cycle) Min. 180X100 (6 trays/cycle)
Max. Tray Height of Standard Machine (mm)	80
Max. Film Width (mm)	350
Max. Film Roll Outer Diameter (mm)	300
Film Roll Inner Core Diameter (mm)	76
Infeed and Out feed Conveyors Height from Floor (mm)	850
Capacity (cycles/min)	4-5 (MAP packing, with 360m3/h vacuum pump)
External Dimension (mm) (L×W×H)	3280X910X1620

Our Market

Why choose us:


Zhejiang Top Export Brand
China packaging industry enterprises TOP100
China packaging machinery industry enterprises TOP30

Quality Control:
1.Each Heat Sealer Impulse Sealer with the Eligible Certification inside package
2.Shipping department checks each item before packing, totally avoiding manufacturing defects.
3.The main products have attained European CE certificat

Research And Development:
1.Obtained the national patent 39 items, invention patent 2 items!
2.Drafting up national standard and industry standard for "Plastic Bag Heating Sealer","Semiautomatic Strapping Machine" and "Skin Packaging Machine".

Marketing:
1.Hualian have more than 200 agent network all over the world
2.The products are sold to more than 100 countries around the world.

FAQ
Q: Are you a factory or a trading company?
A: We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.

Q: How can I pay my order?
A: We accept T/T, Western Union, Online Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.

Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.

Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.

Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.

Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.
