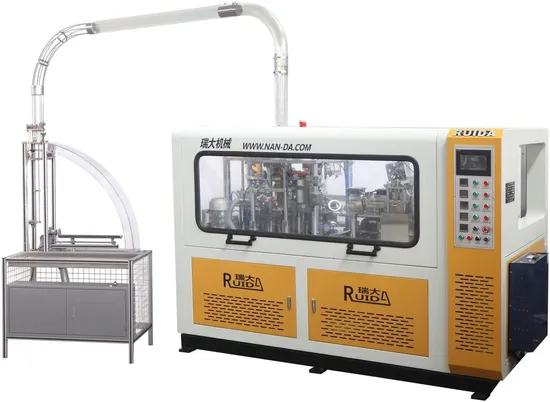

High Speed Automatic Cups Machines Paper Cup Machine 12/22-100A

Product Description

The machine structure below The characteristic of the machine: High speed paper cup forming machine comes with two turnplate, open intermittent cam mechanism and gear transmission, longitudinal axis structures. The cam is made in Korea. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. Bottom sealing by hot air devices, so that the machine is efficient,
the hot air device is imported from Switzerland. The new machine with higher working speed (100pcs/min) than RD-12/22 machine, so there is extra Switzerland Leister hot air device for the side sealing, so side sealing is done by both Hot air and Ultrasonic. Cup side sealing by ultrasonic, Evergreen which is made in Taiwan. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and with better appearance (round and smooth). The machine comes with PLC control system, sensor failure detecting and it stops working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. THE PLC, touch screen, Invertor, temperature controller and sensor is made in Korea. All bearing of the machine is made in Japan (NSK brand), and the vacuum generator is made in Japan (SMC brand). More efficient and higher performance. It is easy to make cups with different sizes by changing moulds. With automatic cup delivery system and counter. The machine dimensions is smaller than RD-12/22 machine, more compact. Technical data: Cup Use: round paper cups, drinking , noodle and vending cups ice-cream and food containers Paper cup size:6-16 OZ(ounce)/ 16OZ-22OZ(ounce) Raw material : 210-380g/m2 Single or Double PE coating paper Output : 90-100pcs/ min. Cup dimensions -Cup Top Diameter : 65mm-92mm
-Cup Height : 60mm-170mm
-Cup Bottom Diameter: 50mm-65mm Electrical requirement : 380V or 220V, 50Hz Electric consumption : 10kw Air consumption: 0.4cbm/min Machine dimensions : 2300mm×1200mm×1800mm Machine Weight : 3000kgs Max top dia:92 min top dia:65
Max bottom dia: 65 min bottom dia:50
Max height: 170 min bottom dia:60
Remarks:Certain cups out of above dimensions range can be made base on order. All hot beverage, cold drink and ice cream cups can be made by this machine.
