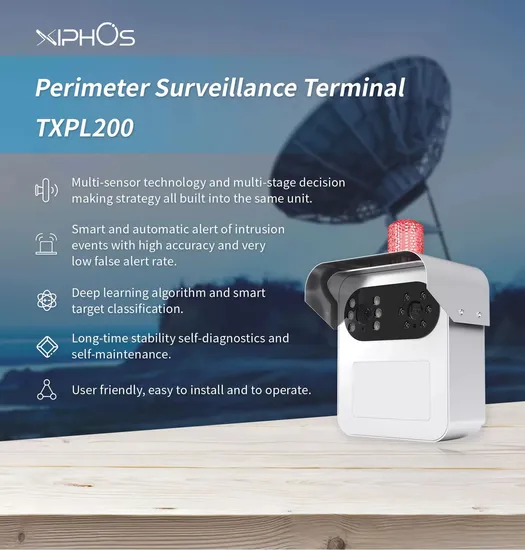

Ai CCTV Camera Radar Sensor for Ground Surveillance Security Intrusion Protection /Gas Station

Product Description

Ai CCTV Camera Radar Sensor for Ground Surveillance Security Intrusion Protection /Gas Station
Product Description
The TXPL200 are multi-sensor intelligent perimeter surveillance terminals. That adopt state-of-the-art multi-sensor technology and multi-stage strategy decision making hierarchy to maximize situational awareness. The terminal comes with built-in radar and cameras, plus smart target recognition and classification, all inside a single unit. The terminal is reliable with highly accurate detection of intrusions and very low false alarm rate. By adopting a software framework based on machine learning, it is able to rapidly adapt to the various environmental changes of the installation site, ensuring system accuracy and optimal user experience. It can be used for perimeter security of parking lots, data centers, commerical buildings, and important infrastructures in a variety of settings.

Product Parameters

Detection Range	up to 220m
Target Classification	Humans, Vehicles, Animals
Target Velocity	0.05~30m/s
Detection Accuracy	High detection accuracy with low false alert rate (up to 99.99% accurate detection against 1 false alert weekly in lab condition)
Simultaneous Tracking	32 targets
Deep Learning Algorithm	Supported
System Self-diagnose	Supported
Alarm Zones	Up to 4 customized alarm zones with different security levels.
Line-cut Alarm	Supported
Cameras	H. 265 HD 1080P 400M optical/IR cameras (daylight and lowlight)
Radar	FMCW MIMO RADAR
Video/image Capture	Full HD 1080p daylight and lowlight
Strobe Siren Alarm	110 dB
Bracket	Universal Type
Communication Interface	RJ45
Alarm Output	NO/NC Relay Output(0.5A/125AC) *1
Protocol	TCP/IP
Installation	Power and Ethernet required. 2.5m above the ground.
Operation System	Windows
Power Supply	DC 24V (18~26.4G)
Power Consumption	70 W (peak)
IP Rating	IP66
Working Temprature	-40 ~ 70°C
Dimension	445*283*200mm
Weight	3.5kg

System Features:
Multi-sensor technology for higher probability of detection and lower false alarms. 24/7 automatic running in all weather condition Smart intrusion tracking and target classification Real-time video /audio alarms Events with geo and time stampod storage

Perimeter Surveillance Radar:
This product is a MIMO technology-based monopulse and low power FMCW radar. It offers high probability of detection with precision location and speed information of intrusions even if the target moves at an ultra low speed. It uses smart algorithm and deep learning to filter common false alarms caused by enviromental artifacts such as trees and bushes. It can be used alone or intergrated into a third-party platform.
Features:
MIMO-based technology High detection probability and low false alarm rates Smart target classification between people and vehicles Long detection range, quick response time,strong anti-interference ability Easy to use and to intergrate 24/7 automatic running in all weather conditions Specifications:

Effective detection range	Min: 2m. Max>=200m(people)/ >=400m(vehicles)
Enviromental	-40~70 degrees; <=95% humidity
Power rating	9~12V DC 10W
Ingress protecting rating	IP66
Network interface	10M/100M RJ45 LAN Port
User interface	SDK interface
Dimension and weight	<=0.8kg

Security Bullet Camera
This camera based surveillance uses a cost-effective HD bullet camera with night vision capabilities of up to 200 meters. It is able to intelligently identify, locate, classify, and track intrusions by working on a software framework based on smart-vision recognition algorithm, continual learning, and automatic model deployment. once an intrusion is detected, it will proactively alert the security crew. It has a high probability detection and can work even in unfavorable enviroments and in darkness.
Features:
Multi-target, multi-category recognition Deep learning and continual learning algorithm Smart alarms and target classification 24/7 operation Specifications:

Detection range	>=200m day light & low light
Camera Pixel	Full HD 4MP
Network interface	10M/ 100M/ 1000M LAN Port
Power supply	DC12V / PoE(802.3at)
Power consumption	14W MAX
IP Level	IP65
Weight	1.6kg
Operating temperature	-20 ~ 60 degrees
Multi alarm area	customized monitoring and alarm area
Extended development	SDK
