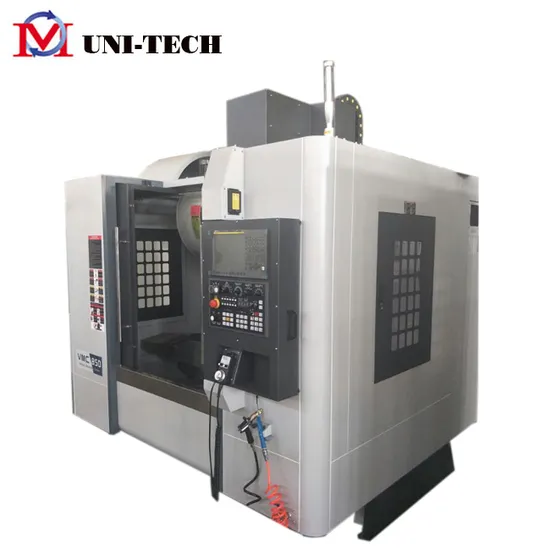

CNC Vertical Machining Center Manufacturing Plant Vmc850

Product Description

FEATURE===cnc vertical machining center Manufacturing Plant VMC850
1.Disc type manipulator ATC efficiently improves machine working efficiency.
2.XYZ-axis adopts precision roller linear guide-way, which is with big load capacity, realize rapid movement, and ensure position accuracy.
3.Ultra-large "" type column design ensure best stability of column and spindle assembly.
4.Built- - in type and high rigidity
spindle ensure high precision and high efficiency cutting features.
5.Wide and solid bed and thickened and lengthened saddle ensure machine with high stability andheavy-duty cutting features.
6.XYZ- -axis adopts precision double -nut ball-screwtransmission, and imported special bearing, pre-
load assembly, all factor sorganize high rigidity and stable ransmissin system.
Configuration====cnc vertical machining center Manufacturing Plant VMC850

Vertical machining center VMC850
ITEM		DESCRIPTION
1	Model	VMC 850
2	Color	BLACK AND WHITE
3	Voltage	380V 50HZ 3PH
4	Spindle	Taiwan spindle BT40/10000RPM (highest speed 10000rpm)
5	Axis	X,Y axis Taiwan or Germany linear guide ways and Z axis Harden box type
6	Leadscrew	Taiwan or Germany ball screws
7	Tool magazin	Taiwan round type tool magazine with 24 tools
8	Bearing	Germany FAG bearings
9	Linear guideway	Taiwan linear guideway
10	Other configuration	spindle blowing chip removal system
		spindle air curtain protection
		auto centralized lubrication system
		rigid tapping
		two water cooling, one air cooling
		electrical hand wheel, working lamp, RS232 interface, alarm light
		DNC online processing
		CE Electrical

SPECIFICATION===cnc vertical machining center Manufacturing Plant VMC850

ITEM/MODEL		Unit	VMC850
TABLE	Table size(L*W)	mm	1000 x 500
	Max.loading capacity of table	Kg	500
	TABLE T-slot number		5
	T-slot width	mm	18
	T-slot space	mm	90
STROKE	X-axis stroke	mm	800
	Y-axis stroke	mm	500
	Z-axis stroke	mm	500
	STROKE Min.distance from spindle end to table	mm	150
	Spindle center line to Z-axis guide-way surface	mm	550
SPINDLE	Spindle motor power	Kw	7.5/11
	Spindle motor torque	N.m	35.8
	Spindle Max.spindle speed(belt)	rpm	10000
	Spindle hole		BT40
MOVING SPEED	X-axis rapid speed	m/min	48
	Y-axis rapid speed	m/min	48
	Z-axis rapid speed	m/min	36
	Max.cutting speed	m/min	20
ATC	ATC capacity	T	24
	Max.diameter of tool	mm	¢85
	Max.length of tool	mm	300
	Max.weight of tool	Kg	7
ACCURACY	XYZ-axis positioning accuracy	mm	0.012
	XYZ-axis repeatability	mm	0.006
Overall	Machine size(L*W*H)	mm	2700*2400*2650
	Machine weight	Kg	5000

Optional accessories:
1.Front chip-removal full-closed cover with chip removal device
2.Water flow through spindle
4.4 axis function
5.Oil coolant type spindle
6.Direct connected spindle
7.Oil and water separator
8.Working-piece and tools measuring device
9.Open-door power off function
10.High speed and precision function
11.Heightened column(bridge type or rising block)
cnc vertical machining center Manufacturing Plant VMC850
International Exhibition:
CERTIFICATION:
PACKAGE:
Our Services:
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ:
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
