Official Manufacturer Xc600 Soil Stabilizer Mixing Plant for Produce Cement Stabilized Soil, Lime Stabilized Soil, Industrial Waste Residue Stabilized Soil

Product Description

Stabilized Soil Mixing Plant
XC600 Rated productivity (t/h) 600 Aggregate(%) ±1.5 Powder(%) ±1 Water(%) ±1 Total installed power(kW) 161 Maximum single power (KW) 90 XC600 PRODUCT FEATURE XC600 Stabilized soil mixing plant is a product developed by SAINTWAH based on its mature technologies, is an advanced level products in contemporary China. This equipment can produce cement, lime and other mixtures at all levels, fully meet the requirement of construction in expressway, classified highway, municipal administration path, airports, dams, freight yard and other projects.XC600 Stabilized soil mixing plant has gained a number of utility models and appearance patents, which have already been applied to the equipment. The equipment possesses the batching plant which can adapt to different working medium and powder feed system for different stabilizers, adopts the advanced large-capacity twin shaft no plate forced mixing technology, intelligent control technology and so on, highlights the core features of stabilized soil mixing plant, namely reliability, intelligence, advance and green.
XC600 Stabilized soil mixing plant performance characteristics XC series stabilized soil plant mixing equipment is a product with China's contemporary advanced level developed on the basis of mature technology , which is used to produce cement stabilized soil, lime stabilized soil, industrial waste residue stabilized soil and other mixed materials at all levels, which fully meets the engineering needs of highways, grade highways, municipal roads, airports, dams, freight yards and so on.
XC series stabilized soil plant mixing equipment has obtained a number of utility model and appearance patents, all of which have been applied to the equipment. The equipment has batching machines adapted to different working fluids, cement systems adapted to various working conditions, large-capacity twin-shaft compulsory mixing system, intelligent control system, etc., which highlight the core characteristics of reliable, efficient, advanced and intelligent mixing equipment of stable soil plant.
1. Reliable
The key parts of the whole machine are internationally matched, using Schneider Electric, Phoenix terminal block, Omron relay, Delta inverter, Delta PLC, Jaguar air compressor, Wafangdian bearing, Jinlong motor, Jeffet air circuit and other international and domestic first-class brand supporting, high reliability.
It adopts profiles from well-known manufacturers of Baosteel and Ansteel, which is solid and stable. Using advanced software platforms such as PROe, cae, pdm and other advanced software platform design, multi-angle simulation analysis, reasonable design and reliable use.
2. Efficient
It adopts large-capacity, twin-shaft, compulsory, non-liner mixer, which mixes more evenly, has abundant power, high productivity, and has a cleaning door on the side and bottom of the mixer, and the humanized design cleaning and maintenance are more convenient.
The whole machine adopts modular design, which is convenient for installation, transportation and relocation.
3. Advanced
The whole machine adopts well-known brand PLC, adopts full digital communication technology, and the whole machine control realizes automation and intelligence. It can realize automatic control of start-up and shutdown, and has advanced functions such as intelligent decement scale tare weight function, automatic diagnosis of material shortage, intelligent vibration arch breaking, and real-time display of the remaining cement amount in the cement silo.
4. Flexible configuration
The number of aggregate hoppers is 3-6 optional, the number of cement silos is 1-4 optional, and the volume of cement silos is 60-500 tons. In addition, users can choose the aggregate hopper mechanical arch breaking device, aggregate hopper vibration grid, cement transition silo, water volume, water flow meter, etc. according to the needs, which can meet the various personalized needs of users.

Products Description 600T/H Stabilized soil mixing plant XC600 Batching plant suitable for different working mediums is provided
The whole machine is centralized and controlled by the computerXC series stabilized soil mixing plant is one of main road construction equipments, which is a group mixer dedicated to mixing various stabilized mixtures combined with water rigid materials. Due to the mixing process concentrated in a fixed site, it features accurate batching, even mixing, and materials-saved, etc. So the equipment is widely used for high-grade highways and urban roads base/sub-base layer construction, as well as freight yard, parking lot, airport construction. The XC Series Stabilized Soil Mixing Plant has the advantages of advanced performance, high efficiency and comfortable operation. Many components adopt international famous products to guarantee the quality. It is the ideal machine for modern construction.Performance and characteristic
· Module-typed assembly structure with a plurality of combination types is convenient for arrangement, disassembly and shipping. · Batching plant suitable for different working mediums is provided. Except for the standardized batching plant, there are batching plants with forcing arch-breaking device for choice, which are used for the material supply of the easy stock bridging material (moist fly ash, soil and sand grain). · A plurality of powder material supply system of different stabilizers is contented. The powder material is conveyed by the spiral conveyor, in order to avoid the dissipation and dust and ensure no environmental pollution. · Large-capability low-position dual-horizontal shaft forcing no-liner mixer makes more uniform mixing, higher reliability, more convenient mainte nance and curing, better economy and lower maintenance cost. · The mixing material storage bin adopts the driving of the cylinder, with reliable motions. · The blanking conveyor has the foldable structure which is convenient for transportation and installation. The material collecting belt conveyor and the blanking belt conveyor adopt the electric roller for driving, which are suitable for poor site environment and have simple maintenance and curing. The conveying belts are ring-shaped belts and have unique deflection-proof function. · The whole machine is centralized and controlled by the computer, and the program can be manually and automatically operated, with conve nient operation and reliable works. The arrangement and adjustment of the burden are convenient. · The computer has powerful management function, friendly user interface and good man -machine conversion function, can memorize the datum such as the burden, output, etc., can output and print the statistical report list, and provides powerful supports for site management, scheduling and monitoring. · The monitor of the computer has clear and friendly user interface and automatic detection and alarm function for the malfunction, thus improving the automation level of the whole machine, reducing the labor intensity of the operators and improving the reliability of the whole machine. · The constant-temperature central control room is spacious and bright, and likes spring all through the year. · The application of the frequency conversion control technology has good stability and high reliability, compared with the electromagnetic speed regulation. Specification

Model		XC600
Rated productivity		600t/h
Total Power		161kw
Aggregate Size		≤60mm
Accuracy	Aggregate	≤±1.5%
	Soil	≤±1.5%
	Lime,Cinder	≤±1.5%
	Cement	≤±1%
	Water	≤±1%
	Bitumen emulsion
	Bitumen foam
Max.motor power		90kw
Structure1		Modular
Cover(L×W)		51×14
Speed-adjusted mode		Variable freguency control

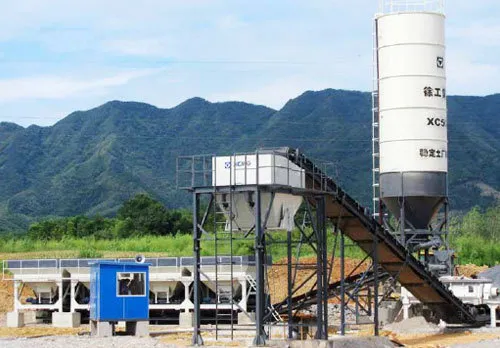

Product Show
