Automated Servo Bottle Blowing Machine Plastic Preform Pet Bottle Blower for Make 250ml~20L PETG Water Bottles Transparent Wide-Mouth Drum Mason Jar Bucket

Product Description

Product Description
Jiangsu Faygo Union Machinery Co., Ltd.

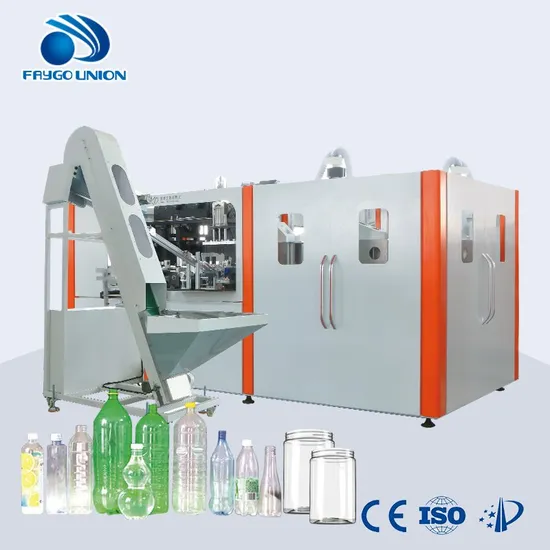

Introducing the Faygo Union Fully-Automatic Servo Energy Saving Plastic Pet bottle Blower Preform Blowing Moulding Machine, designed for making 200ML to 20L PET and PETG water bottles, transparent wide-mouth drum, mason jars, and plastic buckets.
Key Features:
Fully-automatic operation for efficiency Servo technology for energy savings Capable of producing a wide range of bottle sizes High-quality PET and PETG material compatibility Experience seamless production and superior quality with the Faygo Union Plastic Preform Blowing Moulding Machine. Upgrade your manufacturing process today!
Faygo's Fully Automatic PET Blow Moulding Machine Faygo's Fully automatic [ET Bottle Blowing Machine is designed for producing PET & PETG plastic bottles, cups, buckets, and jars for various liquids such as pure water, mineral water, milk, juice, and oil. Developed independently by Jiangsu Faygo Union Machinery Co., Ltd., this machine holds more than 13 national patents.
Features: High Automatization High Intelligence: Controlled through a touch screen with real-time status display High Quality: Steady infrared heating system and precise blow-mould closing system High Speed: Up to 8000BPH (4-cavity) No Contamination: Closed production zone and self-lubrication system Low Cost: Energy-efficient High Transparency: Easy maintenance, safety, visual inspection, and low noise Machine Series: FG Series: Stable two-step high-speed automatic liner blow molding machine YD Series: Standard speed automatic flip blow molding machine for bottles up to 20L FG4 series offers four cavities with a maximum capacity of 2L, reaching 6800-8000BPH. The machine can produce bottles in various shapes suitable for carbonated drinks, mineral water, cosmetics, and more.
YD series is a cost-effective model with a focus on standard speed production for larger bottles.
Choose Faygo's PET Bottle Blowing Machine for efficient, high-quality, and cost-effective production of plastic containers.
Product Parameters

Model			FG4	FG6	FG8	Remark
Mold number(piece)			4	6	8
Capacity(BPH)			6500~8000	9000~10000	13000~16000
Bottle specification	Max volume(mL)		2000	2000	750
	Max height(mm)		328	328	328
	Round bottle max diameter(mm)		105	105	105
	Square bottle max diagonal(mm)		115	115	115
Preform specification	Suitable inner bottle neck(mm)		20--25	20--25	20--25
	Max preform length(mm)		150	150	150
Electricity	Total installation power(kW)		51	51	97
	Heating oven real power(kW)		25	30	45
	Voltage/frequency(V/Hz)		380(50Hz)	380(50Hz)	380(50Hz)
Compressed air	Pressure(bar)		30	30	30
Cooling water	Mold water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6--13	6--13	6--13
	Oven water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6-13	6-13	6-13
Machine specification	Machine dimension(m)(L*W*H)		3.3X1X2.3	4.3X1X2.3	4.8X1X2.3
	Machine weight(Kg)		3200	3800	4500

Product Details
Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement.
equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.
Small performs distance heating system:
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
Efficient and soft perform inlet system:
By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protecte
Modularized design conception:
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.
FG Series Optional items:
Exploded bottles ejection unit:
During the blowing process, if the bottle burst, bad bottles can be automatically removed.
This prevents the bad bottles from entering the filling machine.
HP air recovery system:
After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.

Oven and preform temperature detection system:
Detection system detects temperature of oven and the temperature of performs.
When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.
Equipped with remote monitoring system:
Engineers in China headquarter can check the data collected and sent by the PLC anytime with the mobile ,feedback will informed to the client's site if something abnormal ,give the machine 24 hour'baby care in the cradle.
If you have any question, please feel free to contact us
Related Products
Introducing the Semi Auto Blowing Machine from Jiangsu Faygo Union Machinery Co., Ltd. This machine is designed for producing bottles ranging from 2 to 20 litres in size. Its compact design makes it easy to operate, making it an ideal choice for businesses of all sizes.
Below is the Filling Machine from Jiangsu Faygo Union Machinery
Company Profile
Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines.
It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines,
plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person,
Faygo Plast alwasy provide customers with high quality machines.
Warmly welcome to visit our factory (next to Shanghai)!

FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
