Medical Device Urine Analyzer Components Customized Injection Molds
| US$4,000.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
01-M-028
Surface Finish Process
Polishing
Mould Cavity
Multi Cavity
Plastic Material
ABS
Process Combination Type
Grinding Milling, Lathe CNC EDM Wire-Cut Polishing
Application
Medical
Runner
Hot Runner
Design Software
UG
Installation
Fixed
Certification
ISO
Standard
HASCO
Customized
Customized
After-sales Service
Offer Spare Components for Wearable Parts
ISO
13485
Lead Time
5 Weeks
Mold Design Days
7 Days
Cycle Time
25 S
New Technology
3D Print Technology
Transport Package
Polywood Box
Specification
mold size: 550mm * 680mm *700mm
Trademark
Hightech
Origin
China
HS Code
8480710090
Production Capacity
1 Million
Product Description

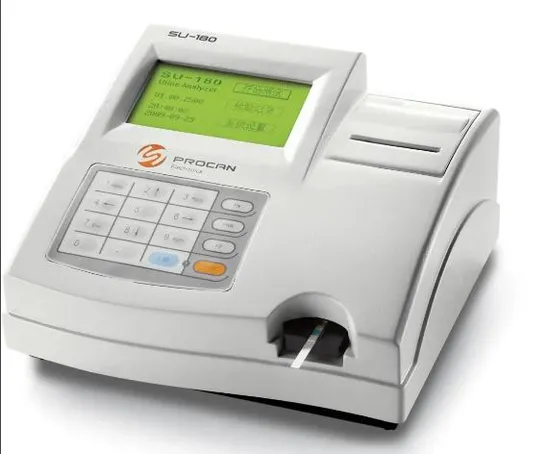

Application: Medical device/Urine Analyzer- : Housing and Body
- : Sample Tray and Holder
- : Reagent Cartridge and Reaction Chamber
- : Sample Introduction System Components
- : Display Screen Frame
- : Buttons and Control Panel
- : Waste Liquid Collection Container
- : Optical Component Housing
- : Connector and Interface Housing
- : Filter Housing
Injection Mould base: LKM standards
Mould Steel: P20/718/NAK80/S136/2738/H13/S304
Custom Plastic mould cavity: Single/Multi-cavity
Gate type: edge gate, J-gate, side gate, sub-gate(cashew gate, subsurface gate, submarine gate, subgate to pin) tunnel gate onto feeder post, pin gate, sprue gate, direct gate, tab gate
Hot Runner: Synventive, Incoe, MoldMaster, Yudo, Husky,,
Mould for plastic:PP/PE/PS/PC/PU/PLA/SILICONE/PMMA/ABS/POM/PA ,,,
Plastic mold standards components: HASCO, DME etc
Mold life: 1 million shots
Press size: 50-1000 tonnages
Design software: UG
File format: 2D(.dwg/.pdf) 3D(.stp)
Quality control: Implement the project engineer responsibility system/in the Design Stage/in material Procurement and Inspection/in the Manufacturing Process/in the Assembly and Fitting Stage/Inspection Before Delivery
Measure equipments: Coordinate Measure Machine, 3D Scanner(GOM German)OMM projector longside hand-tool measure
Equipments: 18 CNC(Mori Seiki, Fanuc, YCM) 9 EDM(AgieCharmilles MAKINO) 7 Wire-cut( AgieCharmillies)
Mold trial: in-house 10 injection molding machines, tonnage: 60-1000T
Mould manufacturing facility: 12 000 square meters
Professional team employee count: 70+ ( 15 project engineers, 35 design+CAM, 15 QC)
Certifications: ISO 9001, ISO 14001, ISO 13485, IATF 16949
Molding shop: 24 horizontal injection molding machines with robots, ISO 8 Clean room 5 molding machine(Toyo, FANUC)
