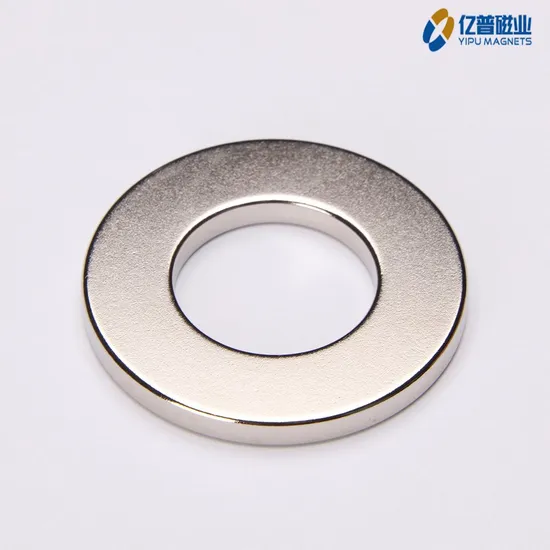

Strong Magnetic Amplifier N33-N35sh Neodymium Permanent Rare Earth NdFeB Motor Ring Magnet for Industrial

Product Description

Company Profile
Ningbo Yipu Magnetics Co., Ltd. is the world's leading manufacturer of hot-pressed NdFeB magnetic rings and related REPM (rare earth permanent magnet) and Samarium Cobalt products.
Business Type: Manufacturer/Factory
Main Products: Magnets, NdFeB Magnets, Samarium Cobalt, AlNiCo, Motor Magnets
Number of employees: 200+
Year of establishment: 2017
Plant area: more than 15,000 square meters
Average delivery time: Off Season Lead Time: within 15 workdays
Peak Season Lead Time: within 25 workdays Product Description

Description:
Product description	Permanent magnet materials have excellent permanent magnet performance and cost performance, and are widely used in motors, automobiles, artificial intelligence robots and medical equipment markets.
Custom shape	Squares, Cylinders/Disks, Rings Segments/Tiles/Arcs/Sectors, Special Shapes
Surface coating	Nickel, Zinc, Chromium, Epoxy, Gold, Silver, etc.
Selling point:	Stable product performance, high temperature resistance and corrosion resistance
Manufacturer	Ningbo Yipu Magnetic Industry Co., Ltd

Detailed Photos
Main Products

Certification	REACH/ ROHS/ ISO9001	Features	High temperature and corrosion resistance
Origin	China	Transportation	Carton/Pallet
Trademark	YIPU Magnetics	Material	NdFeB
Production capacity	Factory Address: No. 186-1, Dongxin Road, Dongqiao Town, Haishu District, Ningbo City, Zhejiang Province R&D capability: own brand, OEM, ODM	Customs code	8505111000

Product Parameters
Grade

Material		Magnetic properties
Item	Grade	Br		Hcj(Min)		Hcb((Min))		(BH)max Range		Work temp.
		T	kGs	kA/m	kOe	kA/m	kOe	kJ/m³	MGOe	ºC
1	N27	1.03-1.08	10.3-10.8	955	12	796	10	199-231	25-29	80
2	N30	1.08-1.13	10.8-11.3	955	12	796	10	223-247	28-31	80
3	N33	1.13-1.17	11.3-11.7	955	12	836	10.5	247-263	31-33	80
4	N35	1.17-1.22	11.7-12.2	955	12	868	10.9	263-287	33-36	80
5	N38	1.22-1.25	12.2-12.5	955	12	899	11.3	287-310	36-39	80
6	N40	1.25-1.28	12.5-12.8	955	12	923	11.6	302-326	38-41	80
7	N42	1.28-1.32	12.8-13.2	955	12	923	11.6	318-342	40-43	80
8	N45	1.32-1.38	13.2-13.8	955	12	876	11	342-366	43-46	80
9	N48	1.37-1.42	13.7-14.2	955	12	892	11.2	366-390	46-49	80
10	N50	1.39-1.44	13.9-14.4	876	11	836	10.5	374-406	47-51	80
11	N52	1.42-1.47	14.2-14.7	876	11	836	10.5	390-422	49-53	80
12	N55	1.46-1.52	14.6-15.2	876	11	716	9	414-446	52-56	80
13	30M	1.08-1.13	10.8-11.3	1114	14	796	10	223-247	28-31	100
14	33M	1.13-1.17	11.3-11.7	1114	14	836	10.5	247-263	31-33	100
15	35M	1.17-1.22	11.7-12.2	1114	14	868	10.9	263-287	33-36	100
16	38M	1.22-1.25	12.2-12.5	1114	14	899	11.3	287-310	36-39	100
17	40M	1.25-1.28	12.5-12.8	1114	14	923	11.6	302-326	38-41	100
18	42M	1.28-1.32	12.8-13.2	1114	14	955	12	318-342	40-43	100
19	45M	1.32-1.38	13.2-13.8	1114	14	995	12.5	342-366	43-46	100
20	48M	1.36-1.42	13.6-14.2	1114	14	1019	12.8	358-390	45-49	100
21	50M	1.39-1.44	13.9-14.4	1114	14	1035	13	374-406	47-51	100
22	52M	1.42-1.47	14.2-14.7	1035	13	995	12.5	390-422	49-53	100
23	30H	1.08-1.13	10.8-11.3	1353	17	796	10	223-247	28-31	120
24	33H	1.13-1.17	11.3-11.7	1353	17	836	10.5	247-271	31-34	120
25	35H	1.17-1.22	11.7-12.2	1353	17	868	10.9	263-287	33-36	120
26	38H	1.22-1.25	12.2-12.5	1353	17	899	11.3	287-310	36-39	120
27	40H	1.25-1.28	12.5-12.8	1353	17	923	11.6	302-326	38-41	120
28	42H	1.28-1.32	12.8-13.2	1353	17	955	12	318-342	40-43	120
29	45H	1.32-1.38	13.2-13.8	1353	17	971	12.2	342-366	43-46	120
30	48H	1.36-1.42	13.6-14.2	1353	17	1027	12.9	358-390	45-49	120
31	50H	1.39-1.44	13.9-14.4	1274	16	1035	13	374-406	47-51	120
32	30SH	1.08-1.13	10.8-11.3	1592	20	804	10.1	223-247	28-31	150
33	33SH	1.13-1.17	11.3-11.7	1592	20	844	10.6	247-271	31-34	150
34	35SH	1.17-1.22	11.7-12.2	1592	20	876	11	263-287	33-36	150
35	38SH	1.22-1.25	12.2-12.5	1592	20	907	11.4	287-310	36-39	150
36	40SH	1.25-1.28	12.5-12.8	1592	20	939	11.8	302-326	38-41	150
37	42SH	1.28-1.32	12.8-13.2	1592	20	971	12.2	318-342	40-43	150
38	45SH	1.32-1.38	13.2-13.8	1592	20	979	12.3	342-366	43-46	150
39	46SH	1.34-1.39	13.4-13.9	1592	20	979	12.3	350-374	44-47	150
40	48SH	1.36-1.42	13.6-14.2	1512	19	995	12.5	358-390	45-49	150
41	28UH	1.02-1.08	10.2-10.8	1990	25	764	9.6	207-231	26-29	180
42	30UH	1.08-1.13	10.8-11.3	1990	25	812	10.2	223-247	28-31	180
43	33UH	1.13-1.17	11.3-11.7	1990	25	852	10.7	247-271	31-34	180
44	35UH	1.17-1.22	11.7-12.2	1990	25	860	10.8	263-287	33-36	180
45	38UH	1.22-1.25	12.2-12.5	1990	25	876	11	287-310	36-39	180
46	40UH	1.25-1.28	12.5-12.8	1990	25	915	11.5	302-326	38-41	180
47	42UH	1.27-1.33	12.7-13.3	1990	25	971	12.2	310-342	39-43	180
48	28EH	1.04-1.09	10.4-10.9	2388	30	780	9.8	207-231	26-29	200
49	30EH	1.08-1.13	10.8-11.3	2388	30	812	10.2	223-247	28-31	200
50	33EH	1.13-1.17	11.3-11.7	2388	30	820	10.3	247-271	31-34	200
51	35EH	1.17-1.22	11.7-12.2	2388	30	836	10.5	263-287	33-36	200
52	38EH	1.20-1.25	12.0-12.5	2388	30	915	11.5	279-310	35-39	200
53	28AH	1.02-1.09	10.2-10.9	2706	34	780	9.8	199-231	25-29
54	30AH	1.07-1.13	10.7-11.3	2706	34	812	10.2	215-247	27-31
55	33AH	1.11-1.17	11.1-11.7	2706	34	820	10.5	239-271	30-34

Magnetization Direction
Certifications
Application
60% of our products are used with permanent magnet motors and generators, such as elevator motors (escalator motors, gearless traction machines), servo motors and flux motors.
Products are also widely used in industrial automation, compressors, consumer electronics, new energy vehicles, and magnetic tools. Factory&Packing&Shipping Inspection EquipmentPacking&Shipping
What do we have ?
Individual R&D team: More than twenty people.
Independent product testing laboratory: Provide full product inspection and test reports.
Qualification certificate: Reach/ RoHS/ ISO9001.
Widely Performance: N35-N54, N35M-N52M, N33H-N50H, N33SH-N45SH, N30UH-N42UH, N30EH-N38EH, N28AH-N33AH.
Specialized sample production line: Small quantity production samples available.
Convenient shipping options: FedEx door-to-door service. Fedex. DHL, UPS, SF International and other international couriers are available for delivery.
Excellent service: 24/7 standby to respond to your messages
Professional engineering team to solve your problems
Perfect after-sales service.
Why Choose Us ?
1. Permanent magnet factory, independent production process
2. Independent engineering team for on-site support services
3. The Fastest delivery time, within 15 days.
4. Provide complete product inspection.
5. Any quantity of production samples are available..
6.As the most direct factory manufacturer, we can provide you with the most cost-effective products and help you to better control your products while ensuring product quality.
