130mm Spindle Bore Large Strong Heavy Lathe CW61125

Product Description

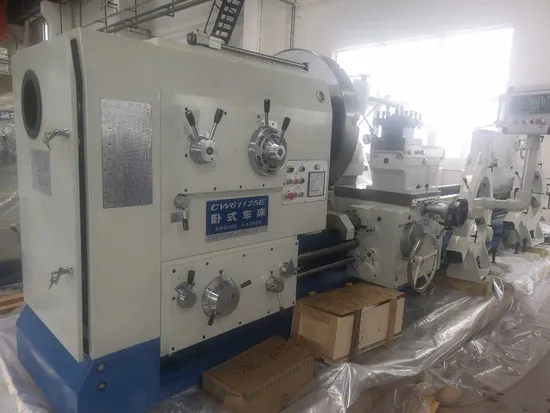

CW61125E (Center distance can be up to 16000mm)
Features: Flat bed structure;high rigidity;heavy load capacity and good reliability; The rotary built-in center in the tailstock features with heavy load and is easy to operate; Rapid movement function; The model of lathe is specially suitable for the following industries: paper making, textile, rubber and shipbuilding etc.. The lathe is suitable to machine large sized parts, such as disc type, rubber roller; it can also cut tread, drill hole and bore hole.

Max. swing over bed	1250mm
Max. swing over gap	1500mm (only for gap bed lathe)
Max. swing over carriage	900mm
Max. Turning length	1500~16000mm
Max. Workpiece weight between centers	6000;8000kg
Width of bed	755mm
Spindle nose	ISO A2-15
Diameter of spindle front bearing	200mm
Diameter of spindle bore	130mm
Spindle taper	Metric No.140mm
Number of spindle speeds	21 steps; manual
Spindle speed range (r/min)	3.15~315
Main motor power	AC22kW
Tool shank section	32x32mm
Diameter of tailstock quill	160mm
Taper of tailstock quill	Morse No.6
Travel of tailstock quill	300mm
Weight of machine (3m length)	12500kg
Additional weight per 1 m BC	800kg
Overall dimensions of machine	6100x2000x2100(3m length)

STANDARD ACCESSORIES
4 JAW CHUCK, DIA. OF 1000 mm, 1 SET
STEADY REST, RANGE 50 TO 470 mm, 1 SET
FOLLOW REST, RANGE 50 TO 220 mm, 1 SET
DEAD CENTER, 2 PCS
REDUCING SLEEVE, 1 PC
LIVING CENTER, 1 SET
COOLING SYSTEM
WORK LIGHT
SPECIAL TOOLS
OPTIONAL ATTACHMENT
TAPER TURNING ATTACHMENT, LENGTH = 800 mm
DRO DISPLAY FOR BOTH DIRECTIONS
Supporter with two rollers, range 285 to 650 mm


Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item:
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
Exhibitions & Customers' Visiting
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
