Twin Spindle Horizontal Machining Center CNC Hmc Machine Lathe Milling Machining Center

Product Description

Main Features

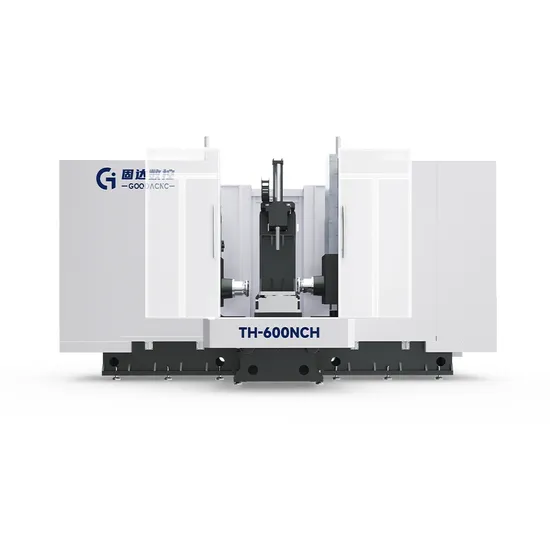

GooDa Twin-Spindle Horizontal Milling & Drilling Machining Center TH-600NCH with moving columns is mainly used for efficient milling, drilling, and tapping of large flat plates, new energy, flanges, ring parts, and other workpieces.
It can achieve drilling through-holes and blind holes on single-material parts or composite materials, and can achieve large-scale production with automation and high precision. This type of machine can be customized as needed.
Main Functions
A high-precision machine tool integrating cutting, drilling and tapping;
The workpiece can be processed in one time (no secondary clamping), the loading and unloading, positioning and tool changing speeds response quickly.

Auxiliary Devices
Retractable workpiece clamping: during feeding, the device automatically retracts to facilitate feeding. After feeding is completed, it automatically extends to clamp the workpiece.
A fully automatic mechanical hand are available to achieve efficient automated processing.
Precision Rotary Table
The machine adopts a Taiwan indexing plate with precise positioning and strong heavy cutting ability.
Spindle
High-rigidity, high-torque spindle with high accuracy and strong cutting ability, suitable for cutting with large cutter.
Core Components
Guideway
Z-axis uses high-rigidity hard guideway and X, Y-axis uses roller linear guideway, suitable for heavy-duty cutting. With only one setup, it can continuously complete various processes such as milling, drilling, tapping, and more.
Casting
The machine bed is cast from HT300, with high stability and not easily deformed. The large-span base effectively disperses gravity and processing forces. The machine structure is sturdy, with high bed rigidity and processing stability.
System
Equipped with original Mitsubishi system, which is powerful and has excellent data processing capability. The original high-power Mitsubishi main motor provides excellent stability, fast response, and high accuracy.
Dual Tool Magazine
The machine comes with a dual tool magazine structure with the high-speed ATC system. Multiple processes done within only one setup such as milling, drilling, tapping of large and medium-batch parts, greatly improves production efficiency.
Our team of experts is ready to help you find the machine most suitable for your processing needs. Get Expert Assistance Now! Product Parameters

Model	TH-600NCH
Processing capacity	Machining length	600(Turntable)	mm
	Machining width	600	mm
	Machining height	550	mm
Worktable	Worktable size	600x600	mm
	Max. load	2000	kg
Spindle (Belt type)	Spindle	Φ190	/
	Spindle motor	2x18.5	kW
	Tool spindle taper	BT50	/
	Spindle speed	50-1500	rpm
	Drilling diameter (steel)	10-20	mm
	Tapping (steel)	M12-M24	/
	Max.cutting chip	2x1.5	mm
	Cutter diameter	150	mm
	The longest cutter	280	mm
Motor power	Motor power X/Y1/Y2/Z1/Z2/B	3/3/3/3/3/2	kW
	Fast moving speed	8000	mm/min
Tool magazine	Disc type tool magazine	24	T
Space & weight	Machine weight	16	T
	Machine space	5563x4325x3207	mm

Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.
