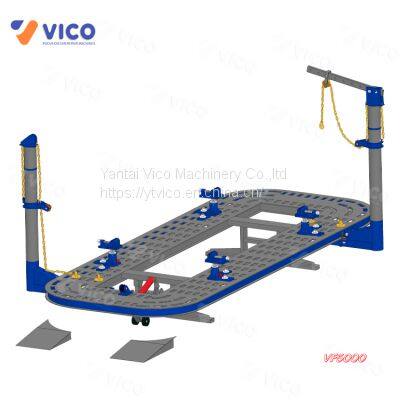

CE factory car straightening frame machine vehicle body repair equipment for auto body collision repair #VF5000

Product Details

Product Description

Product Description
Product description
(1) Hydraulic tilt lifting platform. Assist the flexible leg makes the accident car loading and unloading easily. Platform of ups and downs doesn’t contact with the ground, reduce the damage of ground in the process of ups and downs.
(2) Five rows flat square hole working platform, the platform is board with its panel formed by Laser cutting machine from a single cut. The notch is smooth with no heat deformation, easier to fix the fixture, no blind spots, make the bottom corrected without difficulties, eliminate the distortion and protect the scatheless parts.
(3) Towers can be rotated 360° along with the platform. Unique roller rotation mechanism design, making the tower move more flexible and stable. Unique tower fixed, Convenient and reliable, no blind spots.
(4) Patent main clamp has tiger jaw design, Jaw mechanics streamline design are forged and heattreated, high strength and long life, fix the auto quickly and accurately, also the extension height can be adjustable.
(5) All fixture random allocation can meet all kinds of fixture, the deformation of any correction repair.
(6) Hydraulic system with good design has powerful driving force, long life and low failure rate.
Specifications

Platform Length	5600mm
Platform width	2200mm
Platform height	520mm
Post Max. tension	98KN
Pneumatic pressure range	0.8Mpa
Post working range	360° full around
Cylinder capacity	10T
Maximum lift capacity	3500kgs
Packing size	5600*2130*250mm 2150*1360*750mm/5cbm
Weight	2500kgs

Detail
Packing & Delivery
Package of auto body straightening system:
1. Accessories are packed in seaworthy wooden box;
2. Frame benches are covered with carton and plastic material.
Company Profile
We mainly focus on offering auto body collision repair equipment and tools : Painting booths, auto body frame machines, car lifts , prep station, tire changer, tire balancer , wheel alignment machine, scissor lifts, measuring machine.
