Noice Free Automatic Sliding Door Drive Same Label

Product Description

Noice free Automatic Sliding door drive same LABEL
Quick Details Type: Automatic Door Operators Place of Origin: Guangdong, China (Mainland) Brand Name: CATERLY / FUJI Model Number: F-120W Operating Voltage: DC 24V Input Voltage: AC 80V~250V ,Hz: 50~60Hz Max. Door Weight: 120kg Electronic Controller: Microprocessor Controller Motor: DC 24V 75W Brushless Motor Door width: 700~1700mm Railing Type: High Strength Aluminum Alloy Rail same LABEL rail and cover Fixed Pulley: Hanging Wheel sets / Convenient Level Adjustment Certificate: CE 3 Year guarantee Specifications
Automatic sliding door drive system same as LABEL autodoor
CE & ISO9001 certificate
17 years experience in the global market
3years' warranty
Manufacture of automatic door

Main Features and Advantages : 1 Wide voltage range(AC90-260v),low power consumption when at work(80W), energy saving when at leisure(3w)
2 Intelligent design, easy to install and adjust.
3 Digital programs, running parameters can be revised easily.
4 Specially designed noise-reduction track rail produces noise greatly, ensures the rollers run smoothly.
5 Advanced brushless DC motor and the worm-reduction gear are integrated together, which has advantages such as higher efficiency, larger torque and longer life span.
6 Different triggering modes are available, such as remote controller, lock each other, backup battery, electronic lock, safety beam sensor, handle button, etc.
7 The motor can lock automatically if there is no triggering signal. The powerful closing force keeps the door shut fast. (with power on)
8. when the door touch the people, the door will re-back automatically which ensure its safety.
9 1 millions times of tests passed.
10 CE , SGS, ISO9000:2008 certificated.

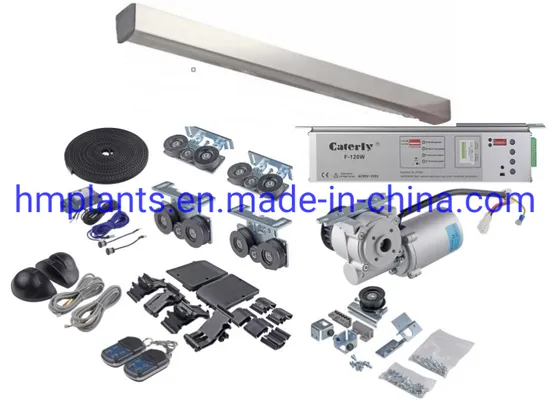

Accessories List
One set of Double Kit include:
2*Aluminum Rail(2.1 M/each)
1*Computerized controller
1*Motor
1*Power
2*Stopper
4*Hander ABCD
2*Belt holder AB
1*Accessories
2*Microwave sensors
1*7.0 meter belt;
4*Glass Holder;
1*Instruction manual
One set of Single Kit include :
1*Aluminum Rail(2.1 M)
1*Computerized controller
1*Motor
1*Power
2*Stopper
4*Hander AB
2*Belt holder AB
1*4.2 meter belt
1*Accessories
1*Instruction manual
2*Glass holder;
2*Microwave sensors
Additional device
Electronic mechanical lock
Photocell
light beam safety switch
Card
Replaceable emergency back-up power

Technical data:

range of the door	single-leaf double-leaf
Door leaf max weight	130KG*1 leaf 120KG*2 leaves
Power Supply	AC 90v-260v, 50-60 Hz
Opening Speed	100-600mm/s (adjustable)
Closing Speed	100-600mm/s (adjustable)
Creep speed	30-100mm/s (adjustable)
Hold-open time	0-9s (adjustable)
Hold-Close Force	70N<f<250N
Manual Pushing Force	<100N
Power consumption	75W
ambient temperature	-20-+50 C

Packaging & DeliverySelling Units: Double item
Double kit package size: 51X31X15 cm
Single gross weight: 35.0 kg
Package Type: automatic sliding door opener system
51X31X15 cm
425x15x6ccm
HS code: 8501310000
Lead Time :

Quantity(Set)	1 - 50	>50
Est. Time(days)	3-5	To be negotiated

CATERLY /FUJI Automatic sliding door drive system



Cerfication :
