Hydraulic PU Polyurethane Polyurea Spray Machine Fd-211A1

Product Description

Product Description

"Our mission is simple: making homes and businesses as comfortable, energy-efficient, and safe as possible. If you want to save money, stay warmer in the winter and cooler in the summer, or create a safer indoor environment, we have the products, equipment, and trained experts who can make it happen.

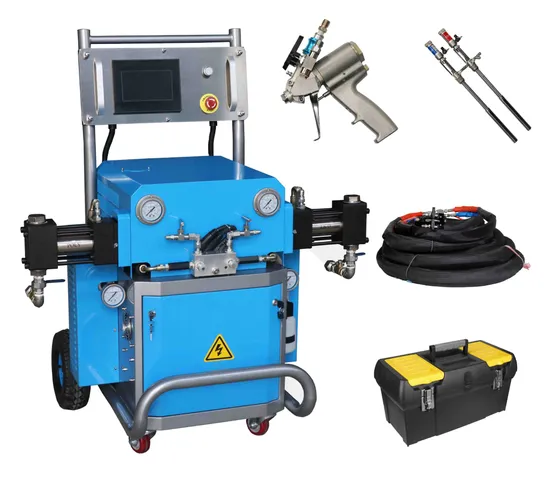

Hydraulic Pu Foam / Polyurea Spray Machine FD-211A1 is a hydraulic driven polyurethane polyurea spray machine.
It has the characteristics high working pressure, stable pressure and large spray output.
It is especially suitable for large-scale spraying construction.
Detailed Photos
Product Parameters

Project	FD-211A1
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Max Working pressure	35MPa (350 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
Maximum output	24kg/min (42 lb/min)
Gun Type	Spray/Injecting
Heating hose power	1000W / 15m
Total power	15000W
Voltage	230V 1-ph / 3-phs 380V/400V 3-ph
Machine size	870mm * 700mm * 1150mm
Gross weight	320KGS
Net weight	280KGS

Standard configurations

Self-cleaning gun 1 unit/ Transfer pump 2 units/ Heating hoses 15 meters
Packaging & Shipping
Export fumigation-free wooden box packaging, sea and air transport more robust and reliable.


Exhibition
For more than ten years since its establishment, it has participated in dozens of foreign exhibitions and has very stable partners all over the world.

Certifications
CE certification, rich export experience
