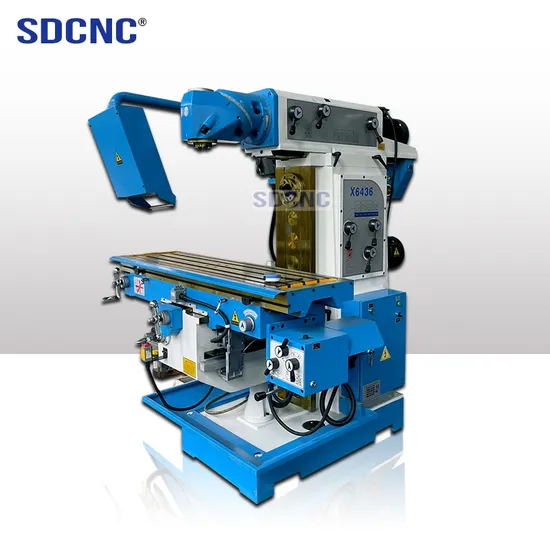

High Quality Precision Milling Swivel Head Conventional Vertical Universal Milling Machine X6436

Product Description

Product description: Universal Swivel Rotary Angle Head Milling Machine
1.SOLID CAST STRUCTURE:Bed base, bed body, and other main components are cast with high strength materials,
Ensure long-term use of the machine! beautiful appearance, reasonable structure, wide use, easy operation.
2.WORK TABLE:Ultra-audio quenching,precision grinding and scraping guide.
3.X/Y/Z AUTO FEEDX/Y/Z axis auto feed, improve processing time.
4.3 AXIS ORD3 axis digital readout is optional, need extra cost.
5.The main shaft adopts high precision rolling bearing support, high rotation accuracy
6.According to the user's request to choose the automatic feeding rack!! SPECIFICATIONS

Specifications	Units	X6436
Table size	mm	1320x360
Table stroke	mm	1000x300
T-type slot numbers / width /space	mm	3-14-95
Spindle taper		ISO50
Distance from spindle axis to table surface	mm	170-570
Distance from spindle axis and column	mm	230-730
Spindle speed range(steps)	rpm	58-1800, 60-1750
Table power feed speed range	mm/min	22-420(X) 22-393(Y) 10-168(Z)
Swivel angle of table		±35°
Milling head swivel range	°	360
Spindle motor power	KW	4
Overall dimensions	mm	2070x2025x2020
Machine weight	Kg	2480
