Frame Es200 Automatic Sliding Glass Door Opener with Dunkermotoren Motor
| Negotiable | 10 Sets (MOQ) |
Basic Info.
Model NO.
ES200
Open Style
Sliding
Opening Type
Induced
Color
Transparent
Certification
ISO9001, CE
Position
Interior
Surface Finishing
Finished
Motor
Dunkermotoren Motor
Controller
Smart Controller
Holding Weight
180kg*2
Design
European Design
Power Supply
110V-220V
IP Rate
20
Emergency Stop
Yes
Error Reading
Yes
Speed
70cm/S
24V Output
Yes
Breakout System
Yes
Application
Hotel,Bank,Airport,Supermarket
Transport Package
Carton
Specification
motor driven
Trademark
KAST
Origin
China
HS Code
9032899090
Production Capacity
1000sets/Month
Product Description

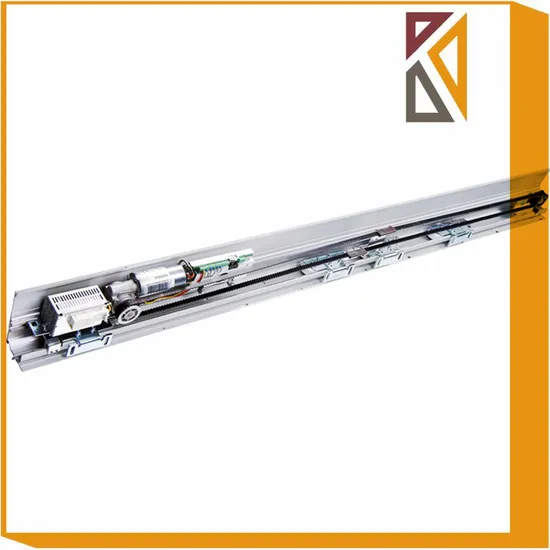

ES200 for sliding pedestrian doors, with a maximum capacity of 200 kg, designed for heavy duty use, with smart control system using the latest germany technology, to permit self regulation of the movement depending on the weight and size of the door panels. Safety functions incorporated, with control of thrust force, automatic reversal in case of detection of an obstacle in the panel slide zone and fuse protection. Encoder for automatic reading of the run, position and slowing of the doors. CE marking. Customizable functions: opening and closing speed; open time for automatic/partial; partial opening; selection of mode of emergency operation with battery, etc. Night-bank open and Error display.Sectional View,
European slimline and modular design, height is less than 100mm, track is divided into supporting profile, guide profile and rubber. It not only simplifies the installation and maintenance ,but also ensure operator's more smooth and quite working.
Microcontroller,
| Microprocessor controller | yes |
| Microprocessor-controlled function programs - Off - Automatic - Permanent open - Partial opening - Exit only - Night-bank control | yes yes yes yes yes yes |
| Emergency off | yes |
| Self-learning | yes |
| Automatic reverse | yes |
| Connection for biostable electro-mechanical locking | yes |
| Connection for light barriers | yes |
| Setting of basic parameters via integrated display and push-buttons | yes |
| Emergency opening or closing (with use of battery pack) | yes |
| 24 V output for external consumption | yes |
| Read-out error store with error codes | yes |
Technical Datas,
| Single open | Opening width | 700mm-1400mm |
| Door weight | 1 x 200kg | |
| Double open | Opening width | 800mm-2000mm |
| Door weight | 2 x 180kg | |
| Profile size | L | 4200mm |
| H | 100mm | |
| D | 180mm | |
| Opening speed | 10-70cm/s | |
| Closing speed | 10-50cm/s | |
| Motor & Encoder | Dunkermotoren GR63x55, 40V,80W DC brush motor and RE20 encoder from Germany | |
| Activation | Optex/BEA combination sensor, remote controller or program switch | |
| Manual force | 150N | |
| Hold-open time | 0s - 180s | |
| Electric Characteristics | Main power | AC230,50Hz/ AC110,60Hz |
| Consumption | 250W | |
| Fuse | ||
| IP protection | IP20 | |
