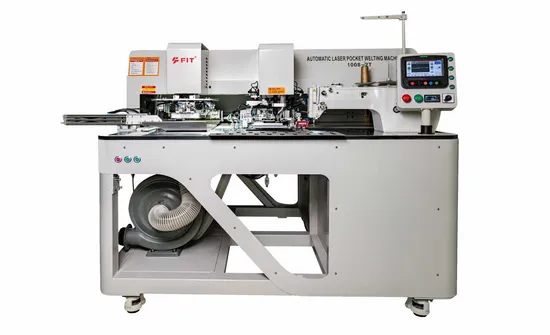

Fit-1008b-2t Laser Automatic Pocket Welting Sewing Machine

Product Description

Product Description The bag opener is suitable for suit pocket, T-shirt placket,real bags,fake bags,especially the zipper of sports pants,which can be completed at one time, which is three times of the ordinary bag opener. The folding mechanism of the automatic non-iron folding bag machine adopts the cylinder automatic folding technology, which improves the production efficiency and saves labor by eliminating the need for ironing table for folding pockets. The automatic shrinkage mechanism of the internal pressure frame makes the change of the pocket's edge trace not limited. The internal pressure frame adds the function of replaceable adjustment. Automatic feeding mechanism,after machine sewing,the automatic manipulator is used for feeding,and the sewing products can be placed neatly. Detailed Photos
Product Parameters

Controller type	Laser automatic welting machine
Sewing range	X Left:100-210mm X right:100-210mm Before Y:10-40mm After Y:10-40mm
Maximum speed	2500rpm (spacing less than 3mm)
Sewing stitch length	0.1~12.7mm (minimum resolution 0.1mm)
Press foot to send cloth	intermittent cloth feeding (pulse motor dual-shaft drive mode)
Pin stroke	41.2mm
Needle	MT190:12# 14# 16#
External pressure foot lit medium	Standard 15mm,Max22mm Standard
Pressure foot stroke	4mm(0~10mm)
Medium pressure foot it	20mm
Spinning shuttle	Hall rotating double spinning shuttle
Pattern data store pause	Memory/USB disk
Function	The sewing machine can be stopped during the sewing process
Zoom in and zoom out	The x and v ares can be scaled up and down independently when stitching patterns can be Selected .1%6~200%(1%unit)
Zoom in and out mode sewing	Increase or decrease stitch length increase or decrease stitch number mode
Speed limit	200-2500rpm(100rpmunit)
Pattern selection function plus	Pattern number selection
Counter Subtracting	Do not count/count by pattern/count by cycle (0-9999)
Counter subtracting	Do not count/count by pattern/count by cycle( 0-9999)
Sewing machine motor	servo motor
Dead end stop function	After sewing the needle rod can be returned to top dead center position
Power on pin rod	1600 w
Supply voltage	AC 220V±10%
