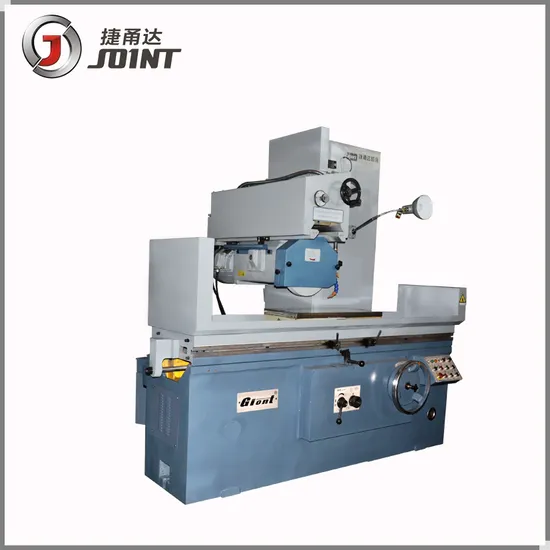

Manual Flat Metal Grinder Surface Grinding Machine M7170

Product Description

Suitable for high precision manufacturing industry
1. Precision and cost performance reach best configuration.
2. Specializing in the development and manufacture of surface grinding machine, variety of products, complete specification.
3. Suitable for different customer personality choice, high cost performance.
4. Stable and reliable quality, popular for mold manufacture industry market.
Specification

Model			M7170/1200	M7170/1600	M7170/2000
Table size		mm	700*1250	700*1600	710*2000
Max distance from spindle to working table		mm	800	800	800
Max load of table		mm	1000	1250	1500
Max crossward movement of table		mm	1300	1300	1300
Max longitude movement of grinding head		mm	750	750	750
Max vertical movement of grinding head		mm	600	600	600
Vertical feed of hand wheel of grinding head		1 Div	0.01	0.01	0.01
		1 Rev	0.5	0.5	0.5
Grinding wheel size		mm	400*50*203	400*50*203	400*50*203
Grinding wheel rotation speed		rpm	1440	1440	1440
Motor power		kw	14.5	14.5	14.5
Spindle motor of hand wheel		kw	9	9	9
Oil pump motor		kw	6.5	11	11
Parallelism from machining face and base face		mm	0.008/300	0.008/300	0.008/300
Surface roughness		μm	0.63	0.63	0.63
Weight		kg	7300	8000	9000
Dimension (L*W*H)		mm	3900*2250*2420	5500*2250*2420	6400*2250*2420

Standard accessories:
1. Grinding wheel
2. Oil pump
3. Working light
4. Wheel flange and extractor
5. Tool and tool box
6. Operation manual
7. Balancing bracket
Optional accessories:
1. Two axis DRO
2. Inverter
3. Demagnizer
4. Vice
5. Punch dressor 6. Universal dressor
Company Profile Shenzhen Joint Technology Co., Ltd. specializes in R&D and manufacturing mold processing and machinery parts processing equipment, we developed high quality and high-tech research, development, manufacturing, service team and management system, and expanded products to more than 11 series from milling machines, to machine center,mechanical arm, automation. With the exceptional quality products and distinct brand reputation, our products are sold to more than 40 developed cities all over China, and also to more than 20 countries all over the world across Asia, Europe and America.Our company takes the high quality product as orientation, R&D ideas is to provide customers with the most suitable quality products, became a professional machine tool manufacturer with a complete product line of mould and parts processing machine tool and strong tailor-made design capability in China. Core strengths 1. Standardize processes and operating mechanisms, high standards production and testing software and hardware - Ensure stable product supply and service support.
2. We insist in-depth research and technological precipitation for more than 20 years - Promote rapid innovation and progress in products and technology.
3. Comprehensive information management systems such as ERP and CRM - JOINT has formed a efficient operation and continuous improvement system.
4. Integrity, collaboration, innovation, and win-win spirit - we JOINT has established a strong and stable supply chain, and a large long-term win-win customer base. Special advantages 1. Provide more practical customized products
2. Provide CNC product applications support
3. Provide integrated solution for auto production line
4. Provide integrated design of mold, and parts processing production line
Qualifications and honors 1. National High-tech Enterprose
2. Shenzhen famous brand "JOINT"
3. Member of China Quality Association
4. Member of China Machine Tools Association
5. Vice-chairmen of Shenzhen Machinery Association
6. CE certification on milling machine, grinidng machine and machine center.
7. More than 150 patents on invention, utility model patent and software copyright etc.
8. Guangdong famous trademark
FAQ Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: What is your terms of payments?
A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.
Q4: What is the package? Is it suitable for shipment?
A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.
Q5: How long is the warranty for machines?
A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
