Instruments Making Plastic Spoon Machine Electric Injection Molding Plastic Machine

Instruments Making Plastic Spoon Machine Electric Injection Molding Plastic Machine

US$220,000.00-230,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-1850T IV
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
1525/1751/1992/2249cm³/Sec
Weight
130000kg
Motor Power
55kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
15.6*4.6*5.2m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Instruments Making Plastic Spoon Machine Electric Injection Molding Plastic Machine
Product Parameters

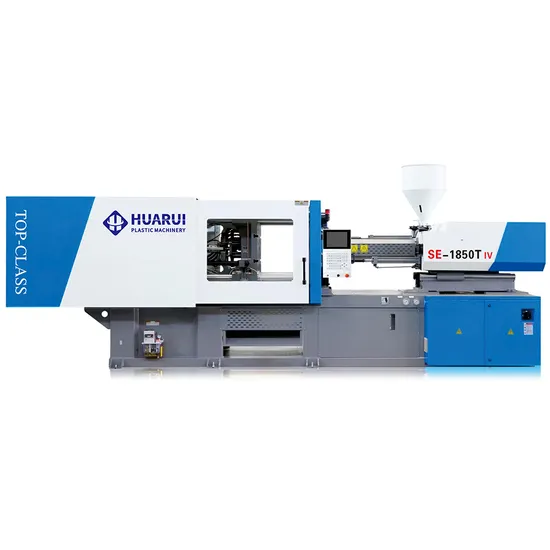

SE-1850T IV Plastic Injection Molding Machine Information
Item Unit A B C D
Screw diameter mm 140 150 160 170
Theoretical shot volume cm³ 11545 13254 15080 17024
Shot weight (PS) g 10506 12061 13723 15492
Shot weight (PS) oz 370.6 425.4 484.1 546.5
Length/Diameter ratio L/D 23.6 22 20.6 19.4
Injection pressure Bar 1913 1666 1464 1297
Injection rate cm³/sec 1525 1751 1992 2249
Max.screw speed rpm 111
Clamping force KN 18500
Max.daylight mm 2410*2280
Open stroke mm 1650
Space Between Tie-bars mm 1650*1500
Min mould dimension mm 800
Mould thickness range mm 17000
Ejector force KN 430
Ejector stroke mm 400
No.of ejector pins unit 25
Max.motor power KW 55+55+55+55
System pressure MPa 175
Heater input power KW 100
Oil filling capacity L 1500
Machine size M 15.6*4.6*5.2
Net weight KG 130000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
