Xinghao 40-45 Ton Container Stacking Equipment
| US$2,500,000.00-3,300,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XHRS45B
Type
Cantilever Stacker & Reclaimer
Customize
Yes
Can Be Labeled
Yes
Load
45000/31000/16000kg
Lift Height
>5000mm
Condition
New
Load Capacity
45 Ton
Transport Package
Comply with Export Packaging Requirements
Specification
45 ton
Trademark
XingHao
Origin
China
HS Code
8427209000
Production Capacity
150-200
Product Description
Product DescriptionXINGHAO 45 Ton Handling Reach Stackers XHRS45B for Port Container
XINGHAO used to be TOP OEM factory for Reach Stacker and Empty Container Handler.
The XHRS45B reachstacker inherited from World TOP quality system, welding system, blanking system, production system, and design system etc, which has been tested by market more than 20 years.

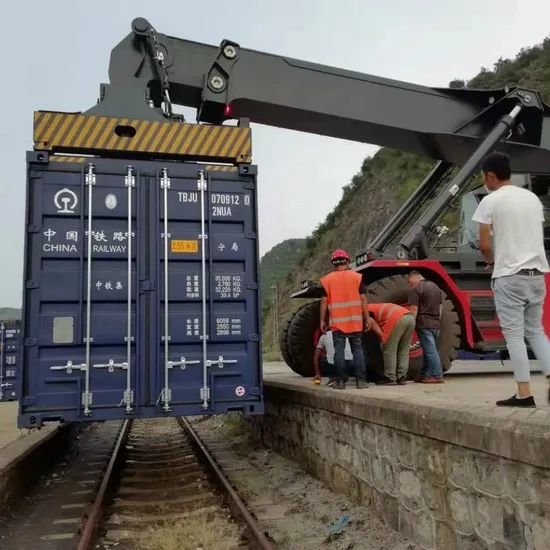

It is fashionable, high-end and powerful. Using key parts of internationally renowned brands, it has excellent performance and guaranteed quality. Using advanced control technologies, it is safe, reliable, comfortable and efficient. It is mainly used in the loading, handling and stacking operations of 20' and 40' ISO heavy containers and meets the requirements for high-intensity and long-term operations of containers at ports, docks, railway and highway transfer stations, storage yards, etc.
Product Parameters
| CHARACTERISTICS | ||
| Model | XH-RS45B | |
| Power unit | Diesel | |
| Operation type | Driver seated | |
| Load capacity (L1, L2, L3) | Q (kg) | 45000/31000/16000 |
| Load centre, first row (L1) | c (mm) | 1800 |
| Load centre, second row (L2) | C (mm) | 3860 |
| Load centre, third row (L3) | C (mm) | 6400 |
| Axle centre to spreader center (L1-1/2 high) | x (mm) | 2800/2600 |
| Wheelbase | y (mm) | 6400 |
| DIMENSIONS | ||
| Boom lift angle, raise/lowered | α/β(/°) | 61/0 |
| Height boom lowered | h1 (mm) | 4945 |
| Lift height (L1, L2, L3) | h3 (mm) | 15900/14100/11350 |
| Height, boom extended | h4 (mm) | 19000 |
| Height of cabin | h6 (mm) | 3900 |
| Height, operator's seat | h7 (mm) | 2840 |
| Towing coupling height | h10 (mm) | 600 |
| Twist lock height lowered | h13 (mm) | 1495 |
| Overall length with spreader | l1 (mm) | 11618 |
| Overall length | l2 (mm) | 8410 |
| Overall width | b1/b2 (mm) | 4180/3400 |
| Width of spreader 20'/40' | b3 (mm) | 6050/12150 |
| Ground clearance min. | m1 (mm) | 345 |
| Ground clearance, centre of wheelbase | m2 (mm) | 300 |
| Stacking aisle 20' containers | Ast (mm) | 10225 |
| Stacking aisle 40' containers Turning radius | Ast (mm) | 13050 |
| Min. pivoting point distance | Wa (mm) | 8605 |
| Min. pivoting point distance | b13 (mm) | 3400 |
| Wheelspan, front wheels | b10 (mm) | 3030 |
| Wheelspan, rear wheel | b11 (mm) | 2786 |
| WEIGHT | ||
| Weight (unladen/laden) | kg | 71400/116400 |
| Load on drive axle (unladen/laden) | kg | 36400/101900 |
| Load on steering axle (unladen/laden) | kg | 35000/14500 |
| PERFORMANCE | ||
| Travelling speed (unladen/laden) | Km/h | 25/21 |
| Gradeability (unladen/laden) | % | 30/28.8 |
| Tractive force (unladen/laden) | Kn | 325 |
| Lifting speed (unladen/laden) | m/s | 0.39/0.28 |
| Lowering speed (unladen/laden) | m/s | 0.39/0.39 |
| CABIN | ||
| Movable closed cabin | ||
| Equipped with A/C, cooling/heating functions | ||
| Noise level at driver's seat | dBA | 74 |
| ENGINE | ||
| Brand | CUMMINS | |
| Type | QSM11 | |
| Cylinder no./displacement | 6/10820 cm3 | |
| Rated power @ rated speed | 250kw @ 2100rpm | |
| Max. torque | 1674Nm@ 1500rpm | |
| Rated current of alternator | 150A | |
| Battery | 24V | |
| TRANSMISSION | ||
| Brand | ZF/5WG261 AUTO | |
| Type | Auto-shift/interlock | |
| Clutch type | Torque converter | |
| Gear no. | 5F/3R | |
| TYRES | ||
| Drive wheels | 18.00-25 40PR | |
| Steering wheels | 18.00-25 40PR | |
| Type | Pneumatic | |
| Pressure | 10 bar | |
| Quantity, front/rear | 4/2 | |
| TANKS CAPACITY | ||
| Hydraulic oil tank | L | 800 |
| Fuel tank | L | 500 |
| DRIVE AXLE | ||
| Brand | Axletech (Meritor)PRC7545W4S586C | |
| STEERING AXLE | ||
| Brand | AnQing | |
| Model | ||
| Steering | Double action cylinder | |
| BRAKE SYSTEM | ||
| Service brake | Hydraulic wet-disc | |
| Parking brake | Electric released disc brake, enabled when power off | |
| HYDRAULIC SYSTEM | ||
| Twin piston pump | ||
| Max. pressure: 310 bar | ||
| Load sensing system | ||
| Hydraulic cooler with electric motor | ||
| Separate brake oil tank | ||
| BOOM | ||
| 2x Dual action lift cylinders | ||
| 1x Dual action extension cylinder | ||
| SPREADER | ||
| Handling ISO 20'-40' containers | ||
| 2x damping cylinder | 2x gearbox & brake system | |
| Brand | SP45 | |
| Rotate degrees | -105°/+195° | |
| Sideshift | -800/+800mm | |
| TRUCK SAFETIES | ||
| Error display system | ||
| Counter system for containers | ||
| Weighing system (low precision) | ||
| Electric anti-overload system | ||
| Full can-bus control system | ||
| Direction gearshift interlock | ||
| Parking brake enabled when power off | ||
| Seat switch | ||
| SPREADER SAFETIES | ||
| Locking/unlocking only after correct landing | ||
| Lifting/lowering only when the 4 twistlocks on same position | ||
| Anticollision rotation limit switch | ||
