Desktop CNC Fiber Laser Cutting Machine Application for Metal Ms Ss Aluminium

Desktop CNC Fiber Laser Cutting Machine Application for Metal Ms Ss Aluminium

US$46,666.00-428,699.00 1 set (MOQ)

Basic Info.

Model NO.
JWM
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry, Construction Machinery
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Carbon Steel, Stainless Steel, Aluminum Copper
Structure Type
Single Table
Laser Classification
Fiber Laser
Laser Technology
Laser Cutting Machine
Machine Body
Qiaolian
Fiber Laser
Max Brand or Raycus or Ipg
Controller
Fscut4000e Ethercat Bus System
Laser Head
Intelligent Auto Focus Laser Head Blt421
Motor and Driver
Inovance Servo Motor and Driver
Precision Reducer
Germany Techmech
Linear Guide
German Rexroth/INA
Rack
Taiwan Yyc
Proportional Valve
SMC
Electronic Pieces
France Schneider
Water Chiller
Hanli
Stablizer
Huadong
Cutting Software
Cypcut E
Height Controller
BCS100
Cutting Thickness
0.1-40mm
Transport Package
Tray
Specification
1.5m*3m/2m*4m/2m*6m/2.3m*6m/2.5m*6m/2.5m*8m
Trademark
QIAOLIAN
Origin
China
HS Code
8456110090
Production Capacity
2000sets Per Year

Packaging & Delivery

Package Size
500.00cm * 230.00cm * 230.00cm
Package Gross Weight
6500.000kg

Product Description

desktop cnc fiber laser cutting machine application for metal ms ss aluminium Product Description
I.CNC Laser Cutting Machine Features
1. Open-type StructureMachine cutting process is totally visible. Easy to load and unload from front, left and right side.2. Advanced Appearance DesignEasy to install and quick to put into production, minimizing your waiting time for working; Designed as high-standard sealing style to prevent dust from entering in and components from being ignited.
II. Advantages 1.Steel Plate Welding Bed 1.Our CNC Laser Cutting Machine body is welded by plate. After welding, the stress is removed by one-time quenching. After natural cooling, the rough machining is performed, then the stress is removed by two-time quenching, and after natural cooling, the finishing is performed. The equipment within 13m is integral type, and the upper gantry milling machine is processed once.
Body advantage: it is more strong and stable. Using long time, it is also have high accuracy and ensure cutting accuracy.

2.Process dust extraction experts, ship-type box design, partitioned dust extraction, more concentrated and reasonable air ducts, and better dust extraction effect;


2. Cast Aluminum Beam
Adopts aluminum cast beam, light weight, good dynamic response, faster acceleration and better comprehensive cutting effect;
3.FSCUT4000E EtherCAT Bus System *Support basic technique of Fly cut, frog-leap lifting, kerf width compensation, lead line, micro-joint, pre-piercing, film cutting etc.*Provide fine cutting technique, smooth start and end in the toolpath cutting.*Support intelligent barrier avoidance, laser head frog-leap lifting in production.*Support scan QR import drawing, task scheduling, and multi-area production etc.*Maximum acceleration 1.5G.*Provide dual-Y drive position error detect function.

4.Intelligent bus control cutting head, Active Collision Prevention It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently; Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.

5.Imported Parts, Precision Guaranteed
Equipped with dualhigh-powered servo motors and drivers which from German Core transmission parts like speed reducer and gears are imported from Japan High-precision racks,guide rails and ball screws are produced by world-famous brands.


6. Quality Control System
Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company's factory quality standards;

Product Parameters
III. Parameters of CNC Laser Cutting Machine

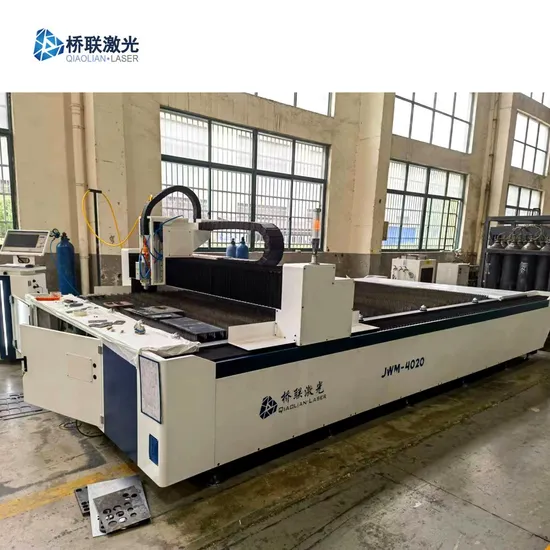

Model JWM3015 JWM4015 JWM4020 JWM6015 JWM6020 JWM6023
Power 6000W-12000W
Working Area (L*W) 3000*1500mm 4000*1500mm 4000*2000mm 6000*1500mm 6000*2000mm 6000*2300mm
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.01mm
Positioning speed 80m/min
Max. Acceleration 1G

*The above data are for reference only, subject to the actual product!
IV. Customers site


V. Cutting samples
