50Hz 10.5kv 1000kw Cummins Power Open/Silent Natural Gas Generator Set

Product Description

Genset working condition:
Acceptable ambient temperature: -25ºC~+45ºC
Relative humidity:<90%, 20ºC, Altitude: ≤500m
Normal working conditions:
Genset can run at rated power on the conditions:
Atmospheric Pressure: 100kPa, Ambient Temp: 20ºC, Relative Humidity: 30%.
Applied gas: Natural gas.
Acceptable fuel gas pressure: 5~20kPa
CH4 content ≥85%
Gas doesn't include free water or free materials (the size of impurities should be less than 5μm.)
Gas Genset Specification

Gas generator data
Genset model	U1GC1000-G
Continuous power (kW/kVA)	1000/1250
Connection type	3 phases 4 wires
Power factor	0.8 lagging
Voltage	10.5kV
Frequency (Hz)	50
Gas genset electrical efficiency	38%
Gas genset thermal efficiency	45%
Total efficiency	83%
Gas consumption at full load	9.47MJ/kWh
Lubricant oil consumption	0.36g/kWh
Voltage Stabilized regulation	≤±1.5%
Voltage Instantaneous regulation	≤±20%
Voltage Recovery time (s)	≤1
Voltage Fluctuation ratio	≤1%
Voltage Wave aberration ratio	≤5%
Frequency Stabilized regulation	≤1%(adjustable)
Frequency Instantaneous regulation	-10%~12%
Frequency Fluctuation ratio	≤1%
Net weight(kg)	13,980
Containerized type dimension(mm)	12.192×2.438×2.896

UK Deepsea controller DSE8620 MKII(Or ComAp controller IG500-G2)

The DSE8620 MKII represents the latest in complex load sharing & synchronizing control technology. Designed to synchronize a single genset with a mains (utility) supply, the DSE8620 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry.
The controller also has the option to be configured for use as a DSE8610 MKII Auto Start Load Sharing & Synchronizing Control Module. When converted for use as a DSE8610 MKII the unit provides generator to generator load share functionality.

Synchronization/Parallel Panel
Model	U1S1000
Capacity	2000A
Air circuit breaker brand	CHINT
Controller	DSE8620 MKII /ComAp IG500G2
Features:Automatically synchronize gas gensetsAutomatically unload the gen-setProgrammed start and stop gen-setGen-set monitoring and protectingsynchronize gensets with national grid(mains)/Multiple gensets paralleling.

40ft high containerized canopy

Features:ISO 40ft high container with CCS certificate.2. Top-quality of paint to guarantee good protection under hard weather. 3. Weather-proof, dust-proof, sound-proof, suitable for rigorous environment. 4. All canopy parts are designed with modular principles and canopy materials use strong steel board. 5. All metal canopy parts are painted by electrostatic polyester powder paint. 6. Efficient air intake and exhaust system to ensure stable output. 7. Scientific design and advanced techniques to reduce noise level to 75-85db(A), materials and its covers further ensure sound-absorbing efficiency and protection function. 8. Locks of canopy design are more convenient for the operation and maintenance also ensure the safety of gen-set more. 9. Lifting-eye and forklift design are easy for transportation. 10. Emergency stop push button outside of canopy. 11. Well-formed and compact design, the big built-in muffler makes the noise lower.

Automatic Oil filling, KENCO brand

Features: Automatically add lubricant oil for gas gen-set

Horizontal remote radiator

Standby remote radiator will run to cool engine when: 1. The heat recovery system is not working due to maintenance/repair. 2. Customer does not need hot water, but need gas genset to run to produce electricity only. 3. Engine coolant temperature is too high.

Heat recovery system(OPTIONAL)
Material	Stainless steel
Heat exchangers	Jacket water plate heat exchanger and exhaust heat exchanger
Electrical efficiency	38% at 1000kWel
Thermal efficiency	45%
Thermal power	1184kWth
Inlet water temperature	60ºC
Outlet water temperature	85ºC
Hot water flow rate	11.3L/s
Features: Increase the total efficiency. Hot water can be for the life and industrial use

Delivery time:Within 40 days after receiving deposit.PaymentT/T, 30% paid as deposit before production, 70% paid as balance paid before the shipment.WarrantyWe shall provide a warranty of 6000 running hours or 12 months from B/L date (whichever comes first), covering all manufacturing defects. We replace damaged parts caused by manufacturing faults or defected parts/materials, but excluding consumables parts and damageable parts due to customer's incorrect man-made operation. After expiration, we still provide technical and spare parts support with cost for maintenance.Training and commissioning serviceFree training can be provided in the factory by our gas power generation engineers. The training focuses on gas genset application, operation, and maintenance.
We can also send engineers to Customer's genset location site to do gas genset commissioning.
Scope of Supply

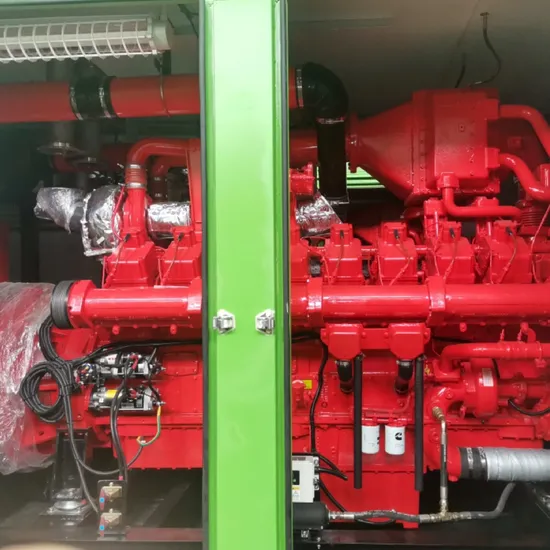

Brand new Cummins gas engine.
Brand new brushless Leroy Somer alternator.
Genset automatic controller, UK Deepsea DSE8620 MKII/ComAP controller.
40ft high containerized soundproof canopy.
Synchronization panel with CHINT motorized circuit breaker.
Gas train valves (Germany DUNGS gas regulator, solenoid valve, flame arrestor, ball valve).
Automatic oil filling system.
Oil heater and coolant heater.
Remote radiator.
Accessories list for each engine:

Items	Quantity
Silencers	2
Elbows	1 set
Screws and flanges	1set
Asbestos Pad	1 set
Anti-rust liquid	1
Genset starting free maintenance batteries, Battery charger, Battery cables	1 set
Standard toolbox	1
Documents list:
Gen-set operation manual, Genset maintenance manual	1 set
Engine part book	1
Alternator manuals, maintenance manuals, parts book	1 set
Genset installation drawings electrical system drawings.	1 set
ComAp IG-NT Controller instruction	1
Engine Certificate, Alternator Certificate, Gen-set Certificate	1
Gen-set Testing Reports	1
