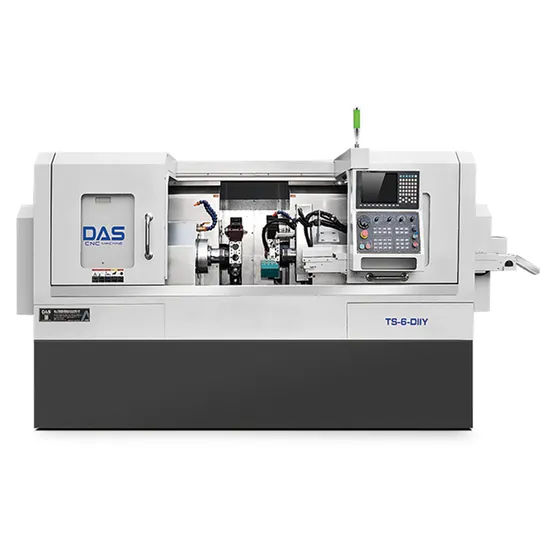

Das Ts-6-Diiy Y Axis Dual Spindle Bmt45 Servo Turret CNC Lathe
| US$110,750.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TS-6-DIIY
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Control System
Syntec/Fanuc/Siemens/GSK
CNC or Not
Yes
Metal Cutting
Yes
High Precision
Yes
Max Spindle Speed
0-3000
Max Swing Diameter
400
Max Cutting Length
600
X Axis Servo Motor Power
3.1
Z Axis Servo Moor Power
3.1
Y Axis Servo Motor Power
2.4
Tool Install
Bmt45
Pump Motor Power
750*2
Transport Package
Plywood Case
Specification
3250*2000*1900
Trademark
DAS
Origin
China
HS Code
8458110000
Packaging & Delivery
Package Size
3800.00cm * 2400.00cm * 2000.00cm
Package Gross Weight
7200.000kg
Product Description
CNC or not: CNCAutomatic or not: Auto
CNC Lathe Type: Dual Spindle Dual Channel turning and milling cnc lathe
Control System: SYNTEC
Main spindle/sub-spindle nose size: A2-5
Main spindle/sub-spindle bore(mm) :Φ56
Main spindle/sub-spindle Turret station: BMT45, 12stations
Tool change method: Random
Tool installation:BMT45
Main spindle/sub-spindle Chuck size Inch:6"/6"
Main spindle/sub-spindle speed( r/min): 0-4500(factory setting)
Max. Swing Diameter (mm): 400
Max. Turning length (mm): 600
Max. Turning Diameter (mm): 210
Main spindle/sub-spindle motor power (kw): 11 / 11(Low speed and high torque)
X1 / X2 servo-motor(kw): 3.1 / 3.1
Z1 / Z2 servo-motor (kw) 3.1 / 3.1
Turret drive motor (kw): 0.75 / 0.75
X1 / Z1 axis travel (mm): 500/ 370
X2 / Z2 axis travel (mm): 500/ 560
X/Y/Z axis fast feed speed (m/min): 20/20/10
Machine Power (kw): 54
Machine Weight (kg):5500
Machine Size(L*W*H) (mm): 3250x2000x1900
Certification: CE ISO
