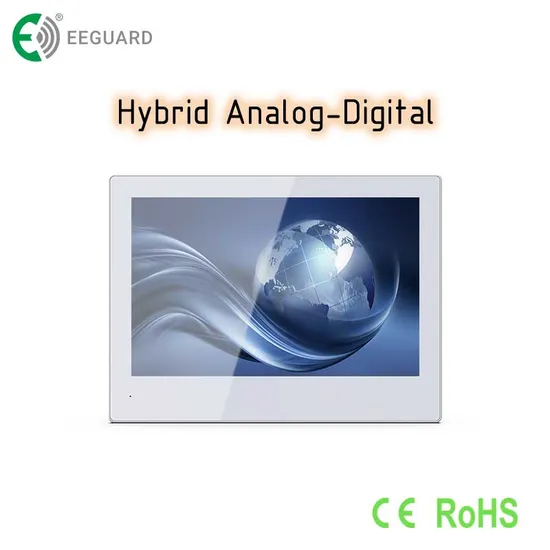

Hybrid Analog-Digital WiFi 8′′ IPS Video Doorphone Intercom Home Security System
Basic Info.
Model NO.
ER015HBTW
Color
Optional White/Black
Voice Service
With Voice Service
Installation
Surface-Mounted
Certification
RoHS, FCC, CE, ISO9001
Screen
8-Inch Colorful Screen
Resolution
1280X800
Image Capture
Supports
Video & Audio Capture
Supports
Mobile APP
Tuya Smart (Ios, Android)
Human Detection
Quad Screen Recording
IP/WiFi
Supports
Connection
4-Wire & IP
4-Wire Video Signal
Ahd / CVBS
Addtional Monitors Qty
Upto 10
Supports Camera
Onvif IP Cameras
Maximum Support
512GB SD Card
The Material
Plastic
Network Protocol
TCP/IP, SIP
Power Supply
Poe IEEE 802.3af ; DC12-15V, 12W ; AC100-240V,50/
Transport Package
10PCS/CTN
Specification
Carton Size 410*340*270mm
Trademark
OEM / ODM
Origin
China
HS Code
8517699000
Production Capacity
50, 000set/Month
Packaging & Delivery
Package Size
41.00cm * 34.00cm * 27.00cm
Package Gross Weight
6.100kg
Product Description
TCP/IP & 4-Wire WiFi 8'' IPS Video DoorPhone Intercom Home Security Systemhybrid analog-digital Detailed Photos
Size parameters
Wiring & installation diagram
Product Parameters
| Type | Analog-IP Hybrid |
| Screen | 8", IPS |
| Operation | Touch Screen |
| Home Button | / |
| Screen Resolution | 1280*800 |
| 4-Wire Video Signal | AHD / CVBS |
| Video Resolution | 1920x1080; 1280x720; 720x576(PAL); 720x480(NTSC) |
| Video Recording | Max to 3072x1728(1-25fps) |
| 4-Channel NVR | Yes |
| Human Detection | Quad screen recording |
| Motion Detection | Quad screen recording |
| 8-Channel Surveillance | Yes |
| Photo Recording | 1920x1080 |
| Mobile APP | Tuya Smart (iOS, Android) |
| Network | WiFi 2.4&5Ghz, LAN |
| Pluggable Panel Type | 4-Wire, IP |
| ONVIF Camera | Yes |
| Connecting Panels and Cameras | 8 |
| Connecting Monitors | 10 |
| External Micro SD Card | 512 GB |
| Power Supply | POE IEEE 802.3AF ; DC12-15V, 12W ; AC100-240V,50/60Hz |
| Working Temperature | 0°C to +50°C |
| Installation | Wall / Desktop Mount |
| Dimensions | 200x149x6.5mm (23.5mm) |
Our Advantages
Certifications
All our models are in compliance with CE, RoHS, REACH, you are welcome to visit our factory or take samples to test our quality.
website: eeguard.en.made-in-china.com
FAQ
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 500set/Model to print your logo & giftbox.
Q: How about your lead-time?
E: It's 2-5days for samples; It's about 30 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 15 months after the shipment.
