Cssd Medical Sterilization Solution Digital Large Display Pulse Vacuum Autoclave Price

Product Description

Product Description

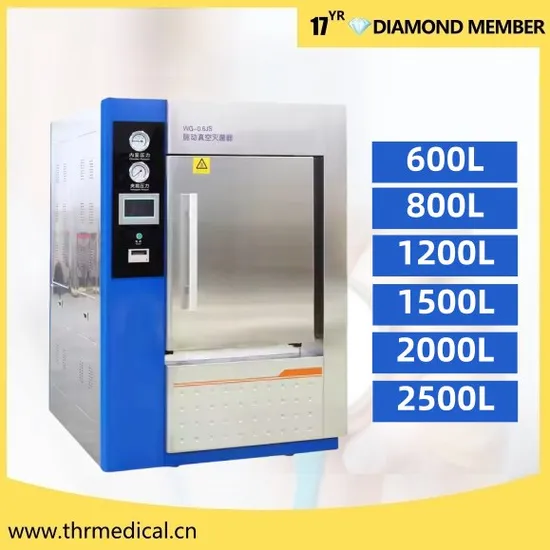

THR-WG Series Pulse Vacuum Autoclave Sterilizer
600L 800L 1200L 1500L 2000L 2500L THR-WG series pulsating vacuum sterilizers use saturated steam as the sterilizing medium, and relying on the physical property that saturated steam can release a large amount of latent heat and moisture during condensation, it renders items to be sterilized in a highly heated and humid state. After a period of heat preservation, purpose of sterilization is achieved. The effect of cold air on temperature is eliminated by means of pulsating vacuum exhaust, and finally vacuum dehumidiffication is realized in a jacket device to dry the sterilized items.
WG series pulsating vacuum sterilizers are mainly used in disinfecting supply rooms of hospitals, third-party disinfecting supply centers, and operating rooms, where medical devices, dressings, rubber, lumen devices, implantable devices, and liquids are sterilized.
• it is designed and manufactured in accordance with GB150 "the Pressure Vessel", GB 8599 "The Technical Requirements of Large Steam Sterilizer--Automatic Control Protocol", and TSG R0004 the "Safety and Technology Specification for Fixed Monitor Vessels" and related inspection procedures.
• Tank of the horizontal rectangular double-deck structure is made from S30408.
• Door sealing: Pneumatic sealing; both doors are interlocked and completely conform to the requirements of the specification.
• The equipment has standard GMP authentication interface. Sterilizer piping system: the pipeline is designed with the best configuration. By employing imported parts and quality domestic brands into main components.
Sterilizer control system: with the adoption of Siemens PLC plus Siemens touch screen, this system is easy to implement the program selection, parameter setting, equipment operation, report processing and other functions. It has perfect safety measures. The F0 value and the temperature time gives double guarantee for sterilization. A single parameter control is also available. It has a perfect sterilization records.
Technical Data and Utilitie

design pressure	0.245MPa	working pressure	0.225 MPa
design temperature	139ºC	working temperature	105-134ºC
vacuum	-0.09 MPa	temperature equilibrium	≤±1ºC
water source pressure	0.15-0.3 MPa	compressed Air pressure	0.3-0.7 MPa
steam pressure	0.3-0.7 MPa	power	AC380V/50HZ The three-phase and five-wire system

Size & Utilities

Model	Overall Size L×W×H(mm)	Chamber Size L×W×H (mm)	Steam Consumption (KG)	Tap Water Consumption (KG)	Power (KW)	Net Weight (KG)
THR-WG0.1	950×1200×1750	560×400×450	14KG	25KG	2+12KW	700KG
THR-WG0.15	1050×1200×1750	750×400×450	14KG	25KG	2+12KW	800KG
THR-WG0.2	1120×1305×1840	1000×450×450	16KG	30KG	2+24KW	850KG
THR-WG0.25	1100×1350×1900	800×600×600	18KG	35KG	2+24KW	900KG
THR-WG0.36	1300×1350×1900	1000×600×600	25KG	40KG	2+24KW	1000KG
THR-WG0.6	1500×1360×1950	1200×610×910	30KG	45KG	3+36KW	1400KG
THR-WG0.8	1800×1360×1950	1500×610×910	40KG	50KG	3KW	1600KG
THR-WG1.2	1750×1440×1950	1450×680×1180	48KG	55KG	4KW	1800KG
THR-WG1.5	2150×1440×1950	1850×680×1180	55KG	60KG	4KW	2000KG
THR-WG2.0	1950×1750×2200	1600×900×1400	65KG	65KG	4.5KW	2500KG
THR-WG2.5	2300×1750×2200	1950×900×1400	75KG	75KG	6KW	3000KG
THR-WG3.0	2700×1750×2200	2400×900×1400	90KG	90KG	8KW	3500KG
