Digital Measuring Tool Leather/Steel Plate Ultrasonic Thickness Testing Gauge

Product Description

Guangzhou Amittari instruments Co., LTD. specialize in manufacturing coating thickness gauge, ultrasonic thickness gauge, hardness tester, surface roughness tester, vibration meter, gloss meter, whiteness meter, reflectance meter, tint meter, lux meter, stroboscope, tachometer moisture meter, tension meter, sound level meter, anemometer, force gauge etc..

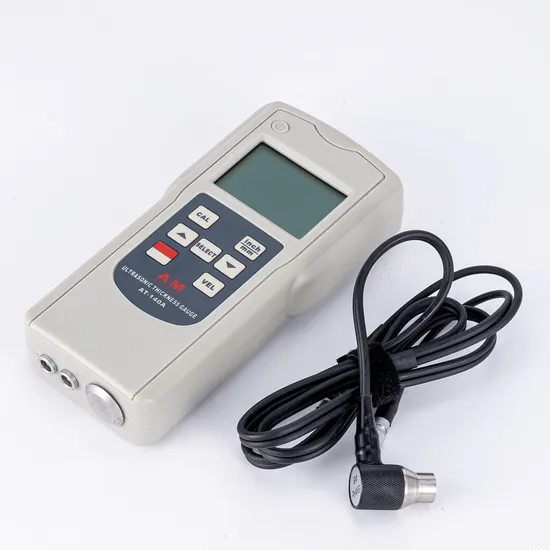

Digital measuring tool Leather/steel plate Ultrasonic Thickness Gauge AT-140A

Product Description

The Ultrasonic Thickness Gauge AT-140 series include two model; Using the latest high performance and low power consumption micro processing technology,applicable to measure the thickness of metal and other materials base on the ultrasonic operating principle.

Product Feature
* Coupling state prompt functions.
* Automatic shutdown and manual shutdown function.
* Automatic memory material code and sound velocity value, convenient use.
* Use USB data output with connection PC
* Provide Bluetooth data output choice.

Product Parameters

Resolution	AT-140A: 0.1 mm
	AT-140B: 0.01 mm
Range	AT-140A: 1.2~200mm (45# steel )
	AT-140B: 1.2~300mm (45# steel )
Accuracy	±(0.5%n+0.1)
Sound velocity	1000~9000m/s
Operating condition	Temp. 0~50
	Humidity: <80%)
Display unit	millimeters and inches
Size	140x70x30 mm
Power Supply	4x1.5vAAA (UM-4)Battery
Weight	130 g (Not including batteries)

Product Accessories

Standard Accessories	Main Unit
	5MФ8 Standard Sensor
	Coupling Agent
	Carrying Case
	Operation Manual
Optional Accessories	USB data output
	Bluetooth data output

Sensor Technical Parameters:

Probe Model	Characteristics		Measuring Range ( mm )	Diameter	Frequency	Operating Temperature
5MHz Φ8	Standard Configure Probe ( UTG-ST )		1.5 ~ 200 ( Steel )	Φ 8 mm	5M Hz	Normal Temperature ( 0 ~ 50 °C )
	Measurement of Round Pipe ( Outwall ) UTG-TP	R60	1.5 ~ 200 ( Steel )	Φ 8 mm	5M Hz	Normal Temperature ( 0 ~ 50 °C )
		R40	1.5 ~ 200 ( Steel )	Φ 8 mm	5M Hz	Normal Temperature ( 0 ~ 50 °C )
		R50	1.5 ~ 200 ( Steel )	Φ 8 mm	5M Hz	Normal Temperature ( 0 ~ 50 °C )
		R60	1.5 ~ 200 ( Steel )	Φ 8 mm	5M Hz	Normal Temperature ( 0 ~ 50 °C )
		R70	1.5 ~ 200 ( Steel )	Φ 8 mm	5M Hz	Normal Temperature ( 0 ~ 50 °C )
5MHz Φ6	Measurement of Workpiece in Small Diameter		1.2 ~ 100 ( Steel )	Φ 6 mm	5M Hz	Normal Temperature ( 0 ~ 50 °C )
5MHz Φ12	High Temperature Measurement ( UTG-HT )		3.0 ~ 200 ( Steel )	Φ 12 mm	5M Hz	Normal Temperature ( 0 ~ 50 °C )
2MHz Φ10	Measurement	Plastic	1.0 ~ 50	Φ 10 mm	5M Hz	High Temperature ( 60 ~ 300 °C )
		Cast Iron	1.5 ~ 40		2M Hz	Normal Temperature ( 0 ~ 50 °C )

Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
