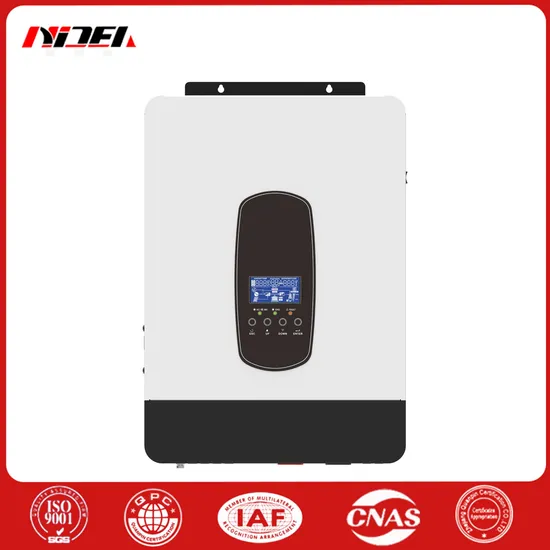

Sp Series 7000va/6200W Solar Household Photovoltaic Inverter

Product Description

SP series 7000VA/6200W solar household photovoltaic inverter
Pure sine wave inverter
Programmable supply priority for PV,battery or Gri
High PV input voltage range(55~450VDC)
Built-in Max110A(3.8KW&6.2KW)MPPT solar charger
Support BMS communication with Lithium battery
Overload,high temperature,inverter output short circuit protection
Cold start function
Intelligent fan speed adjustmen
Built-in anti-dust kit for harsh environment(optional)
WIFI&GPRS available for IOS and android
>Product Data Sheet

MODEL	SP-2200	SP-3200	SP-4200	SP-4200	SP-7000
Rated Power	2200VA/1800W	3200VA3000W	4200VA/3800W	4200VA/3800W	7000VA/6200W
INPUT
Voltage	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computers)
	90~280VAC(For Home Appliances)
Frequency Range	50 Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge Power	400VA	6400VA	8400VA	8400VA	14000VA
Transfer Time	10ms(for personal computers);20ms(for home appliances)
Waveform	Pure Sine Wave
BATTERY&AC CHARGER
Battery Voltage	12VDC	24VDC	24VDC	48VDC	48VDC
Floating Charge Voltage	13.5VDC	27VDC	27VDC	54VDC	54VDC
Overcharge Protection	15.5VDC	31VDC	31VDC	61VDC	61VDC
Maximum Charge Current	60A		80A	60A	80A
SOLAR CHARGER
Max.PV Array Power	2000W	3000W	6000W
MPPT Range @Operating Voltage	55~450VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	80A		110A	80A	110A
Maximum Efficiency	98%
PHYSICAL
Dimension.H*W*D(mm)	405*286*98		423*290*101		423*290*106
Net Weight(kgs)	5	55	6.8	6.9	8
Communication Interface	Two communication One RS485 port for BMS ports;AnotherRS485/RS232 forremote monitoring
OPERATING ENVIRONMENT
Humidity	5%to 95%Relative Humidity(Non~condensing)
Operating Temperature	-10ºC to 55ºC
Storage Temperature	-15ºC to 60ºC

FAQ
Q: Are you a factory or a trading company?
A: We are a factory with a production and sales history of 10 years for AC/DC power supplies, photovoltaic inverters, and uninterruptible power supplies. We warmly welcome your visit.
Q: When is the delivery time?
A: Generally speaking, the delivery time is between 7-30 days after receiving payment from the customer.
Accurate information depends on the product and quantity, and we can further communicate.
Q: Do you have a minimum order quantity requirement?
A: The minimum order quantity for most products is 10 units.
Q: How long is your warranty period?
A: We provide customers with a 2-year warranty
Q: Can you provide customized services?
A: yes. We have been involved in OEM and ODM projects since 2001.
Only in this way can we provide professional customized services to our clients.
Q: Do you have after-sales service?
A: Yes, we have an after-sales service team.
Our after-sales engineers can provide support and guidance through video or phone when needed.
Q: Do you conduct testing after production is completed?
A: Yes, our production engineering team will conduct testing after the goods are completed, and we will provide testing information to the customer for reference before delivery.
