Light Weight Fiberglass Plastic Reinforced Walkway Frp Grating FRP Car Wash Trench Frp Drainage Grating Floor Panel

Product Description

Product Description
Product Description

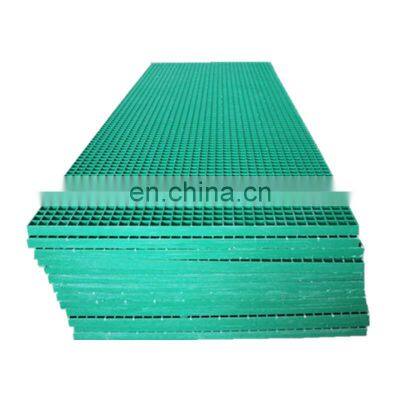

Light Weight Fiberglass Plastic Reinforced Walkway Frp Grating FRP Car Wash Trench Frp Drainage Grating Floor PanelFRP Molded Grating is made of vertical and horizontal continuous fiberglass fully soaked in unsaturated polyester resin giving perfect bi-directional mechanical properties. Combining unmatched corrosion resistance with strength, long life and safety, Molded Gratings provide the ultimate in reliable performance, even in the most demanding corrosive conditions. Besides it is easy to cut and install. LanYu offer the widest selection with panel sizes ,colors and slip resistant surfaces, Clients can avail FRP Gratings suiting your specific requirements.

Mesh Size (mm)	Full panel size (mm)	Thickness (mm)	Recommended Span (200kg/m2)
38.1x38.1mm (1.5''x1.5'')	1220x3660mm 1000x4038mm 1530x3130mm 1220x4007mm 1526x4046mm	25mm	≤800mm
		1220x3660mm 1220x4038mm	30mm	≤1000mm
		1220x3660mm 1530x4007mm 1220x4038mm	38mm	≤1300mm
Upper19x19mm Below: 38.1x38.1mm	1224x4042mm	30mm (double mesh layers)	-
50.8x50.8mm (2''x2'')	1220x4020mm	50mm	≤1700mm
100x25mm (4''x1'')	1010x4030mm	25mm	-

Fibreglass grating frp molded grating
FRP grating application include floor systems, walkways, work platforms, stairs, ramps, trench covers and catwalks, Lanyu integral, long-lasting anti-slip top surface makes the grating of choice in many Industries. It is preferred when slippery working conditions are present. Whether your are building a Power plant, Chemical plants, Marine engineering, Port Engineering, Lanyu will cover your project and stay in your budget.
FRP grating advantage:
● Corrosion Resistance
● Anti-slippery
● Light Weight but High Loaded Strength
● Various Sizes and Colors Available
● Easy Installation and Maintenance
Fibreglass grating frp molded grating
FRP Chemical Resistance Light Weight Corrosion Resistant FRP Fiberglass Reinforced Plastic Flooring Gratings
>> Exellent loadability
>> Lightweight, high impact
>> Fire resistant
>> Slip and age resistant
>> Corrosion & chemical resistant
>> Non-magnetic & insulation
Light Weight Fiberglass Plastic Reinforced Walkway Frp Grating FRP Car Wash Trench Frp Drainage Grating Floor PanelFRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
Packing & Delivery

Fibreglass grating frp molded grating
Packing	1. Protected by stretch film;
		2. Fasten by packing banding and packed on pallet
		3. Grating corners are protected by FRP angle or thick papercard.
Delivery	1. Stock grating: 3-5 working days.
		2.. Manufacturing: 1-2 weeks, or depends on the order quantity.

Welcome your inquiry about FRP grating anytime.Cathy is always here!
