Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Table Travel on X-Axis
750mm
Table Travel on Y-Axis
380mm
Table Travel on Z-Axis
360m
Distance From Spindle to Column
155-635mm
Transport Package
Wooden Case, No Need Fumigation, Plastic Cover
Specification
CE, ISO9001
Production Capacity
100sets/Month
Product Description

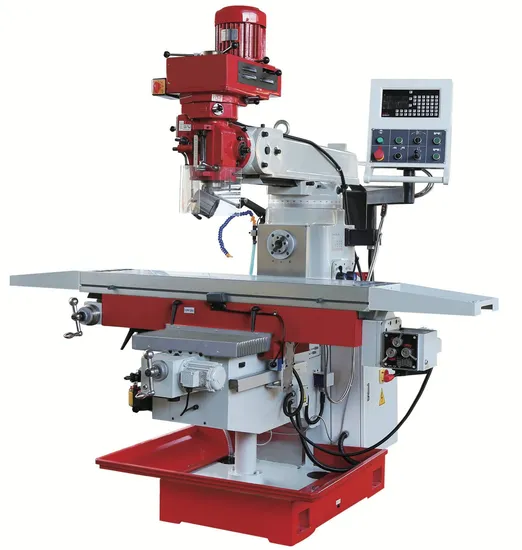

taiwan universal horizontal and vertical turret milling machine
Specification | Unit | X6325W | X6330W | X6333W |
Table size | mm | 1370*254 | 1370*305 | 1500*300 |
T slot | | 3/16/65 | 3/16/65 | 3/18/85 |
Longitudinal travel | mm | 750 | 800 | 1000 |
Cross travel | mm | 380 | 380 | 350 |
Vertical travel | mm | 360 | 360 | 360 |
Spinedle and ram distance | mm | 210 | 210 | 300 |
Spindle and table distance | mm | 0-400 | 0-380 | 0-360 |
Arm travel | mm | 400 | 400 | 500 |
Milling head tilting | degree | 90(left right) 45(front back) | 90(left right) 45(front back) | 90(left right) 45(front back) |
Spindle taper | | R8(V);NT40(H) | R8(V);NT80(H) | NT40(V.), NT40(H.) |
Spindle speed | r/min | 66-4540(V)/16steps; 40-1300(H)/12steps | 66-4540(V)/16steps; 40-1300(H)/12steps | 66-4540(V)/16steps; 40-1300(H)/12steps |
Spindle motor power | kw | 2.2(V);3(H) | 2.2(V);3(H) | 3.75(V.), 3(H) |
Overall size | mm | 1700x1600x2250 | 1700x1600x2250 | 2400x1700x2350 |
Net weight | kg | 1380 | 1450 | 1980 |
Standard accessories
milling chuck
drilling chuck
work light
reduction sleeve
machine vice
tools and tool box
draw bar
coolant system
Optional accessories:
3 axis DRO
dividing head
clamping kits
X,Y power feed
rotary table
Our Services
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
