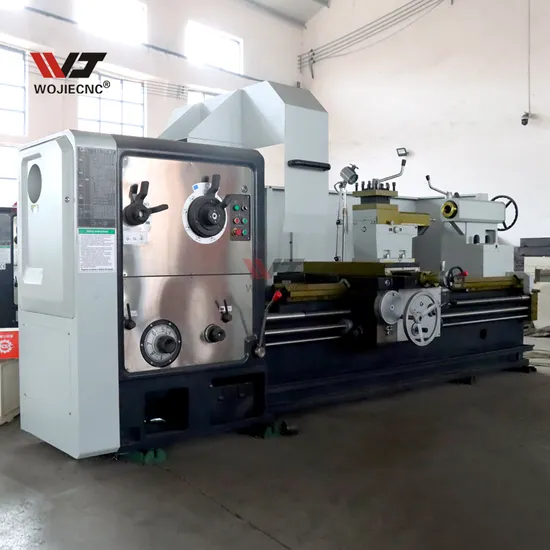

Robust Cw61100 Horizontal Heavy Duty Lathe – Superior Machining Performance

Robust Cw61100 Horizontal Heavy Duty Lathe – Superior Machining Performance

US$19,855.00
1-4 Sets
US$18,092.00
5-7 Sets
US$17,200.00
8+ Sets

Basic Info.

Model NO.
CW61100
Type
Horizontal Lathe
Processing Accessory
EAC
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001, EAC
Condition
New
Max.Swing Over Bed
1000mm
Max.Swing Over Cross Slide
615mm
Max.Turning Length
1300-17800mm
Bed Width
755mm
Diameter of The Spindle
130mm
Range of Spindle Speeds
3.15-315r/Min
Spindle Nose Type
A2-15
Number and Range of Diametrical Pitch Th
38:1/2-56dp
Sleeve Diameter of Tailstock
160mm
Sleeve Trip of Tailstock
300mm
Cone Hole Taper Tailstock Sleeve
Morse 6
Slide Fast Moving Spee D
935mm/ Min
Main Motor Power
22kw
L*W*H
5200*1650*1740mm
Net Weight
6000kg
Transport Package
Be Packed by The Plywood Case
Specification
5200*1650*1740mm
Trademark
WOJIE
Origin
China
HS Code
8458190000
Production Capacity
10 Sets/Month

Packaging & Delivery

Package Size
530.00cm * 180.00cm * 190.00cm
Package Gross Weight
6100.000kg

Product Description

Product Description
This series lathe machine is suitable for internal and external turning, tappering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot. This machine could machining steel, casting, nonferrous metals and etc. The dimensional accuracy of machined workpiece could reach to IT6-IT7, and with good surface roughness. The Machine with handle breaker, easy to operate, safe and reliable.
Product Parameters
Item
Unit
CW61100
CW61125
CW61160
Swing over bed
mm
1000
1250
1640
Swing over carriage
mm
615
865
1250
Maximum length of workpiece
mm
1500-18000
1500-18000
1500-18000
Maximum turning length
mm
1300-17800
1300-17800
1300-17800
spindle speeds(
r/min
3.15-315
3.15-315
3.15-315
Span of guideway
mm
755
755
755
Spindle nose
mm
A2-15(8XM22)
A2-15(8XM22)
A2-15(8XM22)
Spindle bore
mm
130
130
130
Taper hole of spindle

1:20/140
1:20/140
1:20/140
Number of forward turning speeds

21
21
21
Number of reverse turning speeds

12
12
12
Number and range of metric thread

44;1-120mm
44;1-120mm
44;1-120mm
Number and range of inch thread

31;28-1/4
31;28-1/4
31;28-1/4
Number and range of module thread

45:0.5-60mm
45:0.5-60mm
45:0.5-60mm
Number and range of diametrical pitch thread

38:1/2-56DP
38:1/2-56DP
38:1/2-56DP
Distance between spindle center-line and tool resting plane
mm
48
48
48
Section of tool shank
mm
45
45
45
Rapid travel speed(longitudinal)
mm/min
3740
3740
3740
Rapid travel speed(Transverse)
mm/min
1870
1870
1870
Rapid travel speed(Top slide)
mm/min
935
935
935
Diameter of tailstock quill
mm
160(6")
160(6")
160(6")
Travel of tailstock quill
mm
300(12")
300(12")
300(12")
Taper hole of tailstock quill

Morse 6
Morse 6
Morse 6
Main motor power
kw
22
22
22
Maximum weight of workpiece
kg
6000
6000
6000


Detailed Photos



Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
