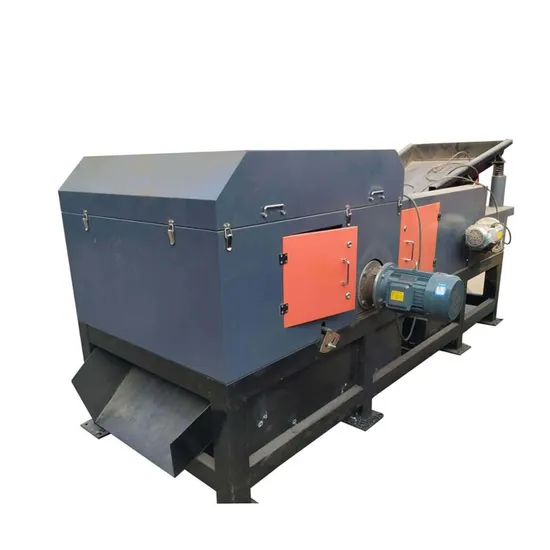

Non-Ferrous Metal Sorting Aluminum Copper Eddy Current Separator Machine Price

Product Description

Eccentric Eddy Current Separator For Sorting Waste Scraps And Flakes With Non-ferrous Metal Aluminum And Copper Eddy Current Separator can be widely used in the field of environmental protection such as waste disposal, waste electrical appliances recycling and non-ferrous metal processing industry. The non-ferrous metals are recovered from the crushing materials of the automobile dismantling plant, from the copper aluminum casting sand and smelting ash, and from the waste motor crushing materials; the non-ferrous metals are recovered from the incinerated printed circuit board, from the domestic waste, industrial waste, electronic waste treatment, waste plastic doors and windows, boiler bottom ash and other non-ferrous metals.https://jinlonghengji.en.made-in-china.com/product-list-1.html
Working Principle Metal Eddy Current Separator is designed based on the principle that conductor can produce induced current in high frequency alternating magnetic field. When the machine works, it will produce a high frequency alternating strong magnetic field on the surface of the sorting magnetic roller. When the non-ferrous metal of the conductor enters the magnetic field sorting area, it will induce a eddy current inside the metal block. The eddy current itself will produce a magnetic field in the opposite direction of the magnetic field. The non-ferrous metal (such as copper and aluminum) will leap forward along its conveying direction due to the repulsive force of the magnetic field, thus realizing Separation with other non-metallic materials, to achieve the purpose of separation, the main area of separation effect judgment is based on the material conductivity and density ratio value of the material is easier to separate.
Components of eddy current separator The eddy current equipment is composed of two parts: control and main body. The main part mainly consists of frame, motor, distributor, separator (the core part of the equipment) permanent magnetic drum, conveyor belt, conveyor drive drum, reducer and protective cover.
Products Advantage 1. Simple operation, automatic separation of metal and non-metal; reliable single power design, making the system compact and reliable;
2. The span of separable metal particles is large, usually between 3mm and 100mm;
3. Easy to install, customized according to the customer's needs, can be effectively connected with the new and existing assembly line;
4. Using high gradient rare earth permanent magnet system, the energy consumption is low and the maintenance is convenient;
5. According to the different turning direction of the rotor, different size materials can be sorted;
6. Various models are available (the width of the material tray can be 300 mm to 1500 mm).
Model of Parameter Eddy Current Separator Applicance After being broken by the crusher, the municipal domestic waste, industrial waste, electronic waste, glass scraps, waste plastic doors and windows, urban wood waste, boiler bottom ash, various metal mixtures, recycling of copper, aluminum and other non-ferrous metals in the waste automobile (after being sliced by the shredder), and material treatment and sorting in the environmental protection industry.
Usage of Eddy Current Separator 1. Before using the eddy current separator, operators need to check whether the parts of the equipment are tightened completely to prevent the parts from loosening and falling off during the peeling process, which will affect the normal operation. When delivering waste metal waste to the equipment, the equipment shall be idled to make sure there is no abnormality, and then all kinds of waste shall be delivered in turn. 2. The eddy current separator of the waste metal separation equipment should pay attention to the selection of the waste metal, control the quantity well, do not suddenly more and suddenly less, and ensure that there is no such high hardness things as stones, iron blocks, so as to avoid damaging the function of the parts of the equipment. 4. By wiping, cleaning, lubricating, adjusting and other general methods, periodic nursing was carried out for the eddy current separator of waste metal separation equipment to maintain and protect the performance and technical status of the equipment. 3. When the eddy current separator of waste metal separation equipment has started to work, do not stand on the side of the equipment to avoid accidental injury. Details Images
Eddy current separator maintenance instructions 1. Check and tidy up in time. Clean the machine at the end of each day. Check whether the screws of each part are loose or there are worn parts, such as claws and screens. 2. Fill with grease, usually install the cap oil cup on the bearing. Under normal circumstances, as long as the oil cup cover rotates 1 / 4 turn every 2 hours, the grease in the cup can be pressed into the bearing. For closed bearings, grease can be added every 300 hours. After long-term use, if the grease is replaced, clean the bearing and replace with new grease. When the equipment is working, the temperature of the bearing shall not exceed 40 ° C. If the bearing temperature continues to rise under normal operating conditions, the cause should be found and the fault resolved. 3. Carefully clean the material to be damaged. It is forbidden to mix copper, iron, lead and other metal parts, large stones and other sundries into the damage room.
