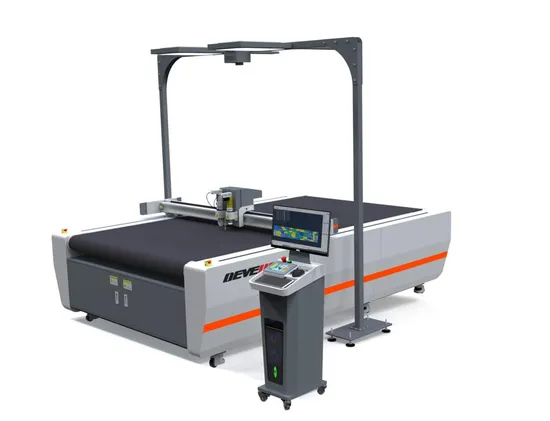

CNC Car Interior Car Seats Car Foot Mats Trunk Mats Die Cutting Machine with Easy Operation

Product Description

Automatic cutter machine cnc oscillating knife cutting machine for cut printed carpet car mat floor mats curtain silicone mat rug
Carpet and mat cutting machine description
Our company is a supplier of large-scale carpet and floor mat cutting solutions. This model is designed for special-shaped carpet cutting. We independently develop an industrial vision system, automatically scans the printed patterns, and then automatic edge-finding cutting . The industry's top linear guide drive system and flexible tool changing system are suitable for cutting carpets of different material shapes without making molds. Customized cutting solutions to meet the production needs of different carpets. Cutting long-haired carpets does not damage the hair, ensuring the quality of the carpet, which can greatly improve the quality of the product and enhance the competitiveness of the product.
It is equipped with automatic feeding system, CCD camera image recognition system and projection positioning system, which realizes automatic extraction of image outline, automatic positioning and cutting, and solves the difficult problem of printing fabric cutting and irregular material cutting.
Quickly cut a variety of printed fabrics, striped textiles, and genuine leather with oscillating knives or drive-wheel knives. Our digital oscillating knife cutting machine has a maximum cutting speed of 1700mm/s, a maximum cutting thickness of 45mm, and a repeatability of 0.02mm.
Deveup cnc carpet mat cutting machine is suitable for cutting printed carpets, floor mats, car mats, yoga mats, artificial turf, plush carpet, chenille rug, chemical fiber carpet, textile carpet, PVC coil mat, patchwork carpet and etcParameters:

Model	DO1625FB/1830FB/2030FB ( Support customization )
Working area	1600X2500mm/1800X3000mm/2000X3000mm
Maximum cutting speed	1700mm/s(according to different cutting materials)
Precision	±0.01mm
Cutting thickness	45mm ( Support customization )
Material management	Automatic feeding
Fixed material method	Vacuum + zone adsorption
Various tool combinations	Round knife/oscillating knife + punching + marking
	Oscillating Knife + Round Knife + Chamfering/Creasing/Kissing/Drag Knife
Cutting materials	Printed carpets, floor mats, car mats, yoga mats, artificial turf, plush carpet, chenille rug, chemical fiber carpet, textile carpet, PVC coil mat, patchwork carpet and etc
Transmission system	Drive mode of servo motor + precision reducer; rack drive; Japan guide rail
Voltage	220V/380V ±10%, 50Hz/60Hz
Supported file formats	PLT, DXF, AI, etc.

Advantages:
1. It can get equipped with automatic feeding work platform and super discharge system, which saves time for manual typesetting, improves work efficiency, and saves 10% of materials;
2. The traditional manual cutting efficiency and precision can no longer meet the needs of the market. The cutting accuracy and efficiency of the carbon fiber cloth automatic cutting machine can meet the needs of different industries;
3.It adopts the advanced oscillating knife cutting machine technology, the edge of the cut will not appear yellow and scorched, there is no odor at the processing site, and the cutting edge is smooth;
4. High degree of intelligence, combining automatic feeding, automatic nesting and automatic cutting system, which reduces production costs and improves production efficiency.
Various cutter heads can meet different material cutting requirements:
Our cnc digital knife cutting machines are mainly for cutting various flexible materials such as carbon fiber, fiberglass, carbon fiber, leather, cloth, EVA foam, soft glass, prepreg, carbon felt, rubber, graphite sheet, silica gel, sound insulation, carton box, paper, honeycomb profiles, etc. With a variety of tools and pens to meet the cutting needs of different materials, and provide a variety of personalized cutting services.
Machine Details: Colorful & touch control operation panel, with more intuitive operation interface, which can directly input processing data, set processing speed and knife depth, support screen automatic protection, and protect processing data,feature-rich and user-friendly operation A variety of tool combinations, equipped with intelligent prop interchange system, can cut different materials to achieve different tasks, and multiple tool heads can work individually or in concert. Powerful function, fast running speed, high processing accuracy, truly multi-purpose machine. We use CNC gantry machining center for planing and milling. Our bed has the characteristics of heavy weight, good load-bearing capacity and high hardness, which ensures the accuracy and stability of the oscillating knife cutting machine at high speed. We guarantee that the machine will not be deformed in at least 10 years. The beam adopts the extrusion process of aviation aluminum alloy die, which ensures the stability and high precision of machine operation at high speed, especially suitable for some industries that require high precision, such as sealing gasketsImported famous brand helical gear rack, quenching and hardening treatment. High precision, strong load-bearing capacity, smooth running at high speed and less noise.Taiwan PMI 20mm high precision linear guide, high positioning accuracy, high repeatability. Low friction resistance, high rigidity four-way load design, high speed and long time operation to maintain high precisionSafety protection device. Highly sensitive collision avoidance system and red light brake system. When the machine is cutting at high speed, it can effectively protect safety of the operator. The worktable is a high precision and strength aluminum honeycomb vacuum absorption worktable. Cooperate with high power vacuum pump to fix the material. Imported Holland 4mm Felt
To protect the vacuum table and blades when machine working. Cut resistance, good softness, will not scratch the product, non-slip
High power vacuum pump to fix material. The vacuum pump runs automatically when the machine is working. Use top quality Japan Panasonic servo motors and drivers(X-axis double servo motor driving + precision reducer drive). Strong power, long life, and high precision.It has an automatic feeding conveyor for rolls cutting. After cutting the material on the table. The feeding table automatically rolls forward to pull the material behind the table. and keep cutting. No need to manually pull the material forward. The cutting process also does not need to be interrupted, and with automatic deflection function. Increased efficiency and reduced manual work.
More Applications, please contact us for solutions:
Why Choose Us
We provide customers with automated production equipment that replaces skilled workers and reduces labor costs.
We equip our machines with automated typesetting software that provides customers with an optimal layout plan, maximizes material utilization and avoids wasted material.
Our equipment is easy to operate. The digitalized processing transforms "old-fashioned" repetitive work (typesetting, changing size, etc.) into one operation, making it more "user-friendly," reducing employee turnover and its negative effects on production.
Digital production enables a seamless cooperation between machine and man that has never before been possible.
The efficiency of our machines is unparalleled, the supply cycle is shortened and our customers are once again leaders in a highly competitive industry.
