Semi automatic 5 gallon 3 barrels / bottle washing machine

Product Description

Product Description
Semi automatic 5 gallon 3 barrels / bottle washing machine
Product Description
Functions and features:
Manual feed semi automatic gallon bottle washing.The worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed. Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish. Heating function could be switched on/ off as client's needing.
Main machine show:

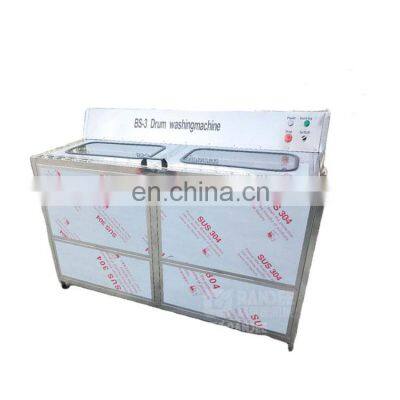

Semi automatic inside and outside brusher washing machine
Note: This machine operated by manual and is suitable for cleaning inside and outside of 5 gallon bottle.
BS-3 / 300bph 5 gallon washing machine without decapper
Brusher
Motor and water pump
Main technical parameters:
Air pressure: 0.6MPa
Numbers of brush: 24PCS( inside and outside, top and bottom)
The sealing material: SUS304
Suitable bottle: 5 gallon(Φ270×490×56mm)
Output: 300bottles per hour
Dimension: 1500x750x1150mm
Power: 3.67kw
Voltage: 220v or 380v 50Hz
Weight: 220KG
Related product

	Semi automatic 5 gallon / 20L PET bottle blow molding machine: Semi automatic Blowing Machine for 90BPH-180BPH from 5 gallon bottle with one cavity, 5L bottle with 2 cavity can be also used in this blowing machine
RO System: Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
	80-2000BPH 5 gallon water filling line This 5 gallon water machine is the host device in barreled production line. There are racks, water tanks, pipes, water pumps, cylinders, transmission, electrical and other components,in order to complete the empty barrel washing, filling, capping and other actions, through multi-channel rinsing step, quantitative filling, automatic taking cover and capping, all action of the whole machine is controlled by computer control, realize stable flushing effect, accurate filling volume, the sealing effect of the capping.

Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable 5 gallon water filling machine or complete 5 gallon water production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: How to start a water factory business ? What's my budget?
A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 6000liters/hr, etc, then we can know to choose which model for you, like QGF-80, QGF-120, QGF-150, QGF-300, QGF450, QGF-600,etc.
Q3: How to confirm the bottle shapes that is very attractive for your customer ?
A3: Our engineer can design 5 gallon bottle shapes with your company Logo for you.
Q4: Which kinds of machines included in one complete 5 gallon water production line?
A4: Semi auto or Automatic Decapping machine, internal and external brush washing machine, main 5 gallon washing filling capping machine, automatic labeling machine (optional) light checker, shrink tunnel, feeding bottle conveyors, bottle out conveyors.
Q5: Are you a trading company or a manufactory?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q7: If you buy our machines, can you offer us wear-out spare pats?
A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
