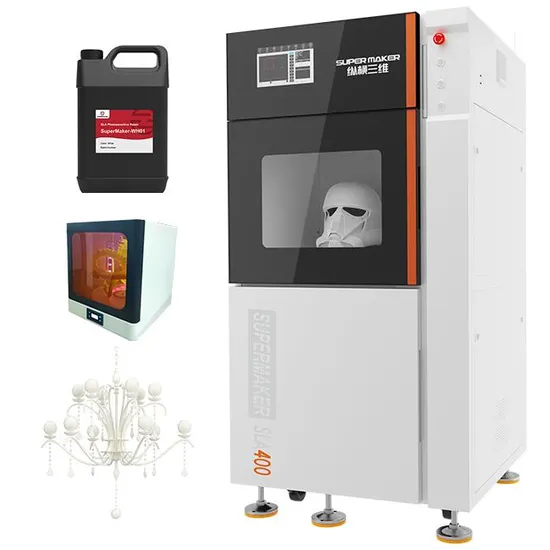

Super Maker Industrial SLA 3D Printer Printing Size 400*400*350mm SLA 3D Printer
Basic Info.
Model NO.
SLA400
Precision
100-200mu
Thickness
50-150mu
Printer Material
Resin
Forming Technology
SLA
Operating System
Windows 7
Product Name
Supermaker SLA400
Scanning Speed
Max 8000mm/S
Printing Size
400*400*350mm
Software
Voxel Dance
Technology
Stereolithography(SLA)
Galvanometer
High-End Digita Lgalvanometer
Laser
Customized UV Laser
Transport Package
Wooden Case
Specification
880*870*1750MM
Trademark
SUPERMAKER
Origin
China
HS Code
8485200000
Production Capacity
10 Sets/Month
Product Description
| Product Model | Super Maker SLA400 | Material | 355nm photosenstiive resin materials |
| 3D Technology | Stereolithography Apperaance | Forming Space | 400mm ×400mm ×350mm |
| Machine Size | 880*870*1750MM | Divided into layer thickness | 0.05mm-0.15mm |
| Gross Weight | Around 320kg (Without the materials) | Forming speed | MAX 180g/h |
| laser | Customized UV laser | Resin Tank | Replaceabled and upgrade-able |
| Galvanometer | High-end digital galvanometer | Power Supply | 220V ,50HZ |
| Spot Size | <0.2mm ;Between 0.1mm to 0.2mm | Rate Input Power | 650W |
| Scanning mode | Galvo scanning dynamic focus | Operating system | Operating system |
| Scraper | Vacuum suction scraper | Network type and protocol | Ethenet , TCP/IP |
| Scanning Speed | Max 8000mm/S | Data interface | slc |
| Liquid level detection system | Laser level sensor | Forming accuracy | Part size <100mm:L±0.1mm |
| Part size ≥100mm: | |||
| L±0.1%×L | |||
| Set the theoretical dimensions of the measured part of the part L:Part size <100mm:L±0.1mmPart size ≥100mm:L±0.1%×L*(The actual accuracy of the parts will vary due to factors such as printing parameters, part geometry, dimensions, materials, andenvironment. ) Key features of the SLA400 Advanced 3D Technology: Utilizes the stable and efficient SLA (Stereolithography) molding process, ensuring industrial-grade printing speed and quality. Compact and Efficient Design: With a smaller overall dimensions compared to other industrial SLA equipment with the same forming size, the SLA400 saves valuable space without compromising on performance. Internal Dehumidification Device: Maintains a constant temperature and humidity within the printer, eliminating the need for additional humidity equipment and ensuring consistent print quality. User-Friendly Interface: Features a large 10-inch screen and keyboard for easy operation, along with an internal camera for monitoring the printing process. High-Speed Printing: Offers scanning speeds between 6000mm/s to 10000mm/s, allowing for rapid production of complex and detailed parts. Customizable Forming Space: With a forming space of 400mm x 400mm x 350mm (customizable), the SLA400 can accommodate a variety of project sizes and requirements. Versatile Material Compatibility: Compatible with a wide range of photosensitive resins, enabling diverse printing applications. Stable and Automated Process: The SLA400 operates with a fully automated process, reducing the need for manual intervention and ensuring consistent output. Enhanced Control System: Equipped with intelligent control methods that improve efficiency, stability, and expandability of the control system. Recommended Applications: Ideal for electronics and electrical appliances, auxiliary medical care, hand board manufacturing, architectural design, cultural creativity, toy animation, and jewelry. The SuperMaker SLA400 is the perfect blend of innovation, performance, and reliability, making it a top choice for businesses and professionals looking to enhance their 3D printing capabilities. | |||
