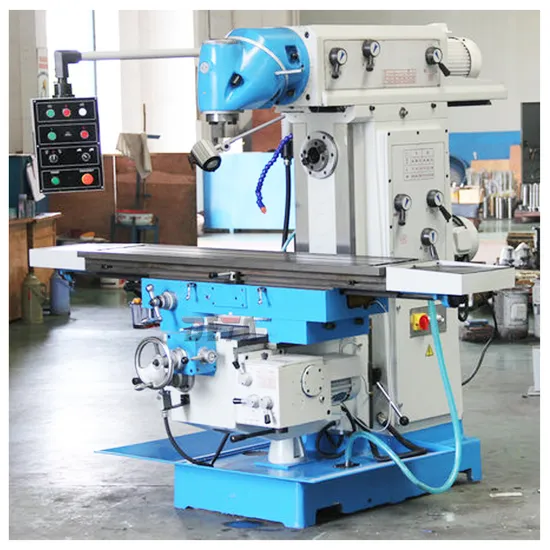

X6436 360X1600mm Wotable Universal Milling Machine for Metal
Basic Info.
Model NO.
X6436
Type
Tool Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Customized
Milling Cutter Structure
Customized
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Taiwan Turret Milling Head ISO40 Spindle Milling M
Model
X6330
Table Size
305*1370mm, 305*1500mm
Spindle Taper
ISO30
Spindle Speed
65-4500rpm
Spindle Motor Power
3.7kw 5HP
Delivery Time
2 Months
Warranty Time
12 Months
Voltage
380V
RAM Travel
500mm
Color
Blue and White
Key Word 1
Milling Machine for Metal
Key Word 2
Turret Milling Machine
Key Word 3
China Milling Machine
Spindle Travel
127mm
Transport Package
Wooden Pallet
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description
X6436 360x1600mm Wotable Universal Milling Machine For Metal| Items | Unit | X6436 |
| Table size | mm | 1600x360 |
| T slot no./width/distance | no | 3/14/95 |
| Max. load of Table | kg | 400 |
| swivel angle of table | degree | ±35º |
| table Longitudinal travel(manual/auto) | mm | 1300 |
| table Cross travel (manual/auto) | mm | 300 |
| table Vertical travel(manual/auto) | mm | 400 |
| Spindle taper | ISO50 | |
| spindle speed /step -- Vertical | rpm | 60-1750 |
| --Horizontal | rpm | 58-1800 |
| swivel angle of swivel head | degree | 360º |
| Distance from vertical spindle axis to column surface | mm | 220-720 |
| Distance from vertical spindle nose to table surface | mm | 170-570 |
| Distance from horizontal spindle axis to table surface | mm | 0-400 |
| Distance from horizontal spindle axis to ram bottom | mm | 175 |
| ram travel | mm | 500 |
| Longitudinal/cross feed | mm / min | 25-800 |
| Vertical feed /step | mm/min | 8-267 |
| Longitudinal/cross rapid speed | mm / min | 1200 |
| Rapid Traverse vertical | mm/min | 400 |
| main motor | kw | 4 |
| (X/Y/Z) feed motor | kw | 1.1 |
| coolant motor | W | 90W |
| Packing size | mm | 2070x2260x2250 |
| Machine weight | kg | 2450 |
