Laboratory Stainless Steel Homogenizer Machine150MPa High Pressure Homogenizer Machine
| US$14,464.00-15,785.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
D150
Application Area
Daily Chemical
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Stirring Type
Diving
Type
Pressure Homogenizer
Warranty
1 year
Working
High Speed Mixer
Frequency
20-25 kHz
Power
950 W
Included Tip (Φ)
Ф 6
Optional Tips (Φ)
Ф 2, 3, 10, 15
Crushing Capacity
0.5-600 Ml
Duty Ratio (%)
0.1-99.9 %
Power Supply
220/110 VAC 50 Hz/60 Hz
Mixer Type
Homogenizer
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Contact
Specification
contact
Trademark
Drawell
Origin
China
Production Capacity
500PCS/Month
Product Description

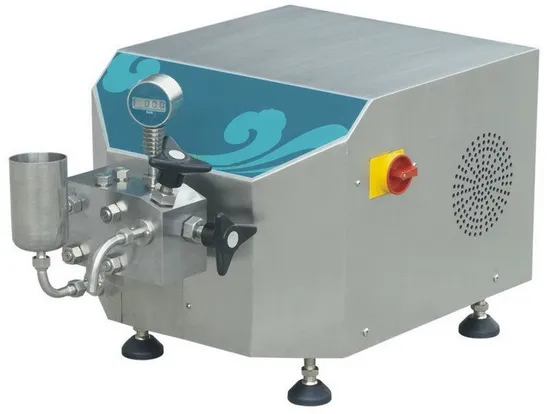

Product Description D150 Laboratory High Pressure HomogenizerIt is used for dairy, food & beverage, fruit juice, pharmaceutical, biotechnology and other industries. The machine has a built-in circulatory cooling system. A secondary homogeneous module and a homogeneous valve for your different applications.
Specifications:
| Maximum working pressure | 1200 bar/120 Mpa/17400 psi |
| Maximum design pressure | 1500 bar/150 Mpa/21750 psi |
| Maximum viscosity of products | 2000 cp |
| Maximum flow capacity | 12 L/h |
| Minimum working volume | 30 ml |
| Cooling | Built-in cooler |
| Suction times per minute | about 140 times |
| Material largest feed particle size | 100 um |
| Maximum product temperature | 90 °C |
| Motor Power | 1.5 KW/380 VAC/50 Hz |
| Power supply | 3 phase 4 lines 380 v / 50 hz |
| Dimensions | L800 x W460 x H450 mm |
| Weight | 120Kg |
| MODEL | DW-IID |
| Frequency | 20-25 KHz |
| Power | 950 W |
| Included Tip (Φ) | Ф 6 |
| Optional Tips (Φ) | Ф 2, 3, 10, 15 |
| Crushing Capacity | 0.5-600 ml |
| Duty Ratio (%) | 0.1-99.9 % |
| Power Supply | 220/110 VAC 50 Hz/60 Hz |
| Features | Using PWM control switching power supply. Power continuously adjustable. Capable of storage 50 set of experimental parameters. |
| Power Supply chassis Size and Weight | 400×280×220 mm; 12.2 Kg |
| Mainframe Weight | 14.3 Kg |
| Speaker compartment Size & weight | 275×250×480 mm,8.04 Kg |
| Packing Size | 534×295×435 mm |
