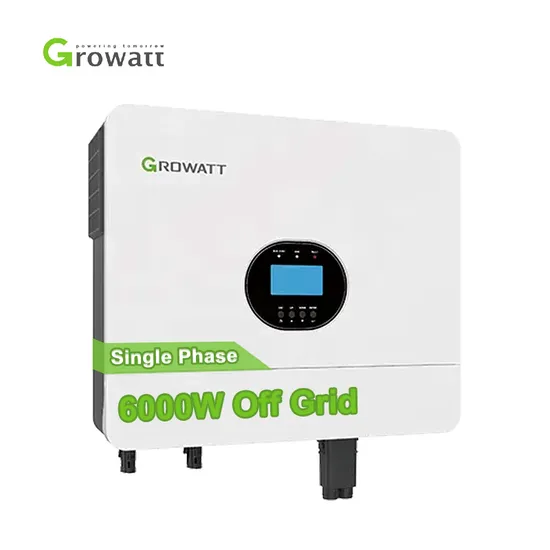

Growatt DC Pure Sine Wave MPPT 6kw 12kw off Grid Hybrid Inverter
Basic Info.
Model NO.
SPF 6000ES PIus/SPE 12000ES
Phase
Single
Output Power
>1000W
Certification
CE, ROHS
Brand
Growatt
Type
DC/AC Inverters
Power Source
Solar Power
Nature of Wave String
Sine Wave Inverter
Battery Voltage
48V
Battery Type
Lithium/Lead-Acid
Rated Power
6000W/12000W
Parallel Capability
9 Units
Waveform
Pure Sine Wave
Maximum PV Array Power
8000W/15000W
Maximum Solar Charge Current
100A/250A
AC Input Voltage
230V
Frequency Range
50Hz/60Hz
Protection Degree
IP20
Product Name
Growatt off Grid 6kVA 12kVA Inverter
Keyword
Solar Inverter for Home
Transport Package
Wooden Box / Carton Packing
Specification
460/395/132mm
Trademark
Growatt
Origin
China
HS Code
8543709990
Production Capacity
10000units/Day
Product Description
Product DescriptionProduct Parameters
| Datasheet | SPF 6000 ES Plus | SPE 12000 ES Plus |
| Battery Voltage | 48VDC | |
| Battery Type | Lithium/Lead-acid | |
| Inverter Output | ||
| Rated Power | 6000VA/6000W | 12000VA/12000W |
| Parallel Capability | Yes, 6 units maximum | Yes, 9 units maximum |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |
| Efficiency (Peak) | 93% | 95% |
| Waveform | Pure sine wave | |
| Transfer Time | 10ms typical,20ms Max | |
| Solar Charger | ||
| Maximum PV Array Power | 8000W | 15000W |
| MPPT Range @ Operating Voltage | 120VDC ~ 450VDC | 60VDC~480VDC |
| Number of Independent MPP Trackers/ Strings Per MPP Tracker | 2/1 | |
| Max. input current per MPP tracker | 16A | 27A |
| Maximum PV Array Open Circuit Voltage | 500VDC | 550VDC |
| Maximum Solar Charge Current | 100A | 250A |
| AC Charger | ||
| Charge Current | 80A | 250A |
| AC Input Voltage | 230VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| Physical | ||
| Protection Degree | IP20 | |
| Dimension (W/H/D) | 460/395/132mm | 550/465/149.8mm |
| Net Weight (kgs) | 13.5 | 20.44 |
| Operating Environment | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Altitude | <2000m | |
| Operating Temperature | 0°C - 55°C | |
| Storage Temperature | -15°C - 60°C | |
Project Show
Packaging & Shipping
Company Profile
This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries. The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Features
1. Rated power 6KW, power factor 1
2. MPPT ranges 120V~450V, 500Voc
3. High frequency inverter with small size and light weight
4. Pure sine wave AC output
5. Solar and utility grid can power loads at the same time
6. With CAN/RS485 for BMS communication
7. With the ability to work without battery
8. Parallel operation up to 6 unit (only with battery connected)
9. WIFI/ GPRS remote monitoring (optional)
