Z3080X20A Z3080X25A Large Heavy Duty Radial Arm Drill Machine for sale

Product Description

Z3080X20A Z3080X25A Large Heavy Duty Radial Arm Drill Machine for sale
Product Description
Product description: hydraulic clamping Hydraulic transmission Hydraulic pre-selection Electrical machinery double insurance Product Parameters

Product main technical specifications:

specifications	Units	Z3080*20A	Z3080*25A
Max. drilling diameter	mm	80	80
Distance from spindle nose to table surface	mm	350-1570	350-1570
Distance between spindle axis and column surface	mm	510-2000	480-2500
Spindle travel	mm	400	400
Spindle taper	MT	6	6
Spindle speeds range	(r.p.m)	16-1600	16-1600
Spindle speed step		16	16
Spindle feeding range	(r.p.m)	0.04-3.20	0.04-3.20
Spindle feeding step		16	16
Rocker rotary angle		+/-90°	+/-90°
Main motor power	kw	7.5	7.5
Movement motor power	kw	1.5	1.5
N/W	kg	7000	9500
Overall dimensions(L*W*H)	mm	2980*1250*3300	3500*1450*3300

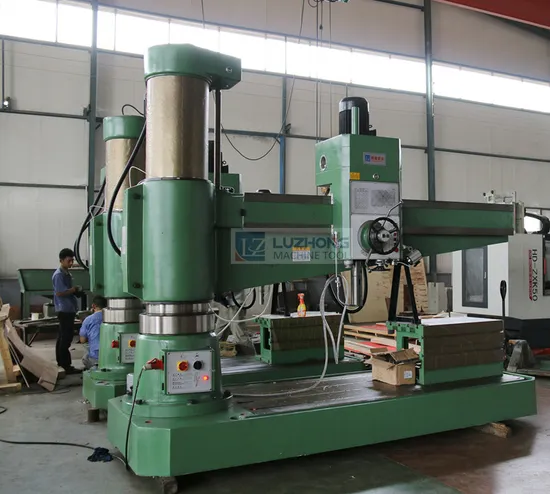

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
