Insulated Nl Brass Male and Female Terminal Block
| US$0.10-0.50 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
NL5.5-5
Application
Conduct Electricity
Character
Environmental Protection
Species
Terminal
Production Process
Cold Pressing
Shape
U
Interface Type
Hdr
Certification
UL
Brand
Longyi
Transport Package
Standard
Specification
OTHER
Trademark
LONGYI
Origin
China
HS Code
8536900000
Production Capacity
1000000000kpcs/Year
Product Description

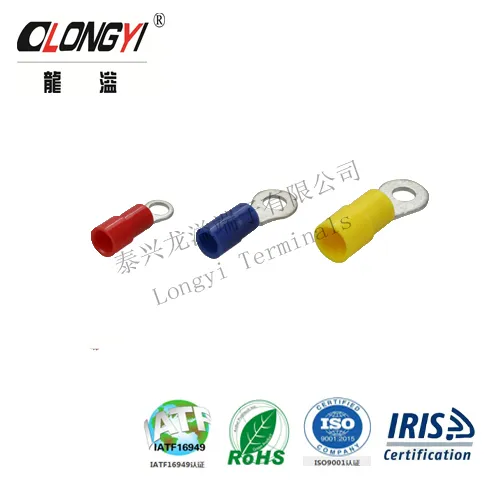

Ring insulated terminals1, cable lugs are suitable for the connection of copper conductors (section 1.25-5.5mm2) in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
6, Wire specification/rated: According customer required
The main products take references to the technical standards and quality requirements of advanced industrial countries such as America, Japan, German, France. Our products are widely applied in all kinds of electric cabinets, transformers, electric equipment, wiring harness manufacture, railway, communication, ship industry, aircraft and, PV, wind power,etc.,at home and abroad. About 50 % of the products are exported to more than 100 countries and regions, such as Asia, European,America, Africa,etc., and our products are trusted by more than 800 famous companies, such as ZTE Corporation, Huawei Telecommunications, Haier Electronics, Toshiba Transformer, Siemens electrical appliances, etc
| PART NO | ITEM NO | WIRE RANGE | DIMENSIONS | |||||||
| AWG/MCM | mm 2 | ΦE | ΦD | Φd | W | B | L | COLOR | ||
| LY0020-0001 | NL1.25-3 | 22-16 | 0.25-1.65 | 3.7 | 4.0 | 1.7 | 5.5 | 10.4 | 17.3 | RED |
| LY0020-0002 | NL1.25-3A | 3.2 | 4.0 | 1.7 | 5.5 | 10.4 | 17.3 | |||
| LY0020-0003 | NL1.25-3M | 3.7 | 4.0 | 1.7 | 6.6 | 10.4 | 20.3 | |||
| LY0020-0004 | NL1.25-4 | 4.3 | 4.0 | 1.7 | 8.0 | 10.4 | 21.8 | |||
| LY0020-0005 | NL1.25-4M | 4.3 | 4.0 | 1.7 | 6.6 | 10.4 | 20.3 | |||
| LY0020-0006 | NL1.25-5 | 5.3 | 4.0 | 1.7 | 8.0 | 10.4 | 21.8 | |||
| LY0020-0007 | NL1.25-6 | 6.4 | 4.0 | 1.7 | 11.6 | 10.4 | 27.5 | |||
| LY0020-0008 | NL1.25-8 | 8.4 | 4.0 | 1.7 | 11.6 | 10.4 | 27.5 | |||
| LY0020-0009 | NL1.25-10 | 10.5 | 4.0 | 1.7 | 13.6 | 10.4 | 31.8 | |||
| LY0020-0010 | NL2-3 | 16-14 | 1.04-2.63 | 3.7 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | BLUE |
| LY0020-0011 | NL2-3A | 3.2 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | |||
| LY0020-0012 | NL2-3M | 3.7 | 4.6 | 2.3 | 6.6 | 10.4 | 19.8 | |||
| LY0020-0013 | NL2-4 | 4.3 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | |||
| LY0020-0014 | NL2-4M | 4.3 | 4.6 | 2.3 | 6.6 | 10.4 | 19.8 | |||
| LY0020-0015 | NL2-5 | 5.3 | 4.6 | 2.3 | 9.5 | 10.4 | 22.3 | |||
| LY0020-0016 | NL2-6 | 6.4 | 4.6 | 2.3 | 12.0 | 10.4 | 27.3 | |||
| LY0020-0017 | NL2-8 | 8.4 | 4.6 | 2.3 | 12.0 | 10.4 | 27.3 | |||
| LY0020-0018 | NL2-10 | 10.5 | 4.6 | 2.3 | 13.6 | 10.4 | 30.8 | |||
| LY0020-0019 | NL3.5-4 | 12-10 | 2.63-4.60 | 4.3 | 5.6 | 3.2 | 9.5 | 13.3 | 26.3 | YELLOW |
| LY0020-0020 | NL3.5-5 | 5.3 | 5.6 | 3.2 | 9.5 | 13.3 | 26.3 | |||
| LY0020-0021 | NL3.5-6 | 6.4 | 5.6 | 3.2 | 12.0 | 13.3 | 27.7 | |||
| LY0020-0022 | NL3.5-8 | 8.4 | 5.6 | 3.2 | 12.0 | 13.3 | 27.7 | |||
| LY0020-0023 | NL5.5-3 | 12-10 | 4.60-6.64 | 3.7 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | YELLOW |
| LY0020-0024 | NL5.5-4 | 4.3 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | |||
| LY0020-0025 | NL5.5-5 | 5.3 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | |||
| LY0020-0026 | NL5.5-6 | 6.4 | 6.6 | 3.5 | 12.0 | 13.5 | 32.5 | |||
| LY0020-0027 | NL5.5-6S | 6.4 | 6.6 | 3.5 | 12.0 | 13.5 | 29.2 | |||
| LY0020-0028 | NL5.5-8 | 8.4 | 6.6 | 3.5 | 15.0 | 13.5 | 34.5 | |||
| LY0020-0029 | NL5.5-10 | 10.5 | 6.6 | 3.5 | 15.0 | 13.5 | 34.5 | |||
| LY0020-0030 | NL8-3 | 8 | 6.64-10.52 | 3.7 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 | RED |
| LY0020-0031 | NL8-4 | 4.3 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 | |||
| LY0020-0032 | NL8-5 | 5.3 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 | |||
| LY0020-0033 | NL8-6 | 6.4 | 8.3 | 4.5 | 11.0 | 17.5 | 31.5 | |||
| LY0020-0034 | NL8-8 | 8.4 | 8.3 | 4.5 | 14.0 | 17.5 | 36.0 | |||
| LY0020-0035 | NL8-10 | 10.5 | 8.3 | 4.5 | 18.0 | 17.5 | 39.5 | |||
