High-Quality Wire Drawing Equipment for 1.8mm to 0.8mm Wires

Product Description

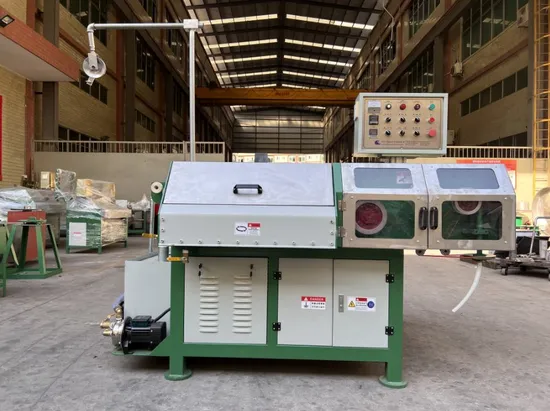

Model: VT-21X
Product: Small Diameter Wire Drawing Machine (1.8mm-0.8mm)
1. Parameter Overview:

Item	VT-21X
Inlet wire diameter	Φ1.8mm
Outlet wire diameter	Φ0.8mm
Main motor power	5.5kw
Voltage(V)	3×380(-5%+10%)
Frequency(Hz)	50 (±2%)
Cooling method	steeped
Speed control	Inverter control
Wire speed	260m/min
Die No	21
Machine elongation ratio	8%
Machine dimension	2100*1000*1380mm
Machine weight	800kg
Capacity	≈1T/8hr

2. Application: Ideal for both leaded and lead-free solder wire drawing applications, offering versatility across different materials.
3. Brief Introduction:
1) Control Options: Choose between a state-of-the-art PLC control box or a traditional multi-functional scientific control box to meet your operational needs.
With the PLC control box, you achieve a high level of automation. Inputting and retrieving data becomes seamless, labor costs reduce significantly, and an integrated finished product weighting function adds convenience. The PLC system encompasses all traditional functionalities.
Features include start and stop, emergency stop, fault indicators, wire break stop, power on/off, heating controls, directional functions, speed adjustment, and more. Precision instruments monitor each aspect, enhancing operational efficiency and safety.
Comparison: PLC Control Box vs. Traditional Control Box
2) Robust Construction: The machine frame is crafted from high-quality thick boards, ensuring durability with annealing & boring processes for enhanced performance. Annealing removes residual stress, preserving the frame's integrity under pressure. Permanent fixes ensure precise alignment of axis and roller, while boring guarantees exact centering, resulting in stable, vibration-free operation for continuous, break-free wire drawing with superior quality.
3) High-Density, Durable Roller:
Constructed from raw material forged into high-density work blanks, these rollers promise longevity. Post-annealing stress relief, CNC precision sizing, and chroming ensure a smooth surface, enhancing wire shine and minimizing breaks. Inverter control provides stability, boosting drawing quality and saving energy by up to 25%.
4) Advanced Cooling & Heating System: Maintain optimal lubricant oil temperature to ensure exceptional drawing quality. Our design includes both spray and immersed lubrication, reducing residues and ensuring a brilliant finish on the outlet wire.
5) Victory's Unique Diamond Drawing Die: Crafted from human-made diamond material for exceptional hardness and wear resistance, our die has a low friction coefficient and low energy consumption. Precision CNC processing, annealing, and specialized techniques enhance performance and longevity.
6) Innovative Weightier: Victory's specially designed weightier accurately measures finished product weight, streamlining production management efficiently.
Company Introduction:
Victory Technology International Ltd. is a global leader in the design and manufacturing of solder wire processing equipment, including Extruders, Solder Wire Drawing Machines, and Solder Powder making equipment such as Atomizing Machines and Ultrasonic Vibro Sifters. Our cutting-edge Solder Paste equipment, Pure Zinc Wire Processing Machines, and Zinc Alloy Processing equipment, including Continuous Melting and Casting Furnaces, Alloy Extruders, and Big Bobbin Winding Machines, set us apart.
With two decades of industry experience, our company has earned numerous patents and developed a comprehensive, scientific quality management system, backed by a robust R&D team. Our collaborations in Europe and the United States enable us to continuously integrate advanced technologies and designs, enhancing our products' performance and innovation.
With a registered capital of 10 million yuan, our self-built modern standard workshop spans 33,000 square meters in the picturesque Dalang Town, Dongguan City. Our strategic location offers convenient transportation and a beautiful environment, establishing us as a large-scale, professional machinery manufacturer and one of the top 50 key enterprises in Dalang town.
Boasting a registered capital of 10 million yuan, our expansive, modern workshop covers 33,000 square meters in Dalang Town, Dongguan City. Located at No. 208 West Scenery, we enjoy excellent transportation links and a stunning environment, positioning us as a leading machinery manufacturing enterprise and one of the 50 key enterprises in Dalang Town.
From 0 to 100, experience the epitome of unparalleled quality with our meticulously controlled manufacturing process, ensuring every product meets the highest standards. Choose us as your premier supplier for similar equipment and be confident in your decision. We warmly invite both new and long-standing clients to consult and negotiate, joining us in witnessing the prowess of the revolutionary Section torch!
During the developing, we have introduced advanced technology from the European ,Japan ,Taiwan, So as to improve our product's performance , meanwhile ,we adopt original components during the manufacture process , which are not only appropriated by many old customers ,but also won us more and more new&old customers ,with those advantages,our products have been selling well in the East&South Asian ,European, American and Japaneses markets .
Main Products:
Solder Equipment:
Our extensive solder equipment range includes casting rods, extruders, rolling mills, wire drawing machines, melting furnaces, tin machines, ball machines, hemispheric machines, take-up machines, tin printing machines, anode rod casting machines, and anode rod cutting machines, designed to cater to all your production needs.
Tin powder equipment
Our tin powder equipment features cutting-edge melting furnaces, precision milling machines, and efficient vibrating screens, among other technologically advanced solutions.
Paste Equipment
Explore our paste equipment range, including vacuum emulsifying machines, solder paste mixers, and hydraulic discharge machines, engineered for optimal performance and reliability.
Pure zinc line equipment
Our pure zinc line equipment suite includes the state-of-the-art cast zinc smelting furnace, precise furnace thermostat wires, single head drawing machines, zinc wire rolling mills, zinc wire drawing machines, and versatile drum machines for efficient operations.
Zinc Alloy equipment
Our zinc alloy equipment comprises advanced IF furnaces, bar thermostatic ovens, extruders, rolling mills, wire drawing machines, and closed market lines, ensuring exceptional functionality.
Special alloy wire equipment
Our premium special alloy wire equipment includes high-performance silver wire traction machines, silver wire rolling mills, silver wire drawing machines, and horizontal take-up machines, guaranteeing precision and excellence.
Vibrating screening equipment
Our vibrating screening equipment range features shaker squares, circular vibrating screens, ultrasonic vibration sieves, inclined vibrating sieves, and more, ensuring efficiency and consistency.

Company Strength:
1. For nearly two decades, Victory Technology has been at the forefront of equipment design and manufacturing, specializing in electronic soldering equipment, complete plants for solder powder, paste, wire, bar, and ball production, as well as pure zinc wire and special alloy wire plants.
High yielding Tin Silver copper alloy wire drawing machine
2. As an industry pioneer, Victory Technology tirelessly updates and enhances its machining facilities and craftsmanship, ensuring our customers receive top-tier equipment.
3. Victory Technology is committed to marrying customer requirements with modern technologies to achieve perfection.
4. With unmatched integration capacity, Victory Technology consistently offers the most suitable equipment to meet our customers' diverse needs.
5. By adopting state-of-the-art manufacturing facilities, such as CNC machining centers, shearing machines, NC laser cutting machines, NC milling machines, grinding machines, and punching & bending facilities, Victory Technology ensures rapid, precise production.
