Heavy Duty Longspan Warehouse Shelf for Industrial Storage Solutions

Product Description

Heavy Duty Longspan Warehouse Shelf for Industrial Storage Solutions
iRacking Longspan Shelving is a strong, durable, versatile and economical shelving system that looks good and minimises lost space from uprights making it ideal for a wide variety of applications from archives to automotive, factories, warehouses, retail, wholesale and commercial.
Features of Longspan Shelving:
Only high-quality RAW STEEL, by largest steel factories in China, is used for our racking products. A big scale of output allows us in a good position to control lower product costs on a basis of same high quality level. A wide range of different racking types to suit different storage needs. Free but expert advice & proposed racking solutions for your kind reference. Quick delivery. Within 25 days for ordinary order quantity.

Loading Capacity	200-800 kg UDL/level as general, up to 1,000b kg UDL/level as special request
Racking Height	1,800-3,000mm as general, up to 11,000mm as special request
Racking Depth	500-800mm as general, up to 1,200mm as special request
Beam Length	1,500-2,500mm as general, up to 3,000mm as special request
Racking Finish	Powder Coated Finish or Galvanised Finish for Steel Panels and upright Frame
Packing Details	Standard export seaworthy packing

*UDL = uniformly distributed load
Product Show

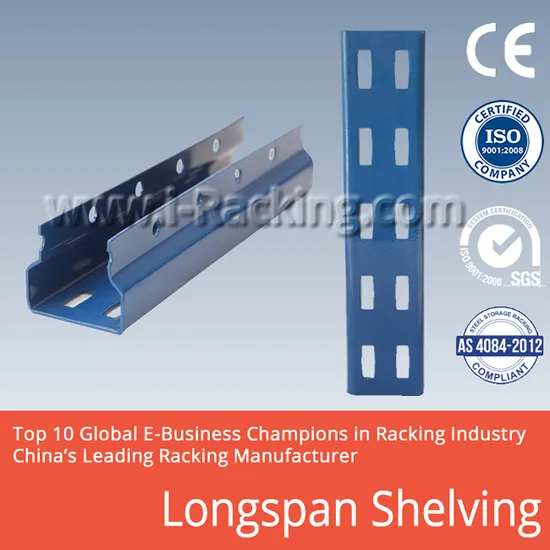

Product Detais: The main components of Longspan Shelving System are uprihts, step beams, connectors, steel panels and accessories. Step beams are the horizontal components on which the load is directly deposited and on which the shelves are fitted in order to store small-sized products.
iRacking provides an extensive range of step beams which covers any storage need, in terms of size, load type and capacity. Beams are joined to uprights by means of connectors which fit into upright slots. To different loading capacity, 2-hooker or 3-hooker connectors are adopted.Each beam includes two safety pins to prevent beam accidental dislodgement & falling.
Each level of longspan racks is made up of 2 or 3 steel panels according to the beam length and the weight of the products to be stored. iRacking provides two types of steel panels. Option 1. powder coated finish; option 2. pre-galvanized finish.
Reinforcements backside with much bigger loading capacity.
Who We Are iRacking Co., Ltd. (NANJING IRACKING MANUFACTURING CO., LTD.), located in the city of Nanjing, China, is a professional manufacturer and supplier in the field of shelving & racking systems, storage equipment & accessories, and storage solutions and services.
Not only can we help to improve your partial storage work and operation speed, but also do the whole work of building a logistic center for you. We provide more than storage equipment.
You can send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please inform us of the following information for quick quotation

1.	Drawing (if available)
2.	Size of your warehouse (width, length, clear height) or your warehouse plan drawing
3.	Size of racking (H*W*L)
4.	How levels of the racking?
5.	Loading capacity of each level?
6.	(RAL) Color you want.
