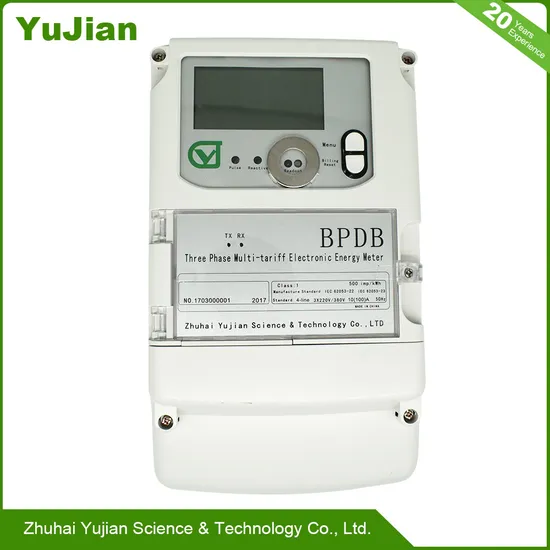

Three Phase Multi-Tariff Electronic Energy Meter
Basic Info.
Model NO.
1703000001
Usage
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Multi-rate Watt-hour Meters
Electric Equipment
Three-phase Three-wire
Theory
Electronic Meter
Power Meter Connection
Feed-through Type
Measured Signal
Continuous Wave
Type
Energy Meter
Certification
RoHS, ISO, CE
Customized
Customized
Transport Package
Box Packing
Specification
290mm*170mm*84.5mm
Trademark
YG
Origin
Made in China
HS Code
9028901000
Production Capacity
2000W
Product Description
Main parameters:1.1 Specification and impuse constant
| Type | Reference voltage | Rated current | Impulse constant |
| Three Phase Multi-Tariff Electronic Energy Meter | 220V | 5(6)A | 5000 imp/kWh |
| 220V | 50(100)A | 500 imp/kWh | |
| 220V | 10(100)A | 500 imp/kWh | |
| 110V | 5(6)A | 10000 imp/kWh | |
| 57.7V | 5(10)A | 20000 imp/kWh |
1.2 Accuracy level -Active Power: class 1-Reactive Power: class 2
| Loading current | Power factor | Basic error (%) 1.0class |
| 0.05Ib~ Imax | 1.0 | <±0.6 |
1.3 Electric Parameters
| Operation voltage | 0.7 Un≤U≤1.2 Un | |
| Basic meter | Voltage line power consumption | ≤ 2W,10VA(single-phase) |
| Current line power consumption | <4VA(single-phase) | |
| with power carrier module(non-read the meter) | Voltage line power consumption | ≤ 2W,10VA(single-phase) |
| Current line power consumption | <4VA(single-phase) | |
| without module | Backup battery lifespan (display at power off) | >1years |
| with power carrier module | Backup battery lifespan(display of power off) | >1years |
| Backup battery parameter | 3.6VDC 800mAh | |
| current at the battery was power off | ≤100µA | |
1.4 Climate Condition
| Normal operating temperature | 0ºC~+50ºC |
| Extreme operating temperature | 0ºC~+70ºC |
| Saving and transporting temperature | -25ºC~+80ºC |
| Saving and working humidity | ≤85% |
Detailed Images:
