UHP400 UHP450 UHP500 UHP550 UHP600 Graphite Electrode with Nipple UHP Graphite Electrode for Eaf Arc Furnace

UHP400 UHP450 UHP500 UHP550 UHP600 Graphite Electrode with Nipple UHP Graphite Electrode for Eaf Arc Furnace

US$3,500.00-4,200.00 10 Tons (MOQ)

Basic Info.

Model NO.
graphite electrode
Nipple Type
3tpi, 4tpi, 8tpi
Type
Graphite Electrodes
Carbon Content
High-Carbon
Grade
UHP
Forming Way
Extruded Graphite
Composition
80% Needle Coke
Crystal Morphology
Graphitized
Transport Package
Wooden Case 1or 2PCS
Specification
different size
Trademark
XS
Origin
China
HS Code
8545110000
Production Capacity
2000 Tons/Month

Product Description


UHP400 UHP450 UHP500 UHP550 UHP600 graphite electrode with nipple UHP graphite electrode for EAF arc furnace
Our factory provides graphite electrodes of different specifications with diameters from 50-900mm (2 '- 36'), including Regular power graphite electrode (RP), impregnated graphite electrode, high power graphite electrode (HP) and ultra-high power graphite electrode (UHP).
We have a complete set of graphite electrode production line. The graphite electrode of our products has the advantages of compact structure, good electrical and thermal conductivity, strong oxidation resistance and corrosion resistance, low resistivity and large current load resistance. It is widely used in heavy industrial electric arc furnace, steel plant, foundry and other related industries.
Product Paramenters
UHP Graphite Electrode

Items Specific Electric Resistance <= µΩ·m Flexural Strength >=MPa MOE<= GPa CTE( 100-600ºC) <= 10-6/ºC ASH<= DIAMETER AND LENGTH Bulk density >=g/cm3 Needle Coke Content
%
Standard ( YB/T 4089-2015 ) E 4.5-6.2 10-16 10-14 1.1-1.5 0.2 250mm-700mm
1800mm-2700mm
1.66-1.72 45-90%
N 3.0-4.2 21-30 15-20 0.9-1.2 1.75-1.82
Factory Supply E <=6.0 10-16 10-16 1.5 0.2 >=1.67 50%-100%
N <=4.0 21-30 14-18 1.2 >=1.78

HP Graphite Electrode
Items Specific Electric Resistance <= µΩ·m Flexural Strength >=MPa MOE<= GPa CTE( 100-600ºC) <= 10-6/ºC ASH<= DIAMETER AND LENGTH Bulk density >=g/cm3 Needle Coke Content
%
Standard ( YB/T 4089-2015 ) E 5.2-6.5 10.5-15 9-12 1.5-2.2 0.2 200mm-700mm
1800mm-2700mm
1.66-1.72 20-35%
N 4.0-4.5 20-26 14-18 1.2-1.5 1.75-1.82
Factory Supply E <=6.5 10.5-15 9-12 1.5 0.2 >=1.66 25%-40%
N <=4.0 20-26 14-20 1.2 >=1.78


Other Grade Graphite Electrodes , welcome your specific inquiry !

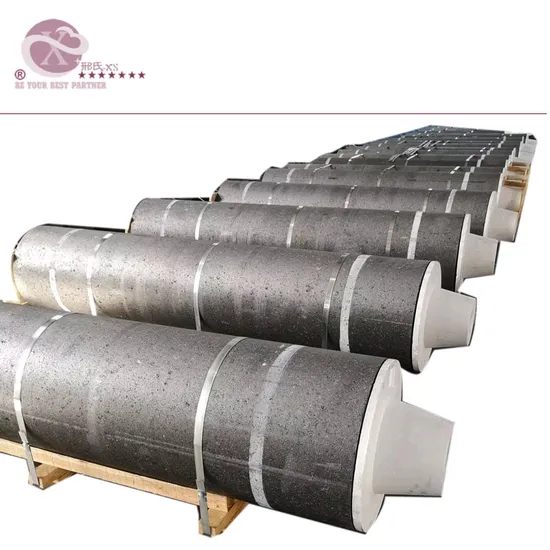

Products Show :
Packaging Details :in wooden case or package as customer's order
Usage: An increasing proportion of global steel is made using electric arc furnaces, and the electric arc furnace itself is getting more efficient and making more steel per tonne of electrode
WE have a large customers from international market .

Accept Third Party Inspection .
Best Price !!
Sales :
Welcome your inquiry !!! - Online Inquiry ,you will got an products Brochure and Company Introduction within 12 Hours !!
XINGSHI GRAPHITE ELECTRODE FACTORY , FACTORY LOCATED IN Shan'xi Province , Two Factory Site , One is Block , one is Extruded !!
More information , welcome :
-- Furnace Type
-- Furnace Capacity
-- Electrode Diameter and Length
-- Graphite Electrode Specification and Grade ( UHP , HP ,RP OR SHP )
-- Trial Order ? Min order quantity ?
Answer within 24 HOURS - https://xingshi2019.en.made-in-china.com/contact-info.html
