Mg-X12 Automatic Paper Cup Machine Making in China Product Line

Product Description

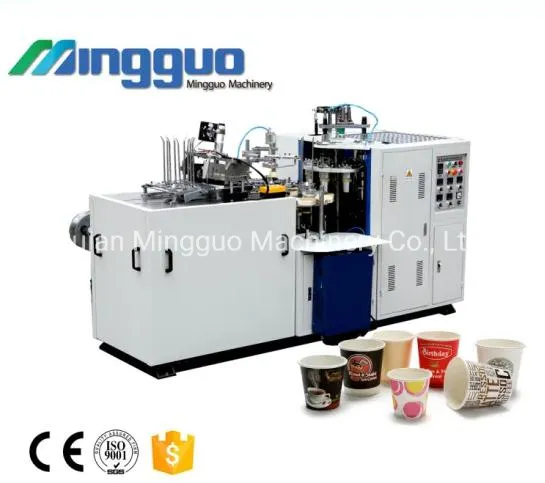

X12 Ultrasonic Paper Cup Forming Machine
Product Introduction
MG-X12 ultrasonic paper cup forming machine equipped with photoelectric sensor, micro frequency converter, precise cup counter and other processing devices, this multistation automatic cup former independently finishes a series of cup manufacturing steps, like feeding, sealing, bottom cutting, etc.
According to the market survey, it has often been chosen as the ideal choice for making the drink cup, especially for single/double PE coated cups. This kind of cup maker will offer you confortable drinking. It is suitable for coffee, beverage, tea, ice cream and hot drink cups with high performance.
Machine Characteristics
1. Ultrasonic is used to do sealing for fastness and high strength. It's capable to make single and double PE coated cup.
2. It is this stretchable knife that provides good sealing between cup bottom and wall and decreases water leakage rate.
3. The modren cam and chain transmission type is more durable and run stably. It has become hot in recent years.
4. Traditional gearbox and chain type is relatively economical.
5. Different from ordinary paper cup machine, this whole body uses the fine steel structure, in the case of high-speed operation is more compact, solid and it can make handle paper cups.
Machine Details
Technical Specification

Model	MG-X12
Cups Specifications	2-12oz
Paper Specfications	150-350GSM single/double PE coated paper
Production Capacity	40-60pcs/min
Voltage	220V/380V 50HZ
Total Power	4.5KW
Total Weight	1500KG
Dimensions	2800*1400*1700mm(L*W*H)
Shipping Details	By sea/air transportation according to customer need
Paper Cup Usage	Tea cups, coffee cups, ice cream cups, milk cups, yogurt cups, tasting cups etc.
Optional Equipmen	Paper cup inspection machine, Paper lid forming machine, Paper cup packaging machine, Paper straw forming machine

Samples
Pre-sales and After-sales Service
Pre-sales service a.Provide products and related consultation. b.Free provision of paper cup samples (excluding freight). c.Customers can visit the factory in person to visit the machine. After-sales service: a.Paper cup machine warranty: 1 year b.We can dispatch technologists to buyer's factory, guiding installation, adjustment for a period. c.We supply the consumable spare parts for free for one year use.
FAQ:
1:Are you a manufacturer?
Yes,We have been in making paper cup machine for nearly 7 years. We have our own workshop,and nearly 60 workers here.
2:What should I let you know before getting a relatively accurate quotation?
a.Cup size(Top diameter, Bottom diameter, Height).
b.Paper specification(GSM of single/double PE coated paper).
c.It is best to provide samples and pictures of the cup.
3:When the machine have problems,how you can solve it?
a.We have 1 year warranty, we can provide consumable spare parts for free
b.All machine will be installed and test well in factory,will test machine for one week.
c.If the machine has a technical problem, then you can send video and photo to us, we will develop solutions for you within 12 hours.
d.If the machine problem, you can not solve it by yourself, then we can dispatch the engineer to your factory. 4:Can we make different size in one machine?
You can make different size in one machine,but need change mold.

5:What about the payment term?
Mostly 30%T/T in advanced,the rest need paid before shipping.
6:What is your delivery time?
Within 40-50 days after receipt of advance payment and cup sample.If your order is urgent, please communicate with us.
