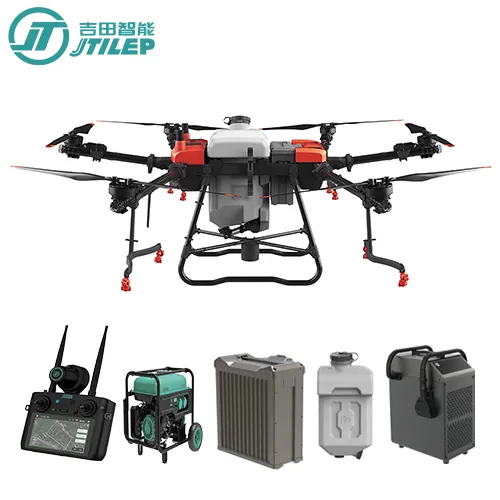

Sprayer Uav Drone/Thermal Fogging Drones for Pest Control Jt40

Product Description

Product Description
Product Parameters

Spray system	Medicine box volume	40L
	Nozzle type	High pressure fan nozzle
	Total number of nozzles	12
	Maximum spray width	12m
	Atomized particle size	100-300μm
	Single water pump flow	8L/min
	Number of water pumps	2
	Medicine box/seed box material	LLDPE
Spreading system	Spreading component model	HM302
	Spreading box volume	50L
	Maximum load	43kg
	Support particle diameter	0.5 - 6mm dry solid particles
	Maximum speed of turntable	1100r/min
	sowing spread	7-9m

Detailed Photos
SMART BATTERY
The battery has 18 series cells, the maximum discharge currentreaches 240A, and the charging and discharging ports are the
same.
Integrate GNSS positioning, GNSS heading, IMU barometer, andmagnetometer to perform integrated navigation calculations, outputattitude, speed, position, angular velocity, etc., and perform closed-loopcontrol of UAV attitude and position.


CHARGER
JT40 charger can provide different charging modes and corresponding algorithmsaccording to the characteristics of the battery to achieve the best charging effect. lt has a large-screen display that can monitor battery voltage, current, power, and battery power in real time. t is equippedwith a data interface to upgrade and export data according to needs. lt is equipped with power adjustment buttons to adjustthe power according to different environments and different needs.
Gasoline Generator
JT40 produces a high-performance and high-power generator set that meets reliability, stability, and convenience. ts equipped with an energy-saving fuel system that precisely controls injection pressure, saves fuel and reduces emissionst the same time. Dual output power generation American standard socket 230V/8500Wt National standard socket230V/2300WMaximum 8.5KW AC output, rated power 8KW.1500 meters above seaevel without power reduction.The 38L super large fuel tank is equippedwith handrails and rolling wheels as standard for easy transition.
AVIONICS MODULE
The avionics system is the core component of the AV, which carries the communication with the outside.the behavior decision-making of the UAV, and the travel control of the airframe (Control of operating partsmanagement of other parts of the fuselage, etc. Integrate GNSS positioning, GNSS heading, lMU ar pressure, and magnetometer to perform integratednavigation calculations, output attitude, speed, position, angular velocity, etc, and perform closed-loopcontrol of UAV attitude and position.

SPREADING BOX
JT40 series spreading box, the box body is integrally formed with anew technology, and the super large filling port is convenient and fastFeeding.new spreading disc, high torque spreading more smoothly and evenly
RADAR
Radar antenna rotates 360° with the motor, which can realize the 360horizontally and 120 vertically Strong anti-interference ability, quick reaction, can quickly measure thedistance, speed, Angle and other information of the target, can detectand track multiple targets, effectively achieve obstacle avoidance andimitation operation
REMOTE
JT40 is a drone remote control independently developed by JITIAN Technology using advanced picture transmission and data transmission communicationtechnology; The maximum communication distance is 2 km5.5-inch touch screen; The FPV screen is displayed on the screen in real time Built-in Android system, which can run UAV App for operationplanning and real-time viewing of aircraft status; Replaceable battery Support to install and run ther third-party apps; Supports Bluetooth, USB connection to external devices;Support a variety of quick and convenient auxiliary functions (quick screen capture, screen recordinq, etc.)
Portable Mobile Base Station
portable mobile base station obtains the coordinates of measuring points through the Real-TimeKinematic, which is the combination of GNSS measurement technology and data transmission technology.it has the characteristics of high positioning accuracy, high automation and integration. lt is mainly used forhigh-precision navigation and positioning operations, and can provide centimeter-level positioning services. Built-in 4G, Wif module Three-axis acceleration sensor 3KM Stabl transmissionrange:3KMIP67 Water Proof
customer photos

Our Advantages


Company Profile
Jitian lntelligent focuses on the intelligent agriculture, and is committed to the research & developthe agricultural drones, the automatic driving systems of agricultural machinery, and the intelligentagricultural systems. Xuzhou Jitian lntelligent Equipment Co., Ltd., headquartered in Xuzhou, JiangsuProvince, has more than 400 employees, including more than 190 R&D talents, accounting for about47% of the total number of employees. At the same time, it has in-depth and extensive scientific research and technical cooperation with Harbin Institute of
Technology.Jitian products cover more than 30 countries around the world, radiate 28,000+ overseas enterprises.manage 10W+ sets of agricultural machinery equipment, and have a total detection area of 450 millionmu (74 milion acres).Agricultural machinery intelligent detection terminals have a market share ofmore than 70% in China.After years of efforts, Jitian lntelligent has continuously expanded its servicearea and qradually has the ability to provide agricultural information services covering the whole China.
