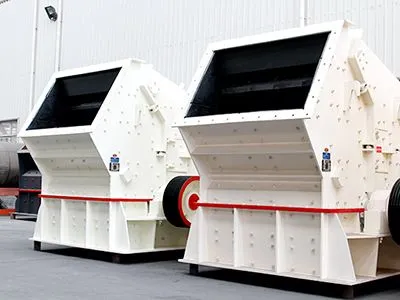

3-200tph Professional Horizontal Primary Tertiary Impact Crusher

Product Description

Brief introduction of impact crusher The pf product impact crusher is acknowledged in this field for a long time and gives smooth running resulting power economy and higher efficiency. Jinma brand stone crusher is mainly used to crush many kinds of large, medium, small materials such as rock or stone whose side length is less than 500mm, and compression resistance less than 350Mpa. It is widely used in hydroelectricity, highway, artificial rock, stone and sand, building material, etc.
Working principle of impact crusher
This impact crusher machine crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support.
Applications of impact crusher
Impact crusher is widely applied in mining, transportation, energy, construction and chemical industry. Impact breaking equipments are ideal choice for crushing and screening. This PF series stone crusher features reasonable structure, high productivity, easy operation and maintenance and safe performance.
Advantages of impact crusher
1)Excellent cubic final products
2)Special structure
3)Non-key connection
4)High chrome hammer
5)Easy adjustment, high reduction ration

Technical Parameters of impact crusher

Model	rotor size (mm)	Feed opening (mm)	Max. feed size (mm)	Capacity (t/h)	Power (kw)	Weight (T)
PF-0607	Φ644×740	320×730	100	5-15	30	4
PF-0807	Φ850×700	400×730	200	10-25	45	8
PF-1007	Φ1000×700	400×730	250	25-45	37-55	9.2
PF-1008	Φ1000×800	400×830	260	30-50	55-75	10.5
PF-1010	Φ1000×1050	400×1080	300	50-80	75-90	14
PF-1210	Φ1250×1050	400×1080	300	70-120	110-132	17
PF-1214	Φ1250×1400	400×1430	300	130-180	132-180	21
PF-1315	Φ1320×1500	860×1520	450	160-250	180-250	25
PF-1320	Φ1320×2000	860×2030	500	160-300	300-375	30

Working sites of impact crusher
Packing&DeliveryPackaging Details: We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements. Delivery Time: We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
Detailed parts of impact crusher
