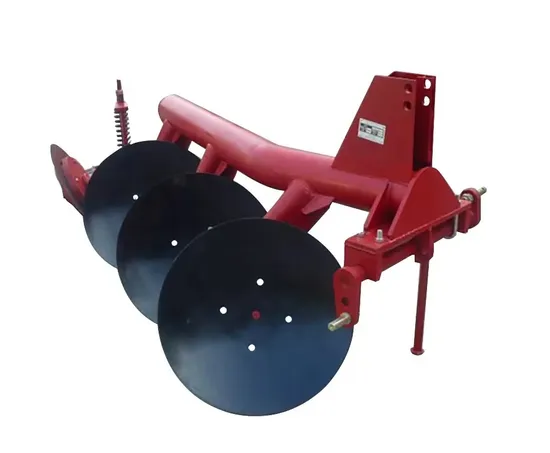

1lyx Series Heavy-Duty Pipe Disc Plough (China DISC PLOW MANUFACTURER)

Product Description

1lyx Series Heavy-Duty Pipe Disc Plough (China DISC PLOW MANUFACTURER)
Product introduction:
1LYX series pipe disc plough are mainly used for tillage on dry cultivated or fallow land, especially on high yield 'manure land, wheat and rice stubble fields. They have the characteristics of small resistance and easy operation etc. Pipe disc plough has good passability and penetration, complete inversion and coverage, small draft resistance, easy operation and adjustment. All these satisfy the agricultural requirements on fine cultivation.
The frame of disc plough is a single round pipe, it is easy for the farmer to assemble. And it's strong. Its plowing width and depth all can be adjusted, each plough body's highly can be regulated. Adjust the working width can be adjusted by the suspension. They all can be matched with the wheeled tractors and crawler tractors.
Technical parameters:

Model	1LYX-230	1LYX-330	1LYX-430	1LYX-530
Overall dimension(length×width×height(mm)	1650×1150×1200	2300×1440×1200	2950×1730×1200	3600×2020×1200
Working depth (mm)	250	250	250	250
Working width (mm)	600	900	1200	1500
No. Of discs	2	3	4	5
Size of disc (mm)	660×6	660×6	660×6	660×6
Weight (kg)	360	450	540	640
Matched power (HP)	40~50	55~80	70~100	90~120
Linkage	Tree point suspension type
